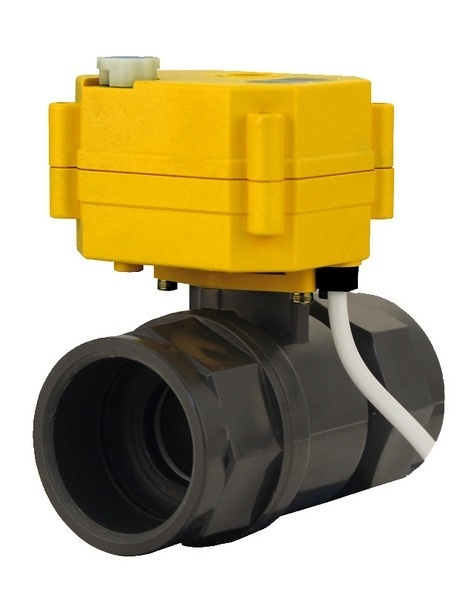

12V electric valve for emptying the grey water tank, side mounting

Description

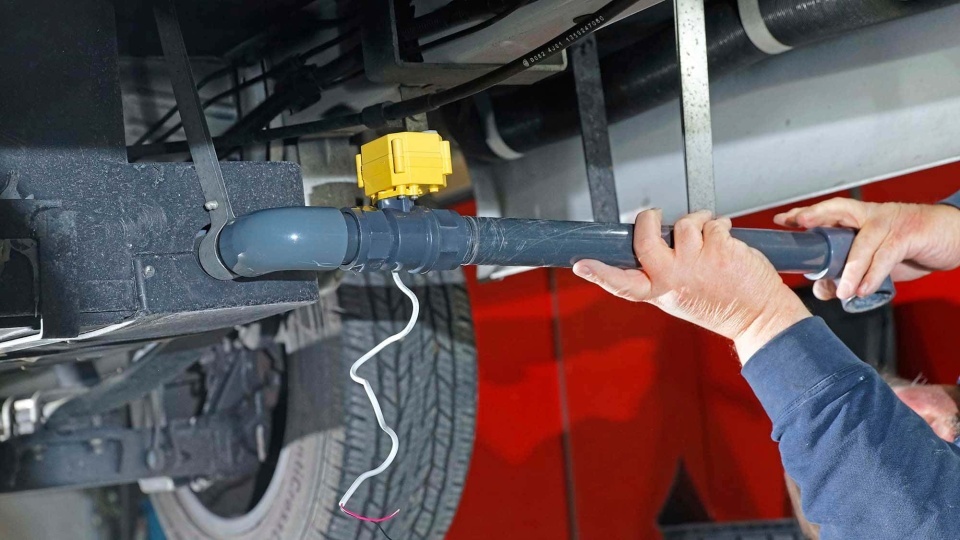

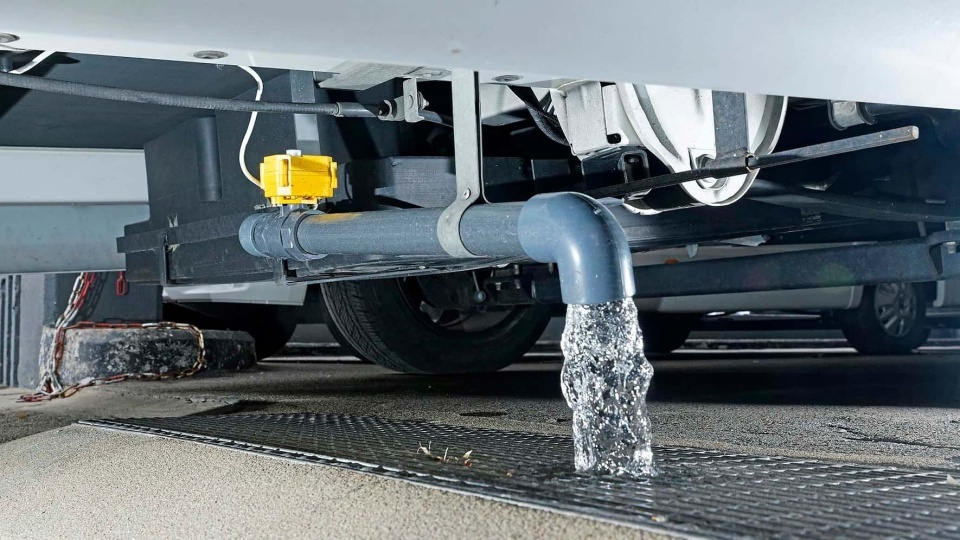

Electric valve for emptying the grey water tank. It is operated by a switch. This valve attaches to the vehicle chassis and is operated by a switch. The drain water path can be extended by attaching 40mm Lilie pipes/hoses in the desired direction. The valve is fitted with gaskets so that the pipes are fitted by simply inserting them without the need for gluing.

The switch is not included and can be purchased separately here

The servomotor has been specially developed for the opening and closing mechanism of the valve and is fitted with overload protection. A sensor detects any debris blocking the closing and automatically stops the motor to protect it. The system can be operated manually in an emergency (e.g. power failure).

Specifications:

• power supply: 12V

• consumption: 500 mA max

• attached to chassis

• max closing/opening time: 5 sec
• optimum operating temperature: 0º C - 70º C
• dimensions: 100×65×125 mm
• weight: 262 g
• electric cable: 0,8 m
