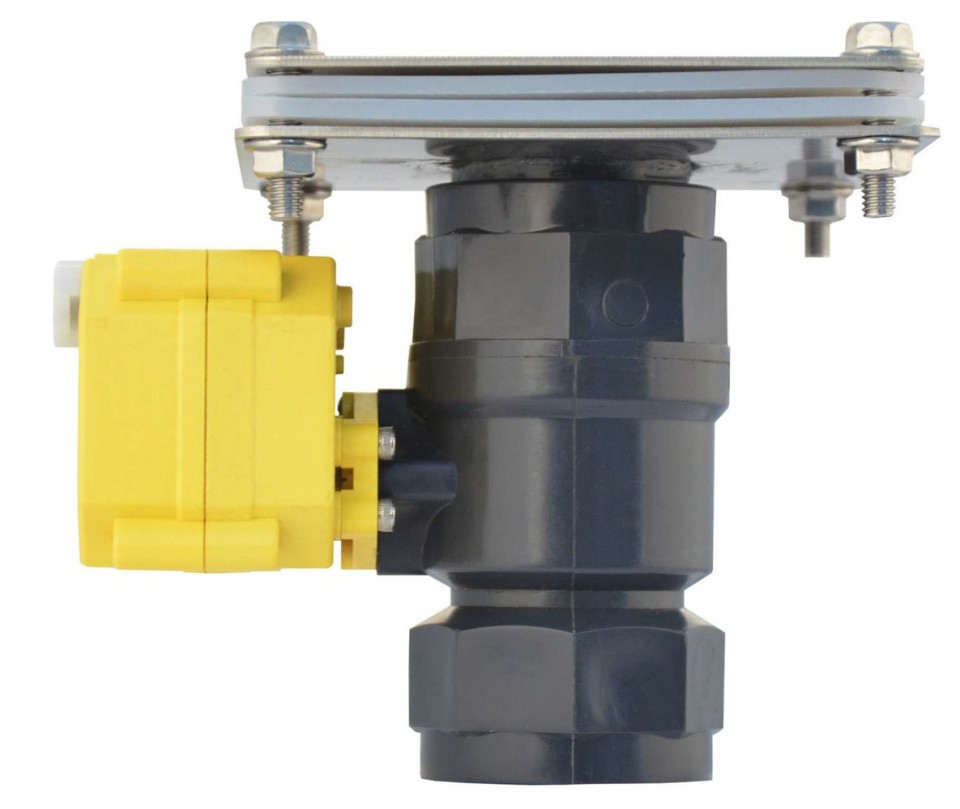

12V electric valve for emptying the grey water tank, tank mounted

Description

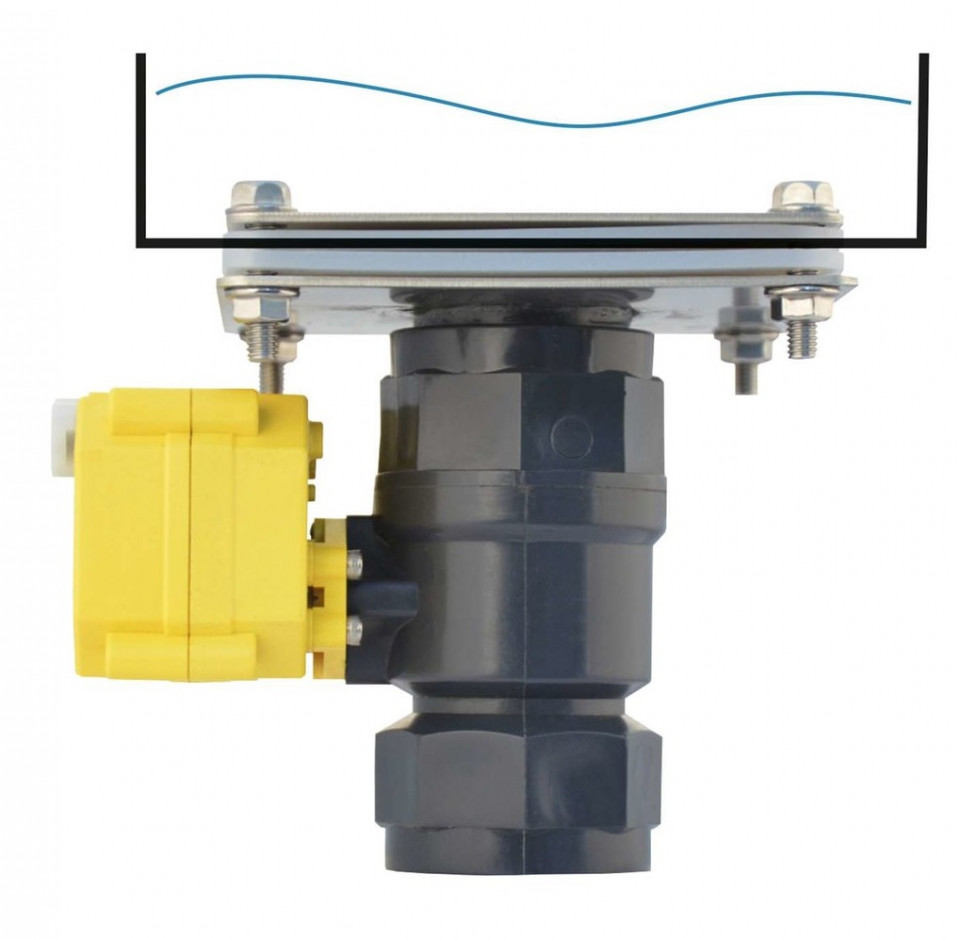

Electric valve for emptying the grey water tank. Attached to the tank and operated by a switch. This version is mounted under the tank (check that there is enough space between the tank and the ground).

The servomotor has been specially developed for the opening and closing mechanism of the valve and is fitted with overload protection. A sensor detects any debris blocking the closure and automatically stops the motor to protect it. The system can be operated manually in an emergency (e.g. in the event of a power failure).

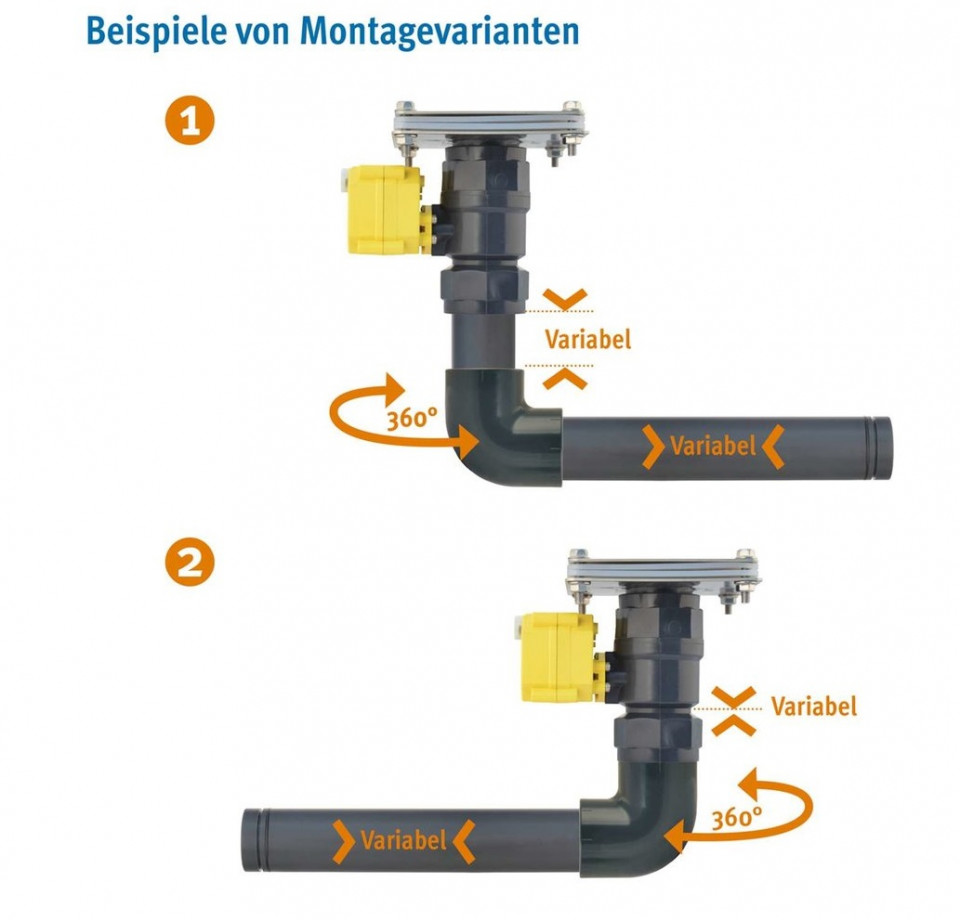

The water flow path can be extended by fitting additional 40 mm pipes.

Specifications:

• power supply: 12V

• consumption: 10A

• mounting under the tank

• max closing/opening time: 5 sec
• optimal operating temperature: 0º C - 70º C
• length: 11 cm
