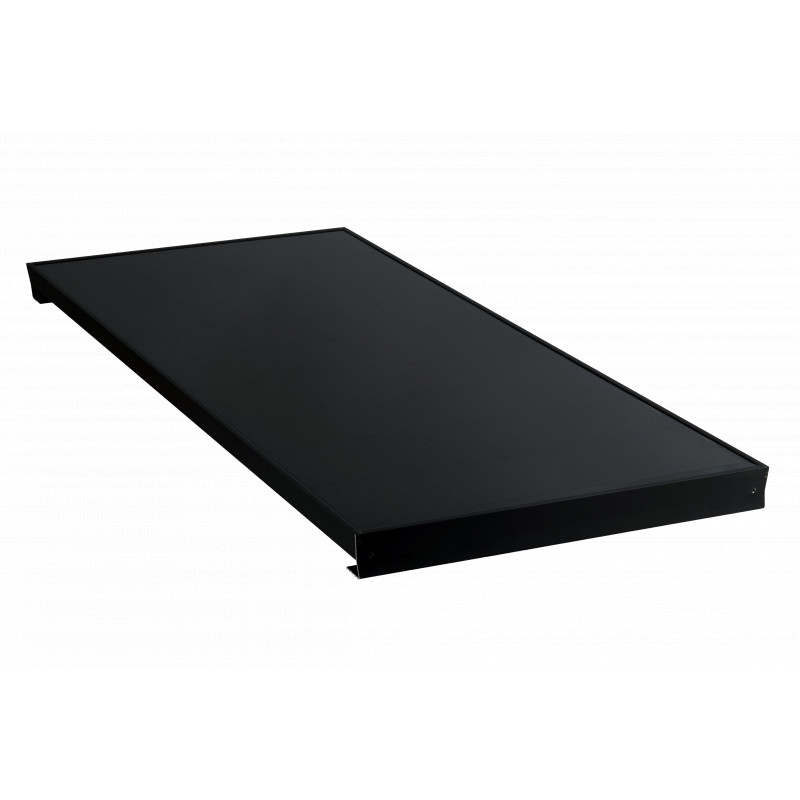

190W monocrystalline photovoltaic panel, PERC technology with integrated clamping profiles

Description

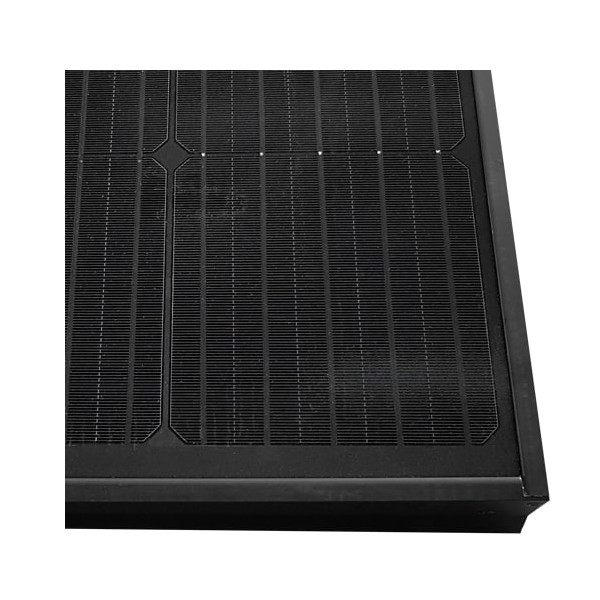

Monocrystalline solar panel "All black" 190W, PERC technology with integrated clamping profiles.

Advantages:
- Compact design: size of 177.5 x 51.5 cm specially developed to make efficient use of roof space on caravan or motorhome roofs

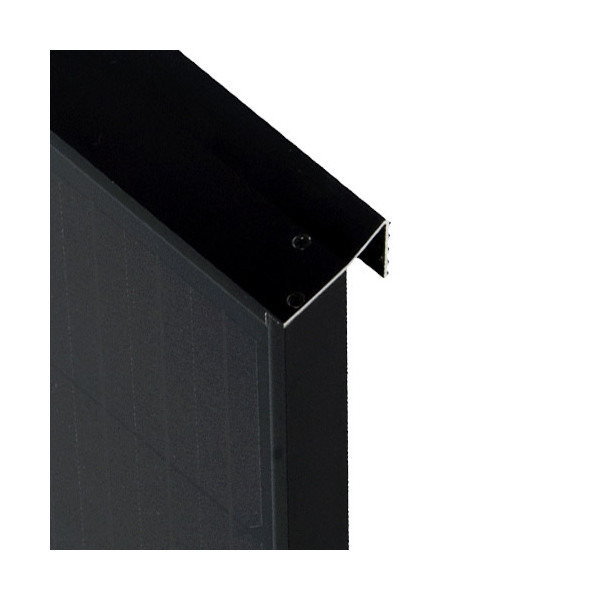

- Integrated clamping profiles: increases safety by eliminating a sticking and saves space (the use of separate profiles requires space in addition to the size of the panel)
- PERC technology: increases the performance of photovoltaic panels that perform better than conventional panels in both unfavourable weather and high temperature conditions. PERC technology improves efficiency by adding a thin layer of SiO2 or Al2O3 behind a traditional solar cell.
- Panel includes 5.5m controller connection cable

Attaches to the ceiling of caravans/caravans by gluing the profiles that are a component part of the panel, thus eliminating the risk of detachment while driving. It is recommended to glue on the caravan or motorhome with "Dekasyl MS-5" or Sikaflex 554 adhesive.

Panel specifications:

• Maximum Rated Power (Pmax): 190 W
• Maximum voltage (volts): 24,48 V
• Max Current (Imp): 10,1 A
• Rated Current (Amps): 9,59 A
• Rated voltage (volts): 20,8 V
• Dimensions: (L x W x H): 177.5 x 51.5 x 5 cm
• Weight: 13,8 kg
• Manufacturer warranty: 10 years at 80% capacity

ATTENTION !!! Due to the size, this product has a fixed transport charge of 20 RON
