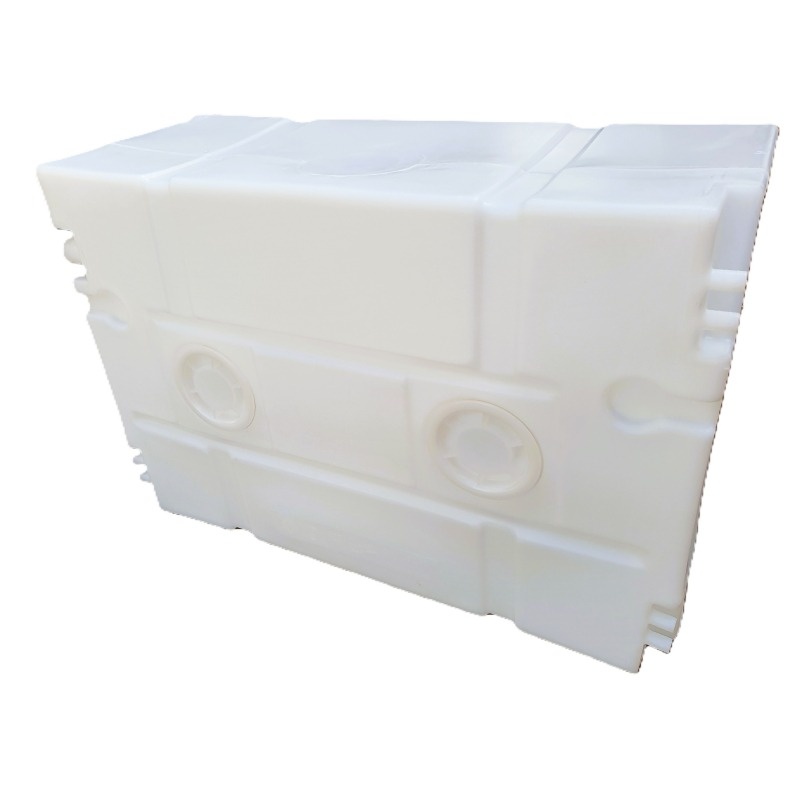

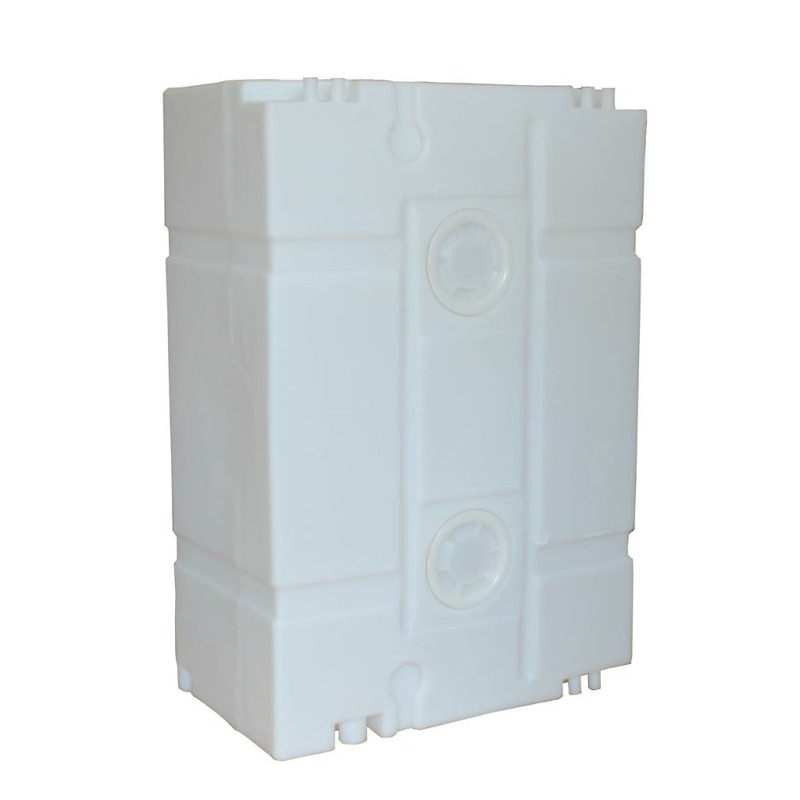

200l tank for clean or grey water with preformed filling spout

Description

Tank for clean or grey water with 2 cleaning spouts Ø12 cm, 200l. It is provided with 4 preformed filling spouts (requires puncturing) Ø 19 mm and 2 of Ø 50 mm (requires puncturing) positioned in different places on the tank.

The tank is made of impact resistant, food grade polythene. It can be mounted inside or outside the vehicle.

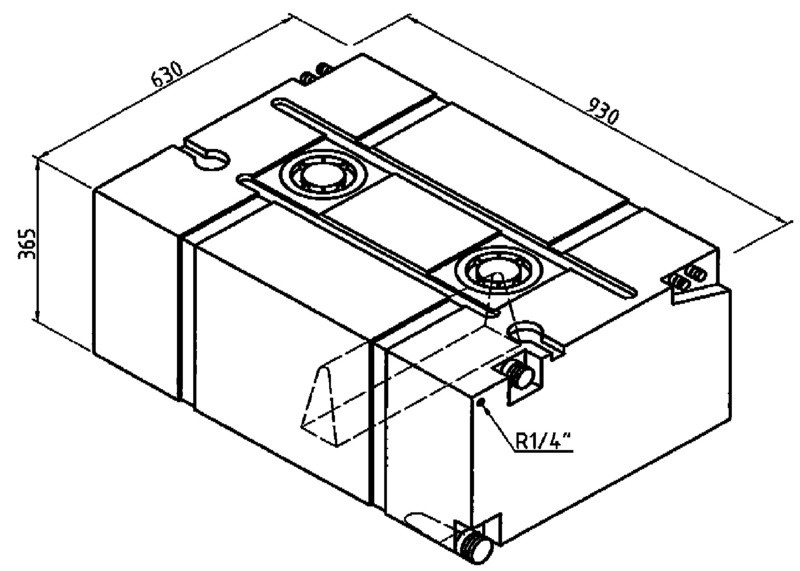

Dimensions:

93 x 63 x 36.5 cm

ATTENTION !!! Due to the special dimensions and/or gauge this item has a fixed delivery charge of 25 RON

The filling of the tank is generally done through a filling nozzle mounted on the outside of the vehicle and connected to the water tank through a flexible hose with a diameter of 40mm. The flexible hose can be attached to the water tank directly to the pre-formed filler spout or by making a new filler spout using the desired supply rods.

The water is extracted from the tank using a submersible or external water pump using a 10 or 12mm internal diameter hose. The hose is attached to the water tank using one of the following stut variants:

You can order the supply nozzles here

The hose nozzles, connectors and other accessories needed to connect to the water supply can be found here

The filling of the tank is generally done through a filling nozzle mounted on the outside of the vehicle and connected to the water tank through a 40mm diameter flexible hose. The flexible hose is attached to the water tank either to the filling spout already pre-formed from the factory or by making a new filling spout using the desired supply stutings which can be ordered here:

Water tank Ø 40 mm with watertight cover

Feeding tube for water tanks Ø 40 mm

90° elbow for water tanks Ø 40 mm

The water is extracted from the tank using a submersible or external water pump using a 10 or 12mm internal diameter hose. The hose is attached to the water tank using one of the following types of water tank stut:

L-shaped water tank hose

Straight pole for water tank
