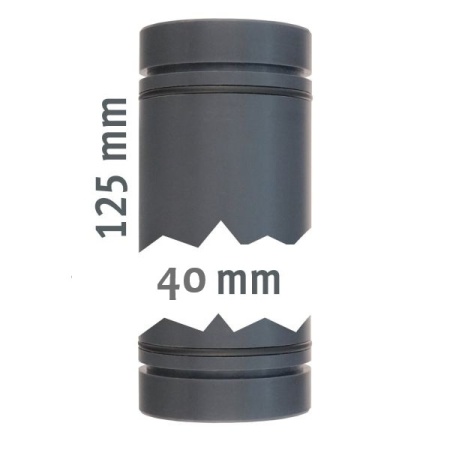

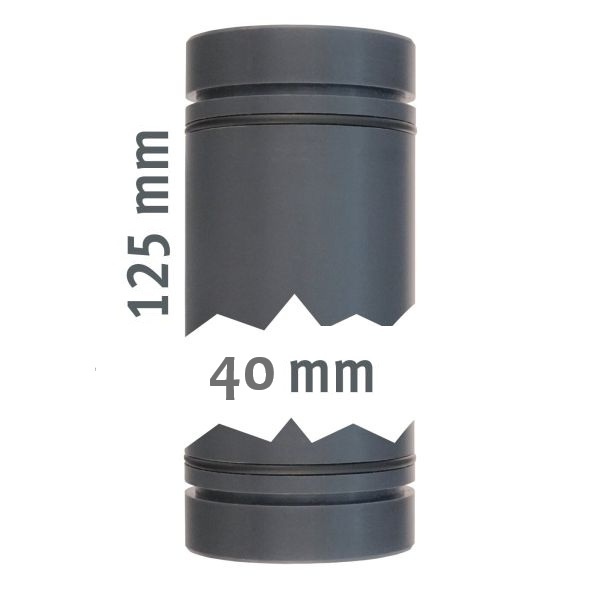

40 mm diameter pipe with O-rings on both sides

Description

The LILIE GrauGELB® 40 mm LILIE GrauGELB® 40 mm double O-ring coupling system connects pipes, ball valves and couplings quickly, simply, safely and tightly.

• O-Ring 1 is fixed in the outer grooves of the pipe ends.

• O-Ring 2 is seated in the inner grooves of the valve body and couplings.

When inserting the pipe end, the two O-rings engage in the complementary groove of the other element. The double O-ring seals and secures the connection, while maintaining flexibility for later adjustments. Unlike regular soldering, the connection can be undone and reassembled if necessary, thus also avoiding stress cracks.

All featured connectors can be fitted to the pipe just as easily.

Features:

• high flow

• robust and durable

• hot water resistant

• Diameter: 40 mm

• Length: 125 mm

• Can be connected to the Lilie electric ball valve system

• Material: plastic

• flexible

• both ends fitted with O-ring

• mounting on electric water drains:

  • side mounted valve
  • under tank valve
  • side mounted valve with drain
