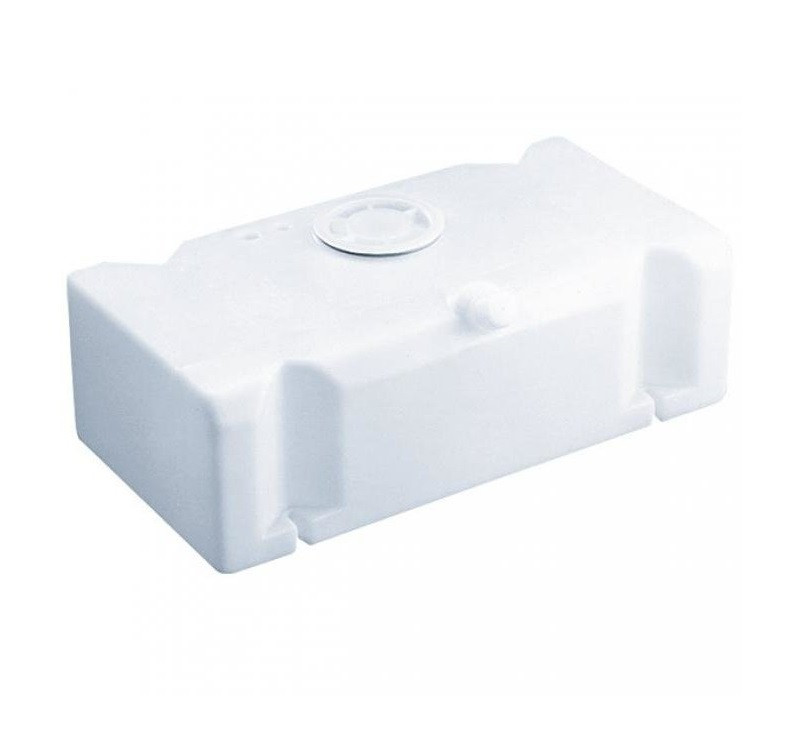

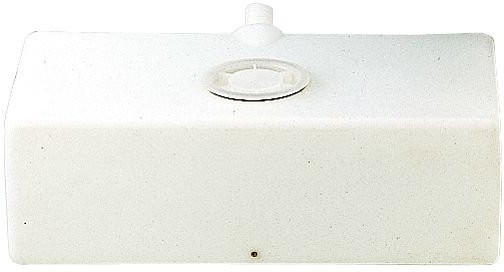

45l tank for clean or grey water with preformed filling spout

Description

Tank for clean or grey water with Ø 12 cm, 45l cleaning spout and Ø 40 mm preformed filling spout. The filling spout (which is sealed and must be made if it is to be used) can be fitted with a Ø 4 cm spiral hose fixed with a collar.

The tank is made of food-grade, impact-resistant polythene. It can be mounted inside or outside the vehicle. It comes with 4 lugs for screw fixing (not included)

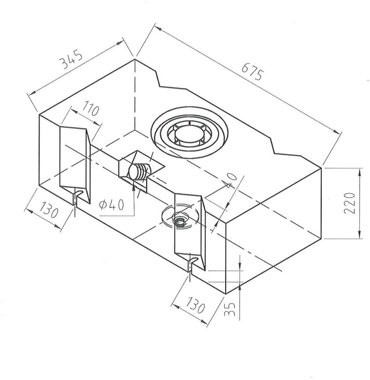

Dimensions:

67,5 x 34,5 x 25,5 cm

Filling of the water tank is generally done through a filling nozzle mounted on the outside of the vehicle and connected to the water tank through a 40mm diameter flexible hose. The flexible hose can be attached to the water tank directly to the pre-formed filler spout or by making a new filler spout using the desired supply rods.

The water is extracted from the tank using a submersible or external water pump using a 10 or 12mm internal diameter hose. The hose is attached to the water tank using one of the following stut variants:
