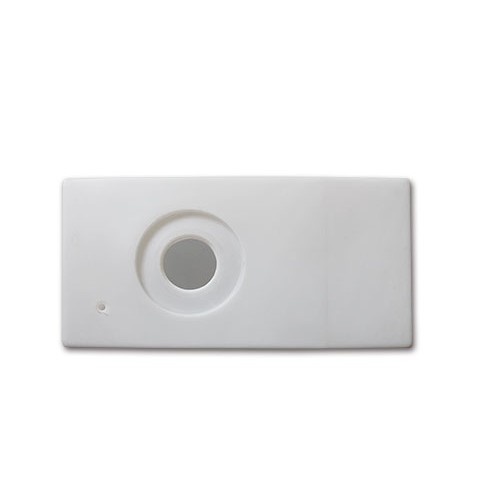

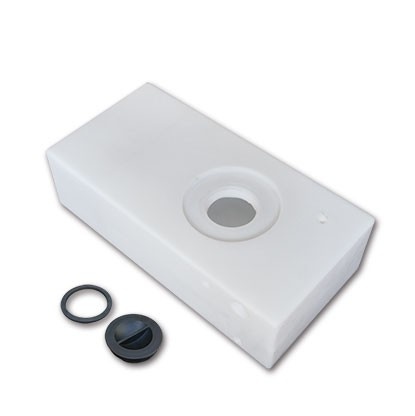

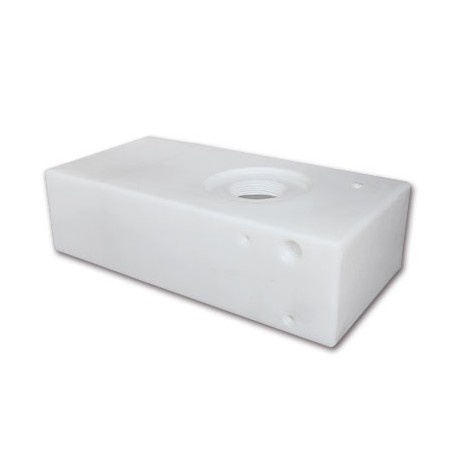

64l tank for clean or grey water with Ø11 cm outlet

Description

Tank for clean or grey water with a Ø11 cm, 64l access port. The tank is made of impact resistant polyethylene. Can be mounted inside or outside the vehicle.

Specifications:

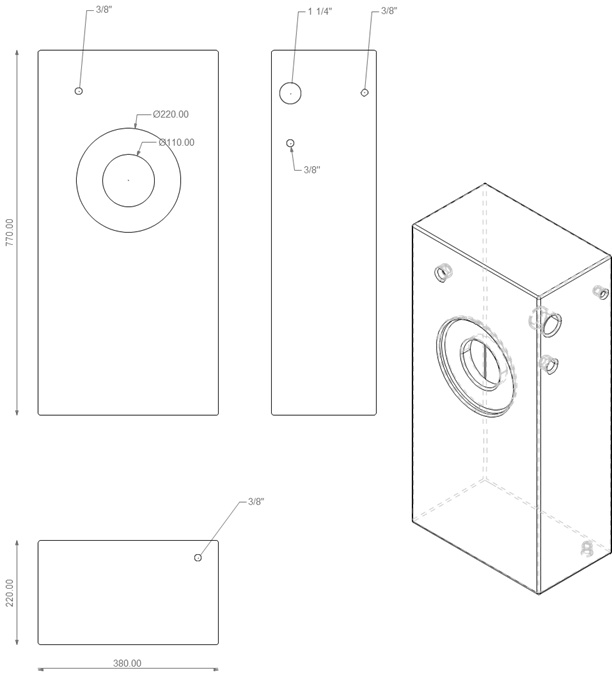

Dimensions: 38 x 77 x 22 cm

Equipped with: 4 preformed 3/8" threaded holes and 1 1/4" threaded hole (for 40 mm hose)

The filling of the tank is generally done through a filling nozzle mounted on the outside of the vehicle and connected to the water tank through a 40 mm diameter flexible hose. The flexible hose can be attached to the water tank directly to the pre-formed filler spout or by making a new filler spout using the desired supply stubs.

The water is extracted from the tank using a submersible or external water pump using a 10 or 12mm internal diameter hose. The hose is attached to the water tank using one of the following stut variants:

You can order the supply nozzles here

You can find the hose nozzles, connectors and other accessories needed to connect to the water supply here
