90l water tank with installation over the rear wall in motorhome

Description

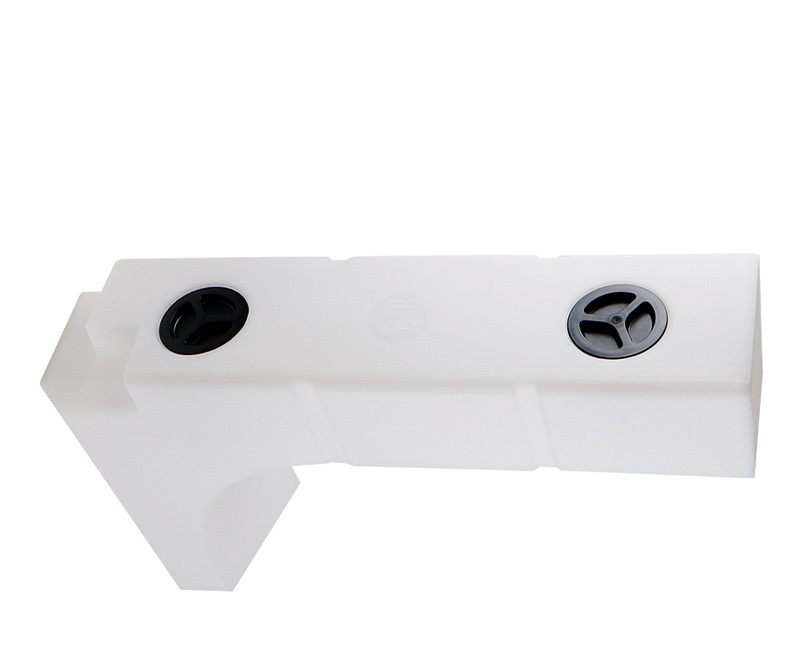

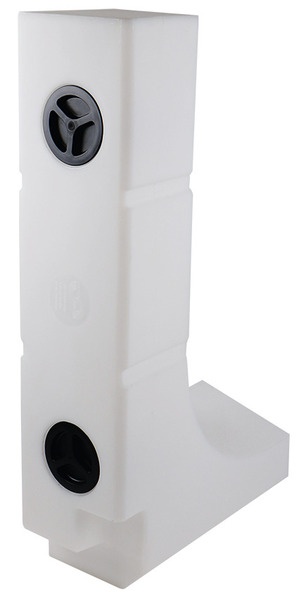

90l water tank for installation over the rear wheel in the camper. The shape of the tank is ideal for installation above the wheel inside the vehicle on the passenger side.

Specifications:

• Dimensions: 1150 x 645 x 262mm
• 2 manholes with lid Ø130mm
• 1 pre-moulded filling opening Ø40 mm on the upper side (it is closed, requires cutting to be used)
• 1 drain hole in the lower part Ø3/4" inch (it is closed, needs cutting to be used)

ATTENTION !!! Due to the special dimensions and/or gauge this item has a fixed delivery charge of 25 RON

The filling of the tank is generally done through a filling nozzle mounted on the outside of the vehicle and connected to the water tank through a 40mm diameter flexible hose. The flexible hose is attached to the water tank either to the pre-formed filler spout or by making a new filler spout and using the desired supply connectors which can be ordered here:

Water tank Ø 40 mm with watertight cover

Feeding tube for water tanks Ø 40 mm

90° elbow for water tanks Ø 40 mm

The water is extracted from the tank using a submersible or external water pump using a 10 or 12 mm internal diameter hose. The hose is attached to the water tank using one of the following types of water tank stut:

L-shaped water tank hose

Straight pole for water tank
