AL-KO Big Foot 20 × 18 cm (set of 4)

Description

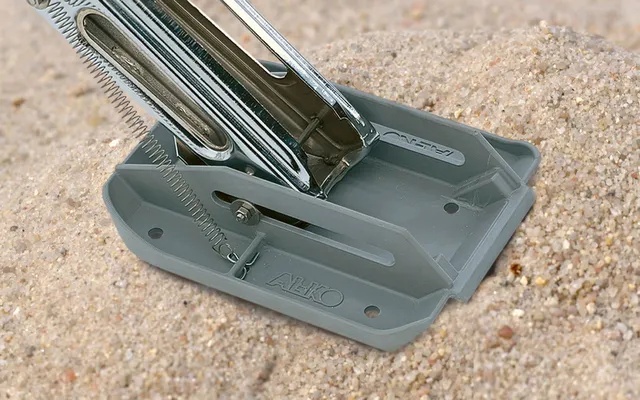

With its large support surface (200 × 180 mm) and transverse ribs, the AL-KO Big Foot prevents the support legs from slipping or sinking and ensures absolutely secure stability of the caravan. The support leg has a maximum static load capacity of 1250 kg.

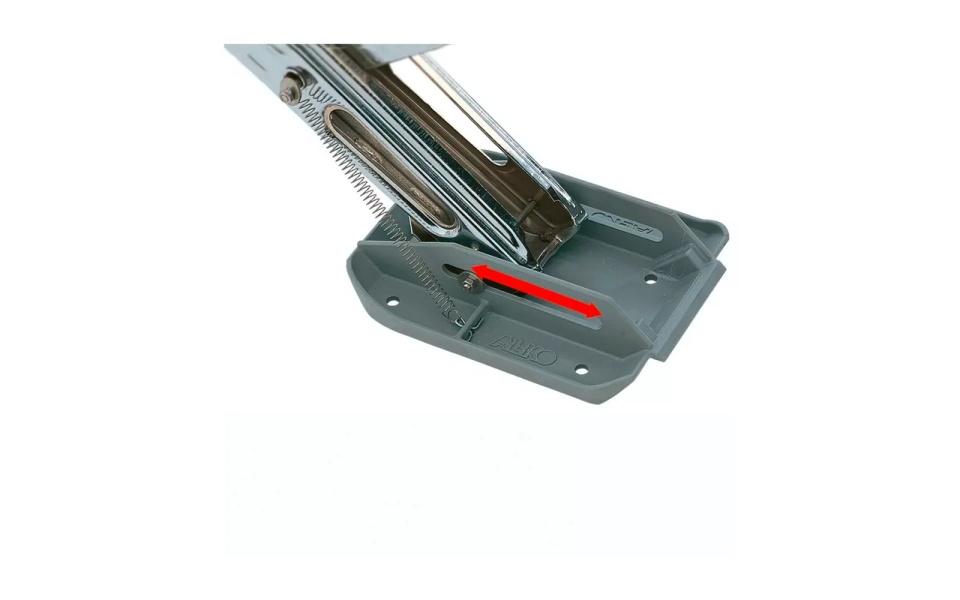

Thanks to the elongated slot guide, the support slides on the Big Foot.
"Big Foot" does not have to be pushed into the ground, as with conventional systems, and the support can be operated with less effort.
Takes up little space when walking thanks to the compact, spring-assisted fastening on the support (provides sufficient ground clearance).
Excellent stability! Large support surface (200 × 180 mm) with cross ribs.

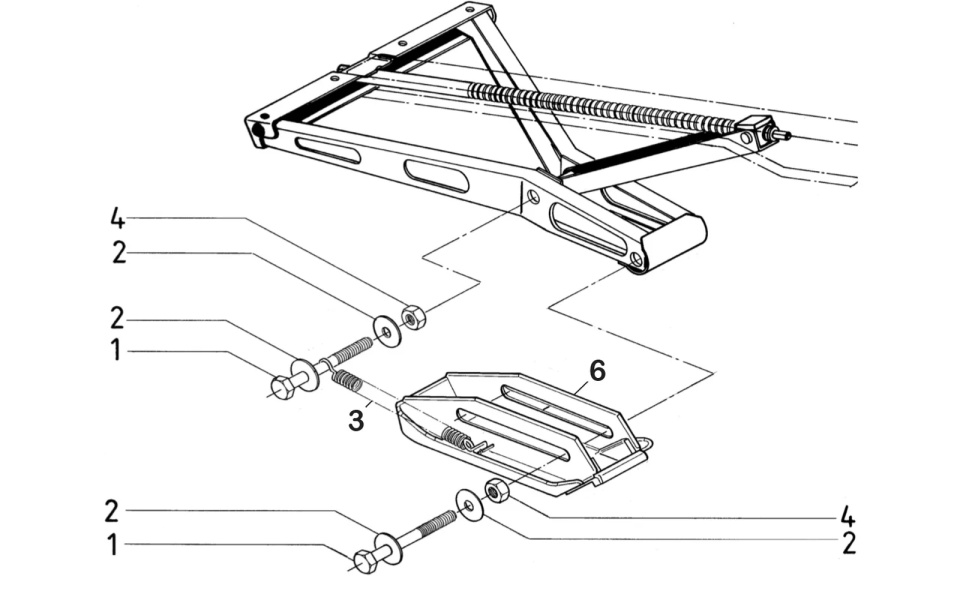

"Big Foot includes mounting parts and instructions.

Details

Reliable stability
When travelling, the AL-KO Big Foot stays fixed on the spring-assisted support.

Functional
The Big Foot is mounted on AL-KO Stabilform and Premium AL-KO supports.
For models manufactured since 2001, the Stabilform brackets already have the necessary mounting holes.
For models manufactured before 2000, the holes must be drilled according to the instructions.

Can be retro-fitted to caravans with AL-KO chassis and Stabilform support.
