AL-KO Mammut M20 Mammut AL-KO Mover - for a single axis

Description

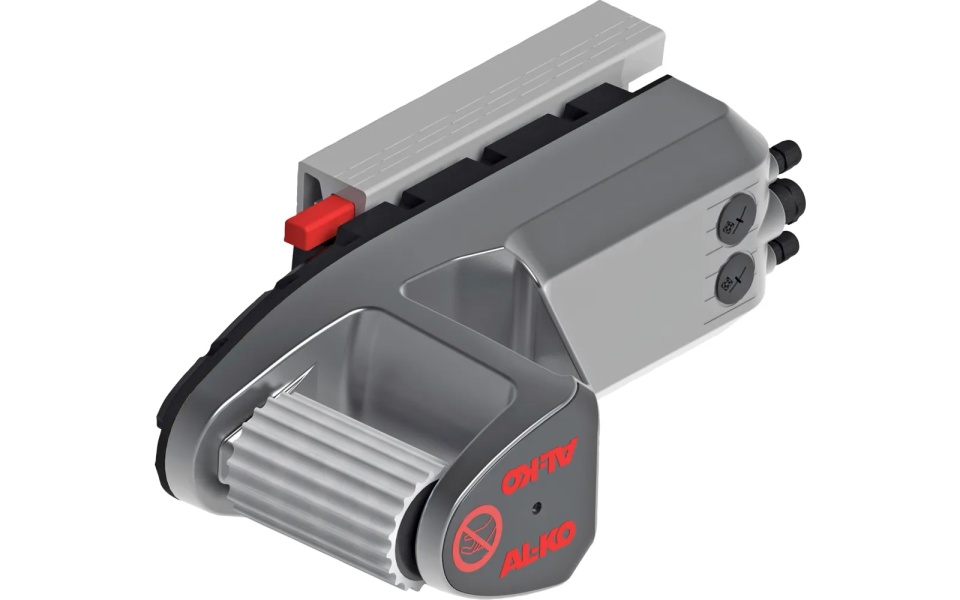

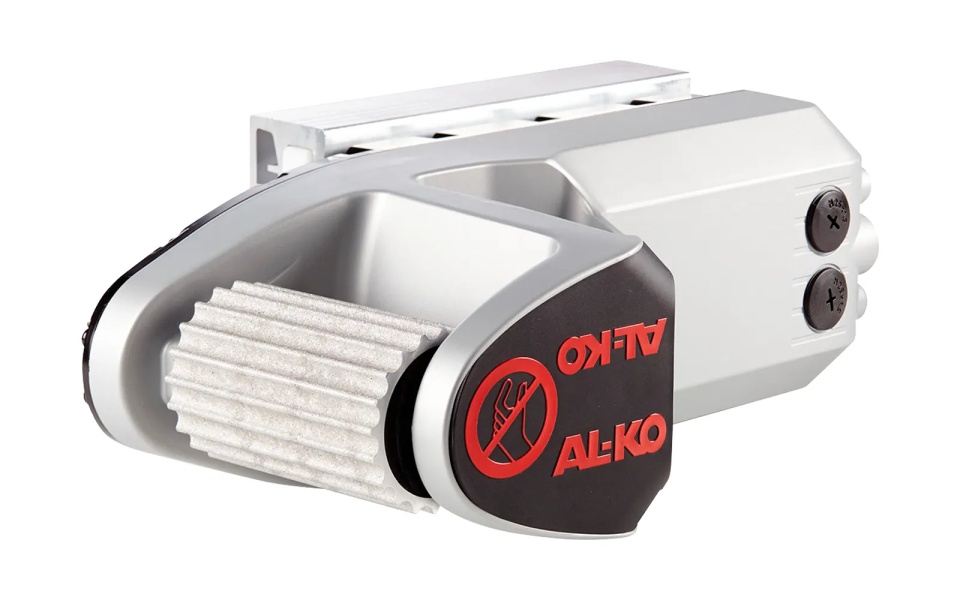

• With AL-KO MAMMUT's award-winning AL-KO MAMMUT multi manoeuvring system, you can move and control your caravan or trailer easily and precisely, even alone and in remote terrain. Manoeuvring in very tight spaces is no problem, as is overcoming obstacles of up to 4 cm or slopes of up to 28%. The MAMMUT system accelerates continuously, without jerks or interruptions. The control electronics are seamlessly integrated in the robust aluminium drive units and are therefore protected against damage and moisture (IP65). Thanks to an optimised housing, heat dissipation is improved compared to the previous model. The extended operating time allows longer operating times even at high temperatures and high loads.

  Details

  • Powerful system - easily overcomes obstacles up to 4 cm

  • Maximum ground clearance due to extremely low construction

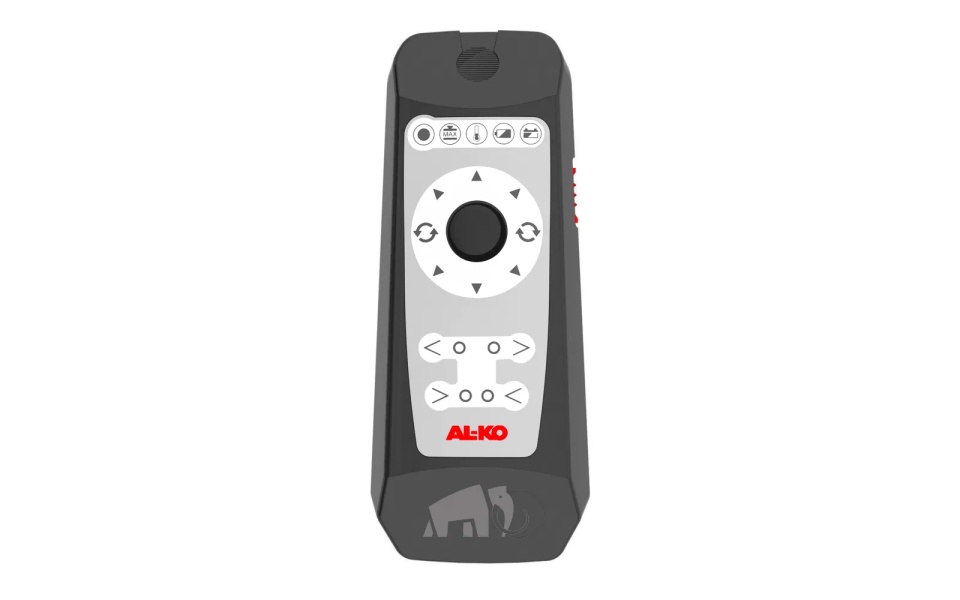

  • Perfect one-hand operation

  • Immediate stop on slopes - when you release the joystick, the trailer remains braked in place

  • Maximum climbing capacity:

    • total weight 2250kg = 13%

    • total weight 1800 kg = 16%

    • total weight 1200 kg = 28%

  • Softstart and softstop - smooth, controlled start and stop

  • Fully sealed drive system - splash-proof housing, safe operation even in wet conditions

  • Splash-proof enclosure (IP65) for motor and electronics

  • Electric drive roller coupling - including emergency release and one-hand operation

  • Made in Germany

  • Worldwide service network

  • Excellent chassis integration

  • Very precise manoeuvring system with maximum ground clearance

  • Jerk-free manoeuvrability

  • Precise positioning, including coupling/uncoupling and in tight spaces

  • Extremely powerful - overcomes obstacles up to 4 cm and slopes of up to 28% (single axle) or 15% (dual axle)

  • More power with proven reliability

  • Constant maximum tyre pressure thanks to electric drive

  • Low weight

  • Immediate stop on slopes - release the joystick and the trailer stops instantly

  • Plug & Play mounting on AL-KO chassis manufactured after 2010, with MAMMUT 'M' marking

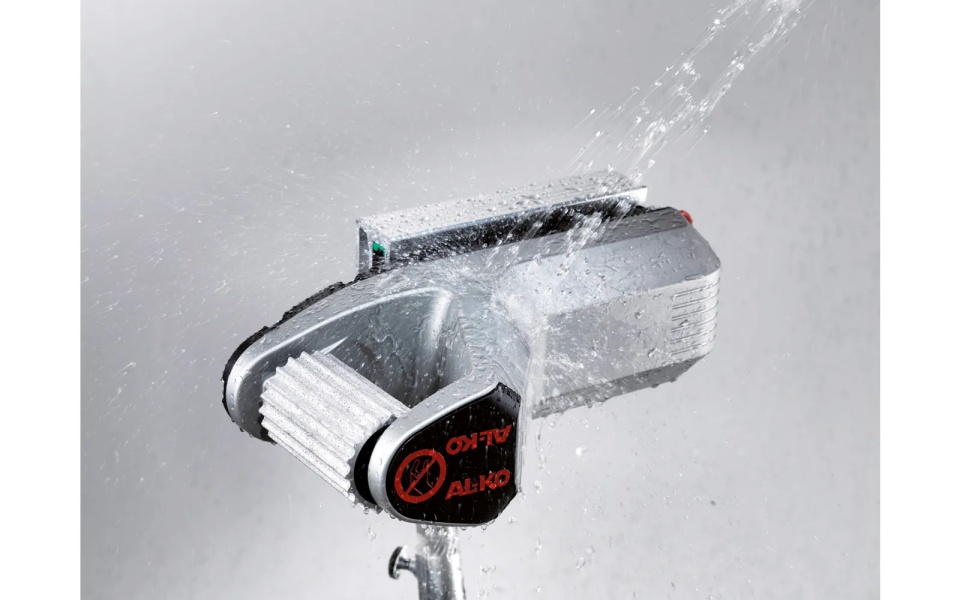

  • Fully sealed and splash-proof system (IP65)

  Battery and charger
  For the AL-KO Mammut manoeuvrability system, the Berger 120Ah lithium battery is recommended. With a fully charged battery, a range of about 2 hours on level ground and about 0.5 hours at full load can be achieved.

  M20

  • M chassis

  • 2 drive units

  • Top mounted

  Mounting: Easy, integrated with AL-KO chassis

Features

• Manoeuvring device type: manoeuvring system

• Model: M20

• Colour: silver

• Weight: 32 kg

• Number of axles: 1

• Maximum weight / tractive force: 2500 kg

• Maximum power consumption: 120 A

• Maximum climbing capacity: approx. 28% at 1200 kg
