Aluminium framed window MASIS, 300 x 450 mm

Description

Aluminium framed window MASIS, 300 x 450 mm. MASIS windows have a black aluminium frame and acrylic double glazing. This window size is usually fitted in bathrooms. You can find the Masis bathroom panel compatible with this window here

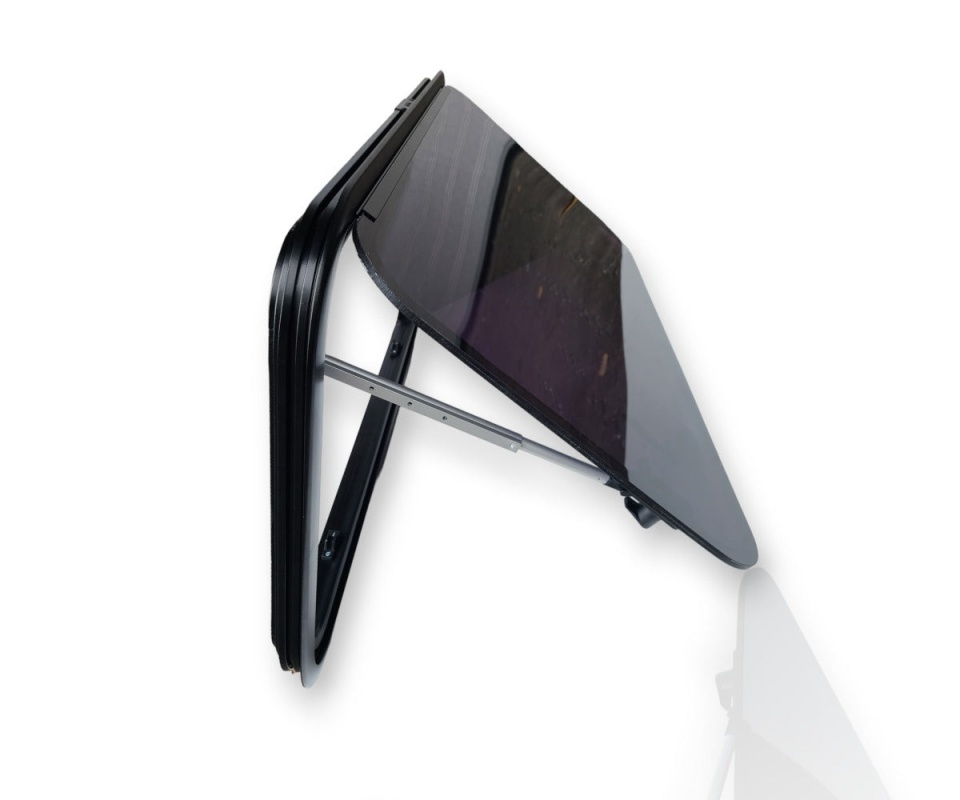

With this version the window opens up to an angle of 70°.

The standard distance between the window size and the mounting gap should be 1.5 mm and the minimum wall thickness should be 26 mm. To ensure the required thickness, you can make a wooden frame, especially if you use MASIS panelling for the inside.

Overall dimensions mm: 330 x 480 x 40
Installation dimensions (empty): 300 x 450 mm
Glass dimensions: 260 x 410 mm
Corner radius of curvature: 80°.
Opening angle: 70°
Wall thickness: 25 - 30 mm (+- 2 mm)
UV protection
Glazing: acrylic glass
Colour: light coloured black
Black aluminium frame

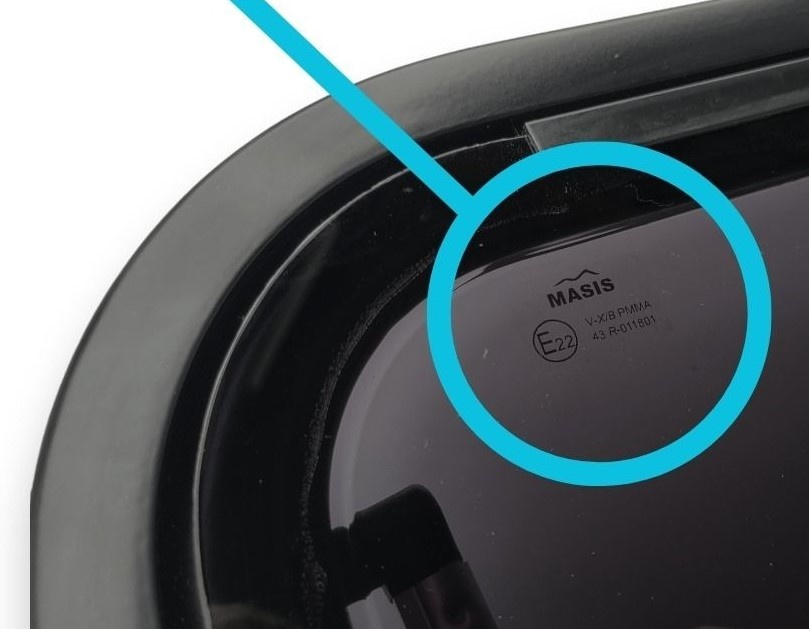

Marking: CE 43R

ATTENTION !!! The mosquito net is NOT included and can be purchased separately from here
