Aluminium framed window MASIS, 450 x 450 mm for camper rear doors

Description

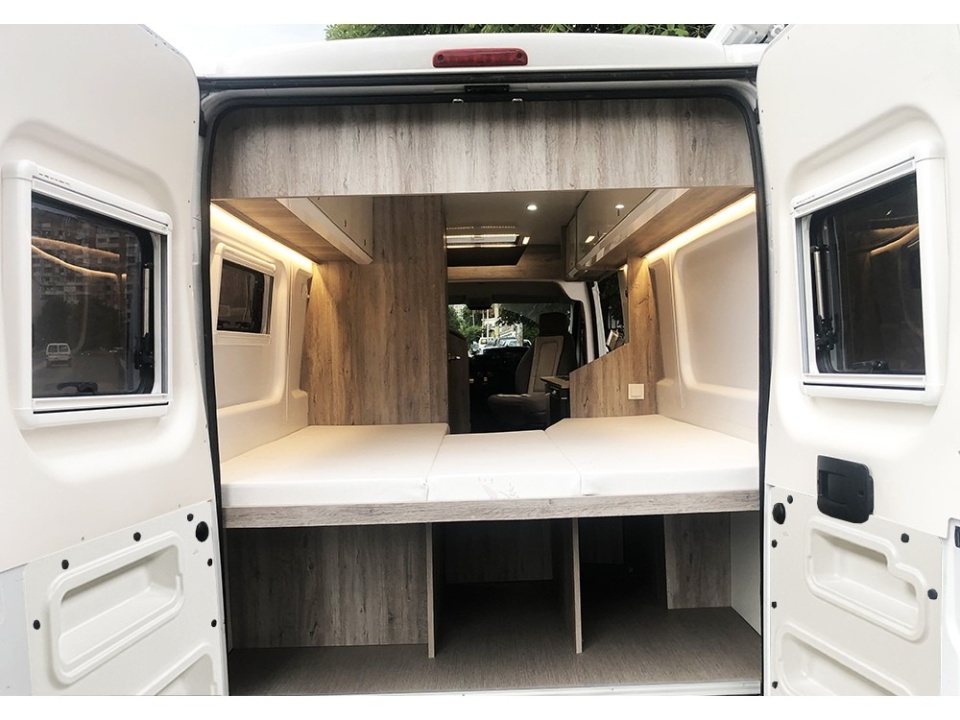

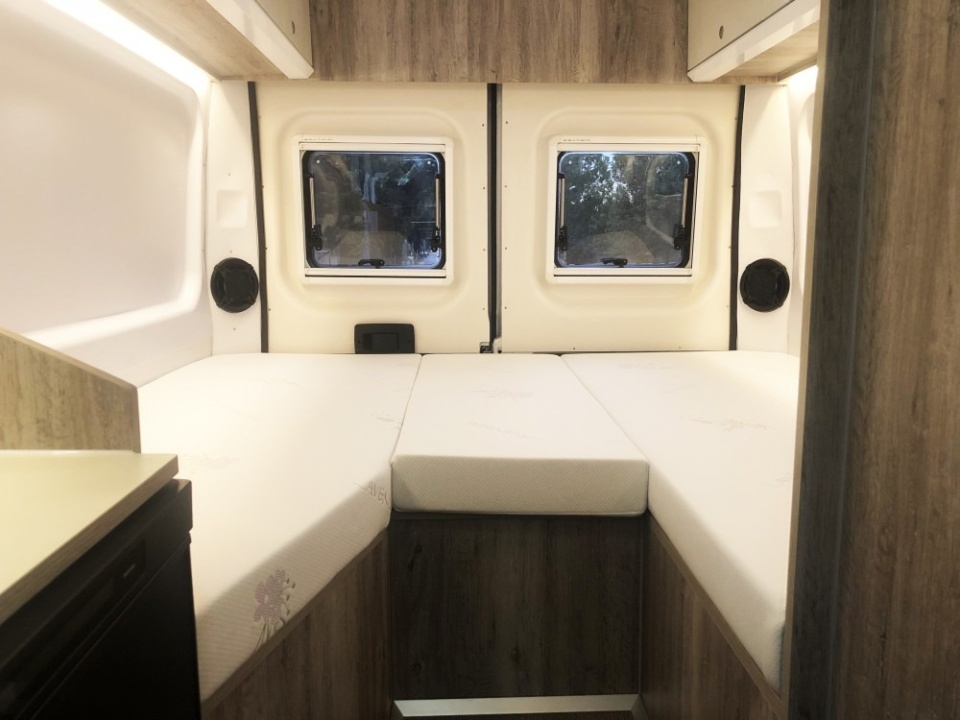

MASIS aluminium framed window, 450 x 450 mm. MASIS windows have a black aluminium frame and acrylic double glazing. This size of window is usually fitted in the top panel of the camper's rear doors.

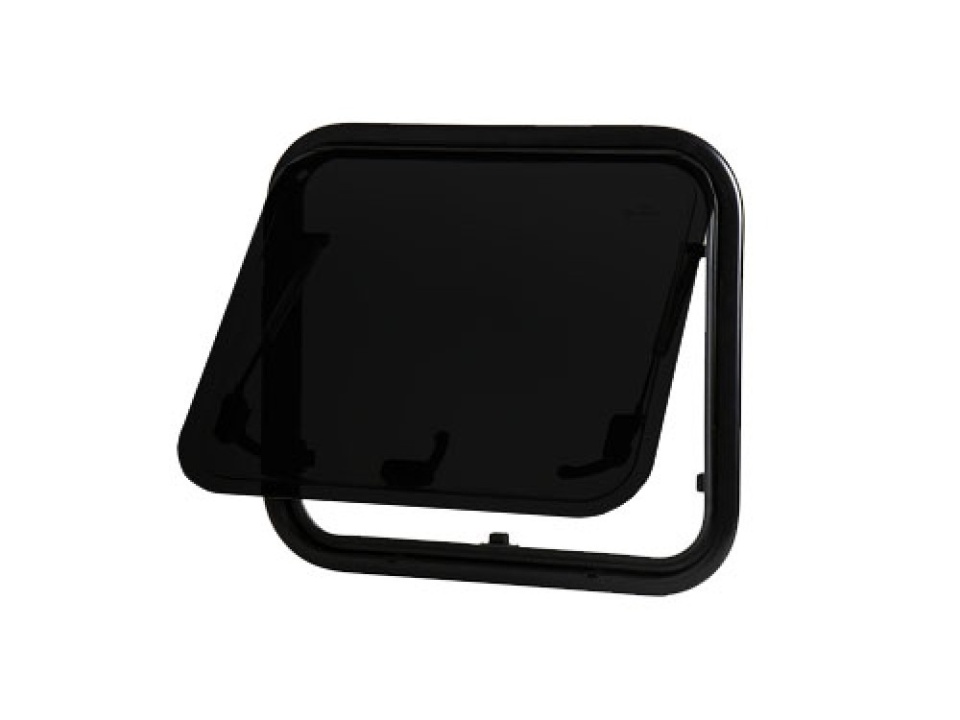

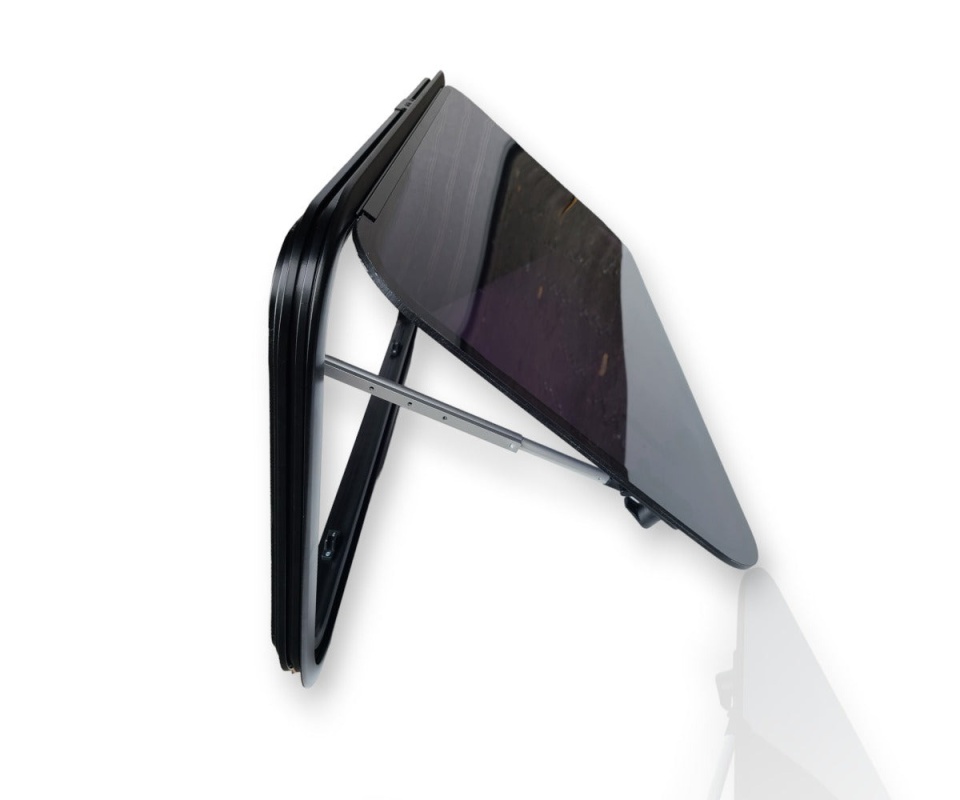

On this version the arms have a 3-position click-lock mechanism and open the window up to an angle of 70°.

The standard distance between the window size and the mounting gap should be 1.5mm and the minimum wall thickness should be 26mm. To provide the required thickness, you can make a wooden frame, especially if you use MASIS panelling for the inside. MASIS plastic panelling for interior cladding, find here

Overall dimensions mm: 480 x 480 x 40
Installation dimensions (empty): 450 x 450 mm
Glass dimensions: 410 x 410 mm
Corner radius of curvature: 80°
Opening angle: 70°
Wall thickness: 25 - 30 mm (+- 2 mm)
UV protection
Glazing: acrylic glass
Colour: light coloured black
Black aluminium frame

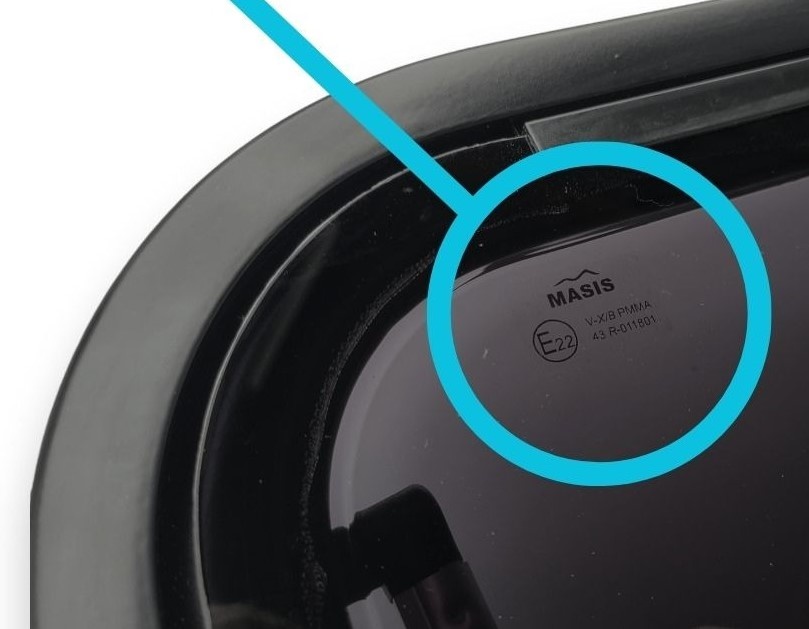

Marking: CE 43R

ATTENTION !!! The mosquito net is NOT included and can be purchased separately from here
