Aluminium framed window MASIS, 650 x 300 mm
Description

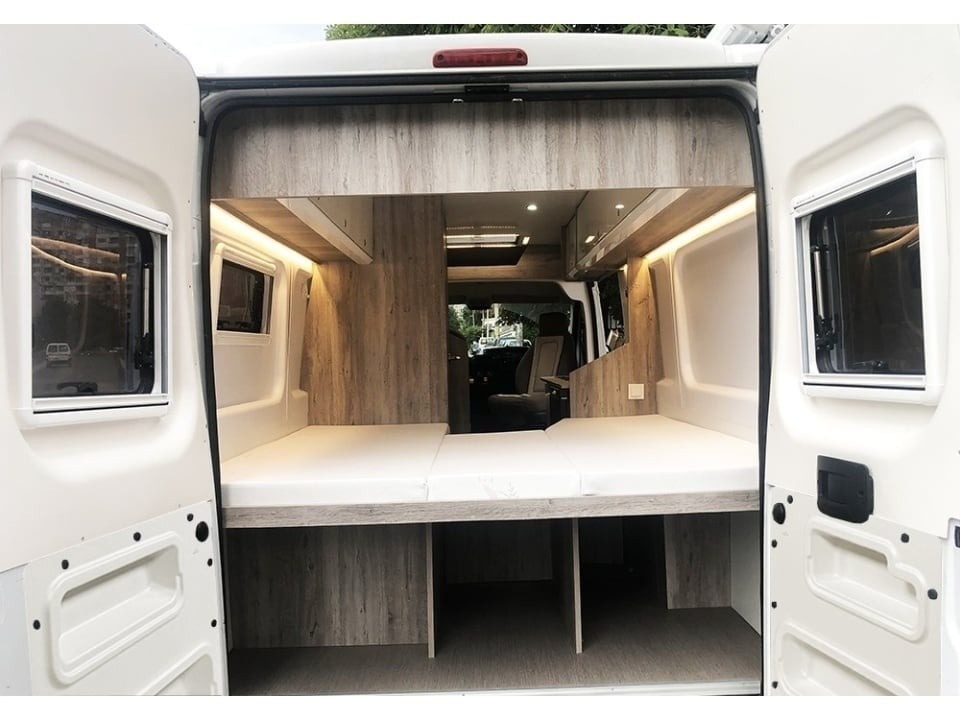

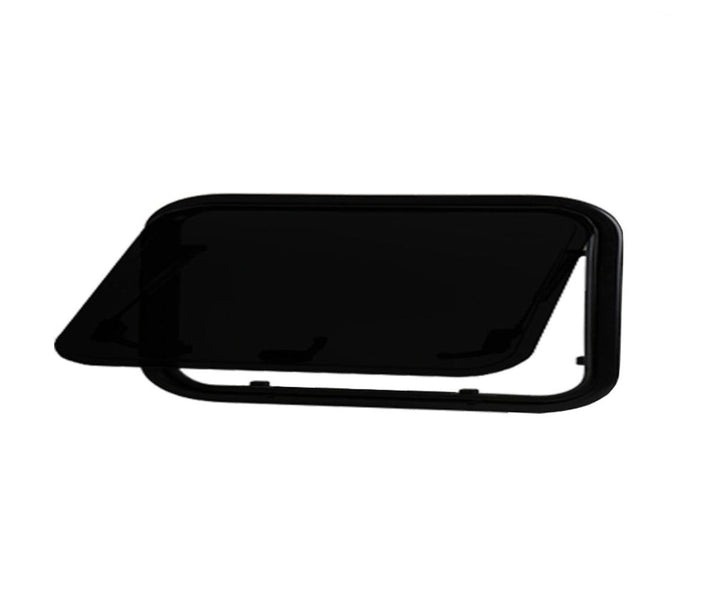

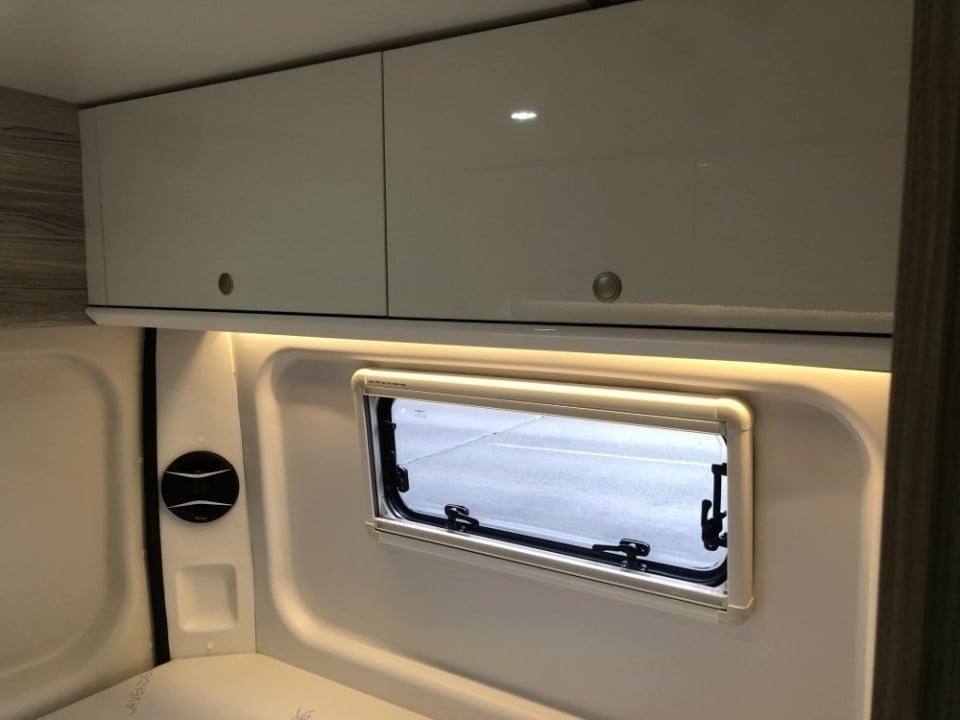

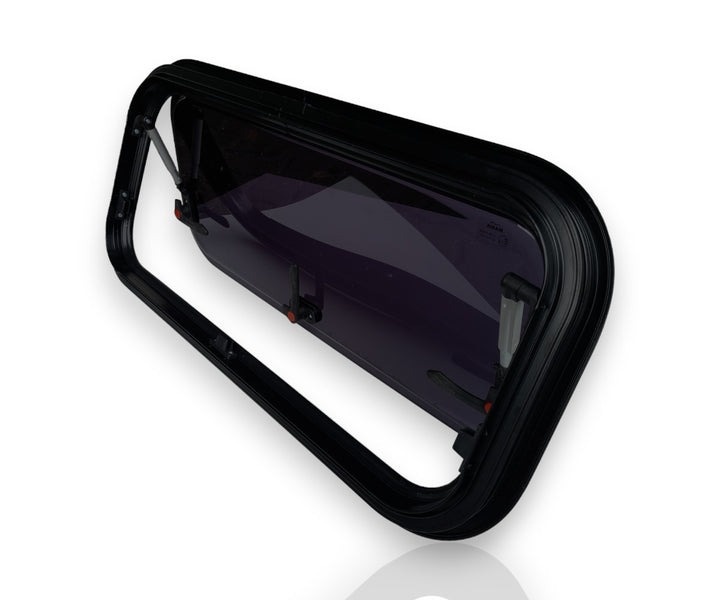

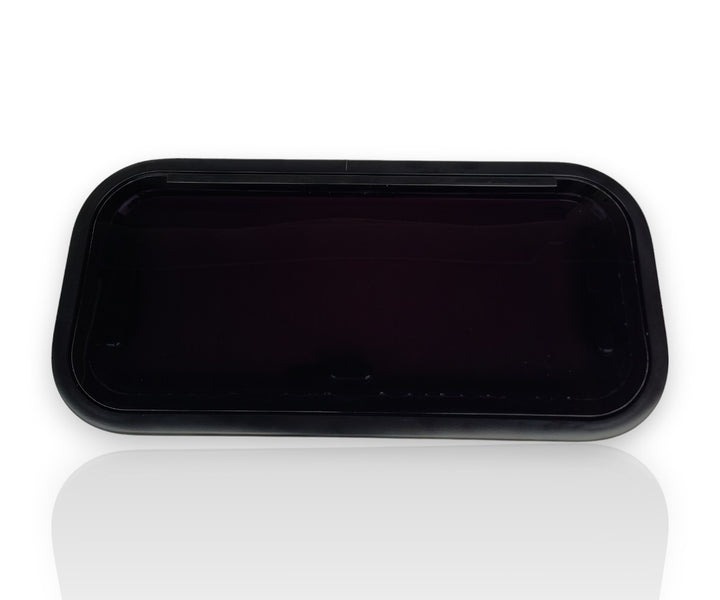

MASIS aluminium framed window, 650 x 300 mm. MASIS windows have a black aluminium frame and acrylic double glazing. This size is usually used in the rear area where the bed is located.

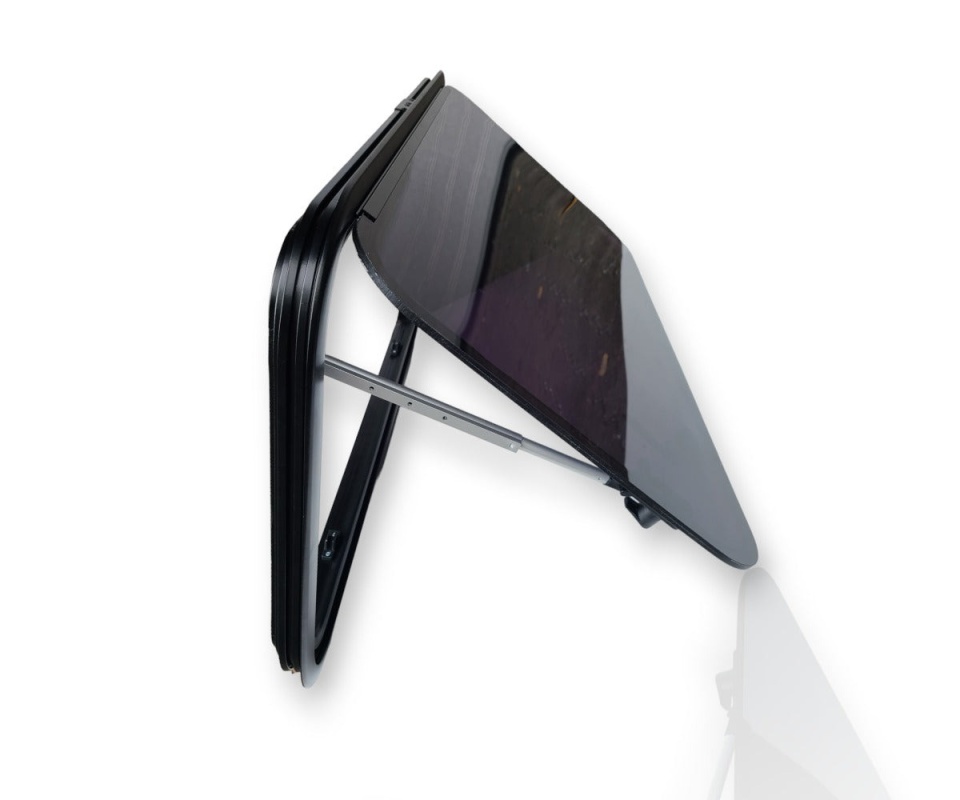

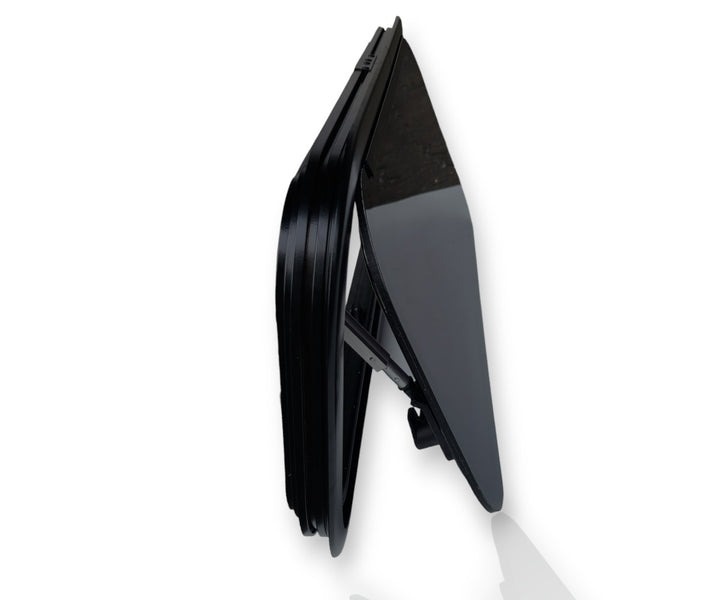

The glass is tinted and at this size it opens in one position at approximately 70°.
The standard distance between the window size and the fitting gap should be 1.5mm and the minimum wall thickness should be 26mm. To provide the required thickness, you can make a wooden frame, especially if you use MASIS panelling for the inside.
Specifications :
Overall dimensions mm: 680 x 330 x 40
Installation dimensions (empty): 650 x 300 mm
Glass dimensions: 610 x 260 mm
Corner radius of curvature: 80°.
Opening angle: 70°
Wall thickness: 25 - 30 mm (+- 2 mm)
UV protection
Glazing: acrylic glass
Colour: light coloured black
Black aluminium frame
Marking: CE 43R
ATTENTION !!! The mosquito net is NOT included and can be purchased separately from here
Details
Delivery
Products on stock are delivered in 2 - 4 working days
Free delivery for orders > 60 Euro (except for products with special warnings)
