Aluminium framed window MASIS, 850 x 450 mm

Description

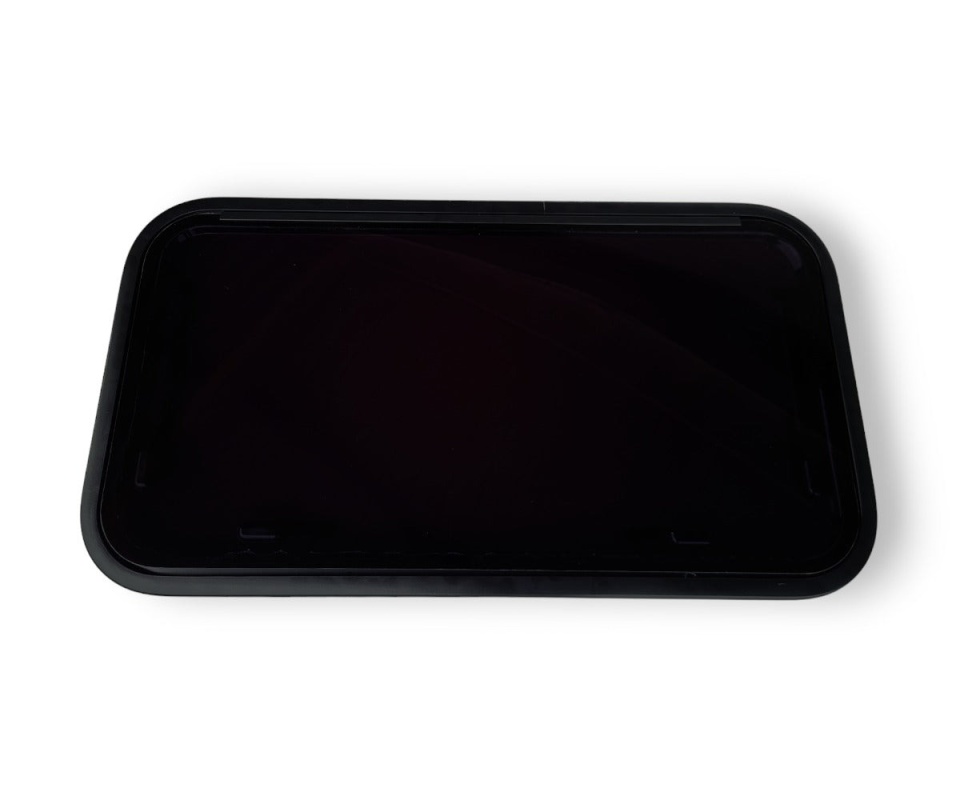

MASIS aluminium framed window, 850 x 300 mm. MASIS windows have a black aluminium frame and acrylic double glazing. This size is usually used in the rear area where the bed is placed.

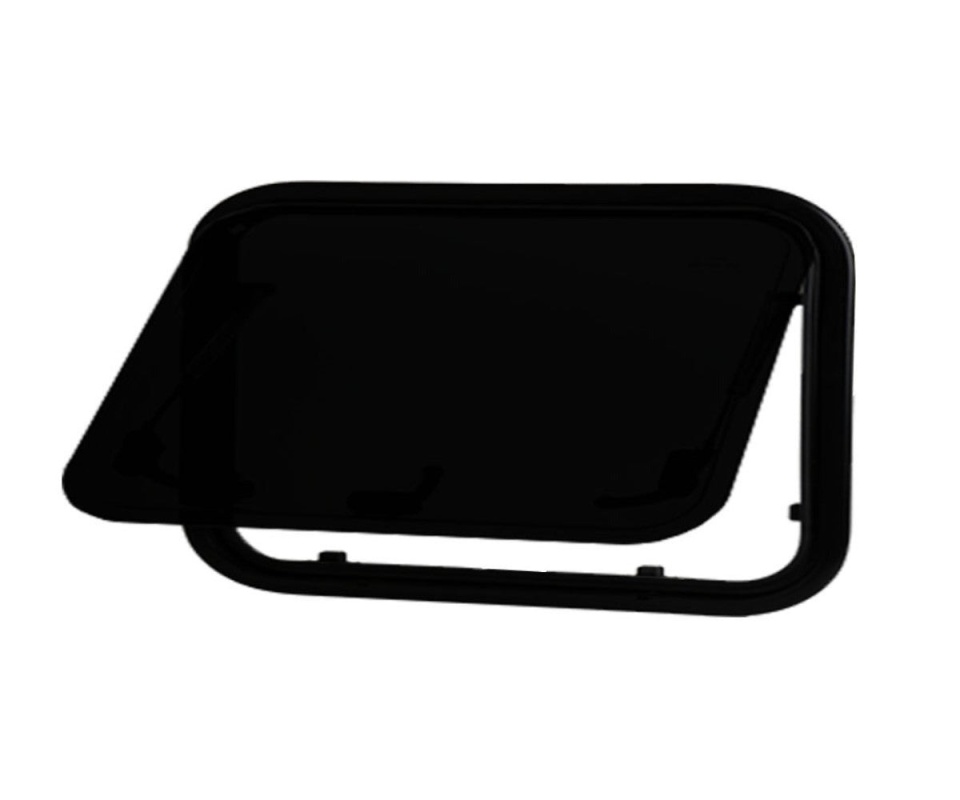

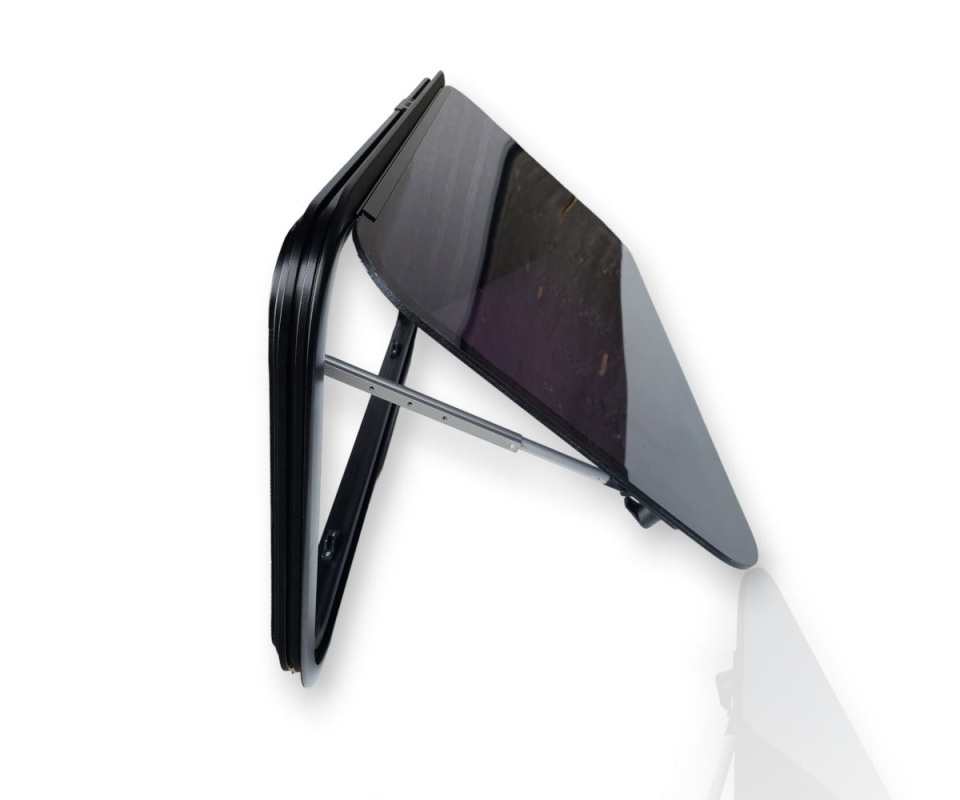

In this version, the arms have a 3-position click-lock mechanism and open the window up to an angle of 70°.

The standard distance between the window size and the mounting gap should be 1.5 mm and the minimum wall thickness should be 26 mm. To provide the required thickness, you can make a wooden frame, especially if you use MASIS panelling for the inside.

Specifications :

Overall dimensions mm: 880 x 480 x 40
Installation dimensions (empty): 850 x 450 mm
Glass dimensions: 810 x 410 mm
Corner radius of curvature: 80°
Opening angle: 70°
Wall thickness: 25 - 30 mm (+- 2 mm)
UV protection
Glazing: acrylic glass
Colour: light coloured black
Black aluminium frame

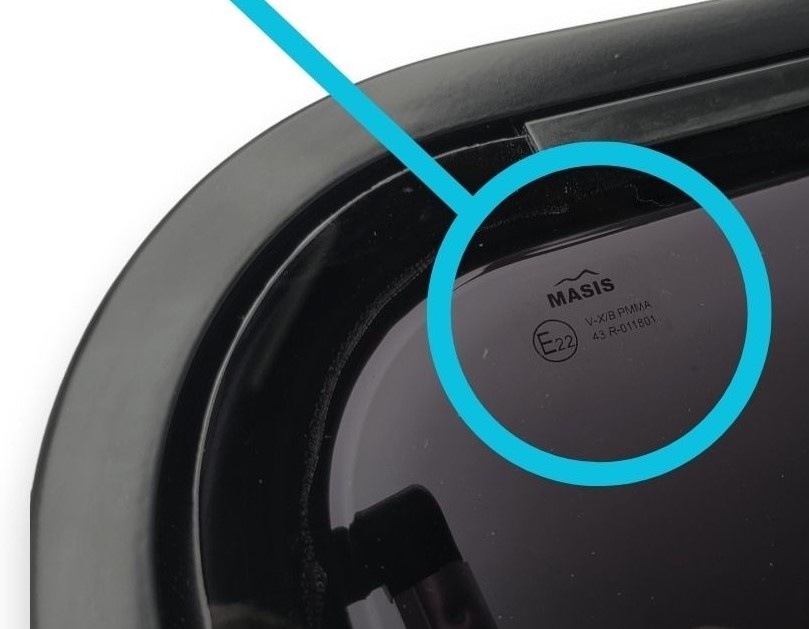

Marking: CE 43R

ATTENTION !!! The mosquito net is NOT included and can be purchased separately from here
