Aluminium shelving for storage in the motorhome garage – basic pack

Description

A smart and versatile storage system for the efficient organisation of space in your motorhome’s garage. Installation instructions can be found here

Features:

• Made from durable
• anodised aluminium Height adjustable between 141 and 145 cm, thanks to the adjustable legs at the top
•. The uprights can be shortened if necessary

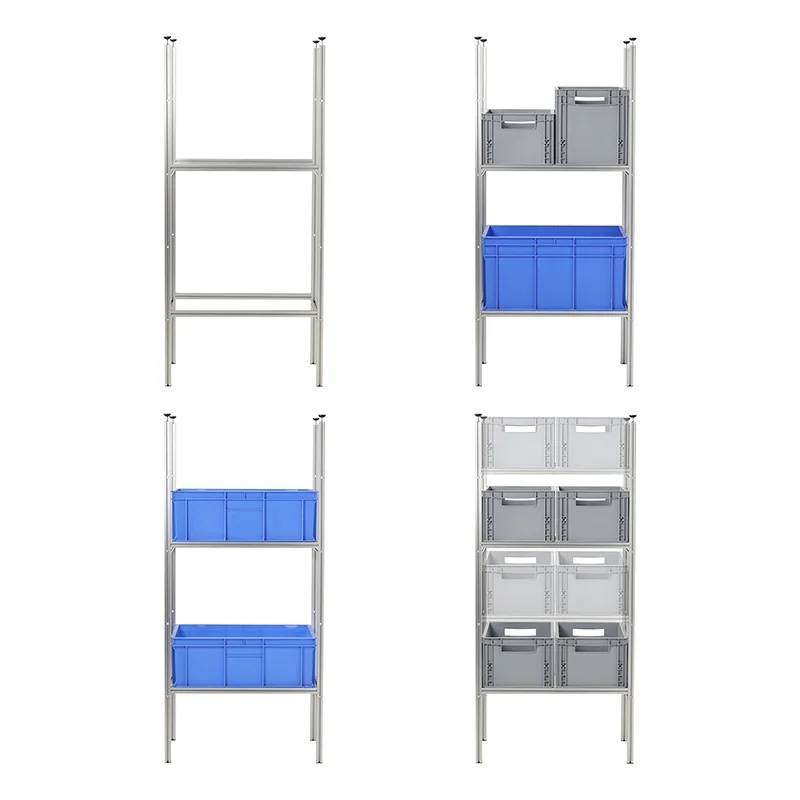

•. The basic version includes 3 storage
• compartments. Compatible with foldable storage boxes (boxes must be purchased separately)

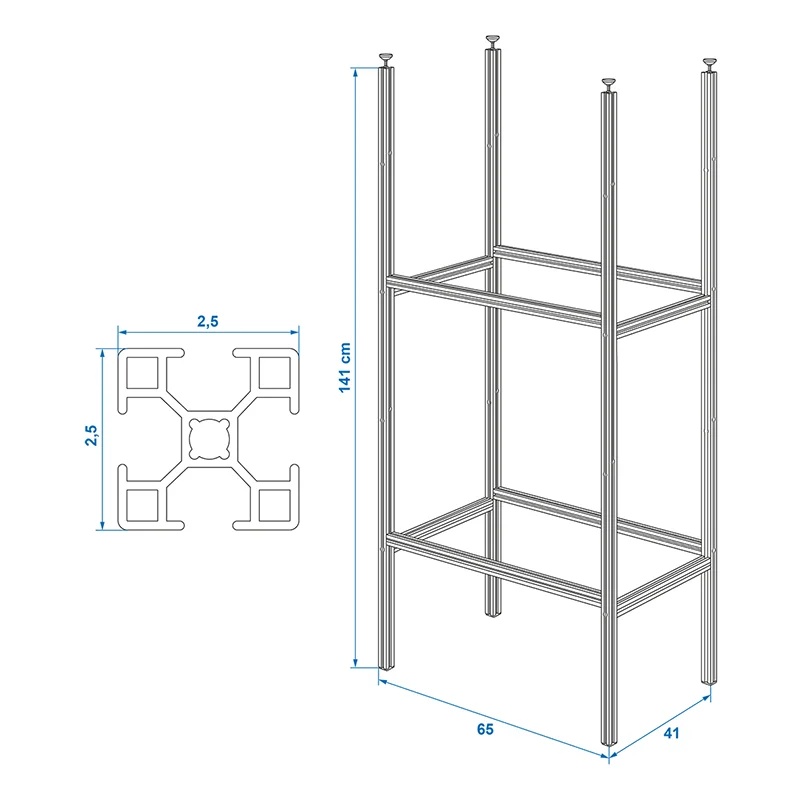

• Dimensions: 65 x 41 x 144 cm

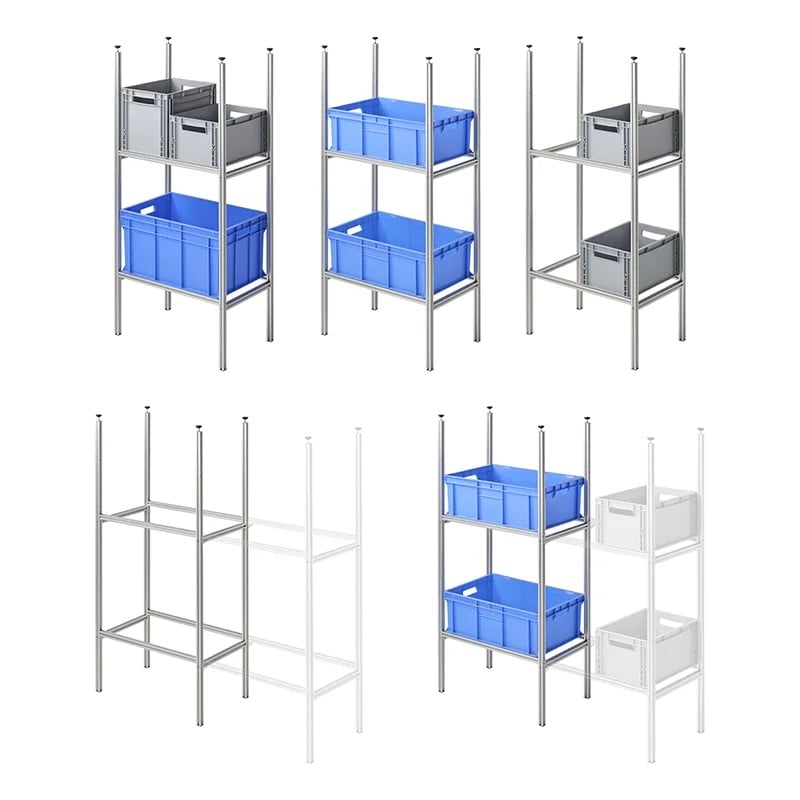

• an optional set that adds 3 more storage spaces and can be purchased separately here
• a set that adds extra shelves, available to buy separately here

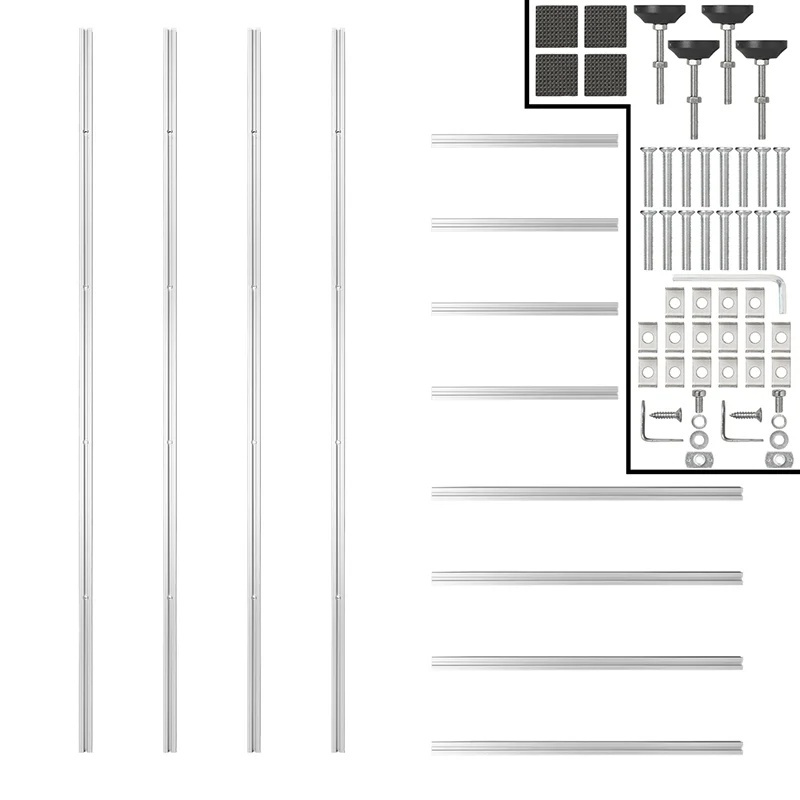

The pack contains
: - 4 horizontal profiles, 360 mm (with connectors at both ends)
– 4 horizontal profiles, 600 mm (with connectors at both ends)
– 4 vertical profiles, 1400 mm (with a square base on one side)

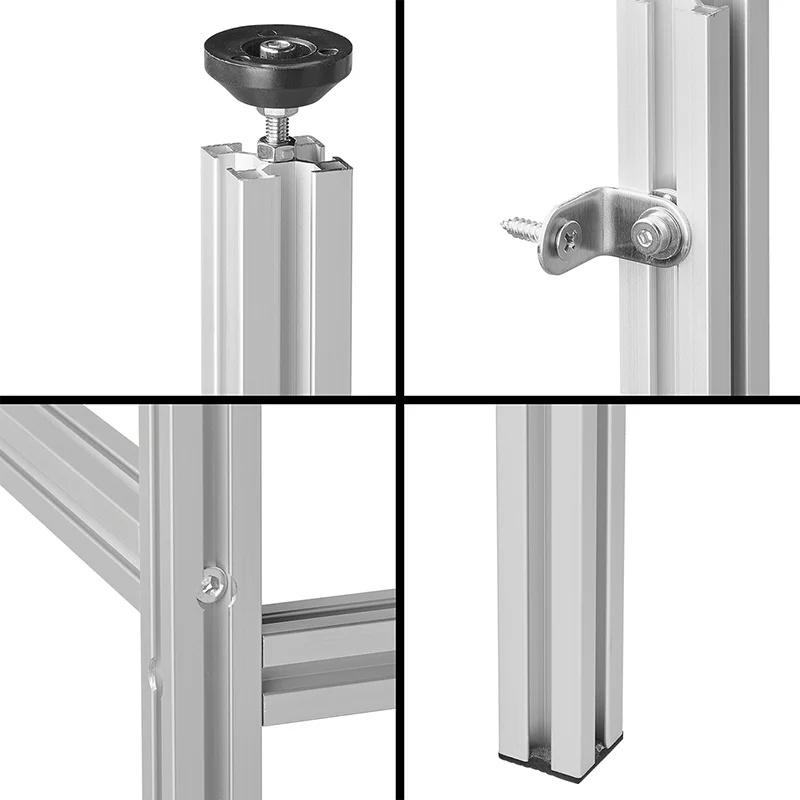

– 4 adjustable legs (each fitted with two nuts)
—2 angle brackets for wall mounting—
2 self-tapping Phillips-head screws (for wall mounting)
—2 screws for mounting the wall brackets—
2 spring washers
– 2 flat washers –
2
nuts – 4 foot plates –
16 mounting plates for the horizontal tubes –
16 hexagon socket set screws with countersunk heads (for mounting 8 tubes)
– 1 hex key
