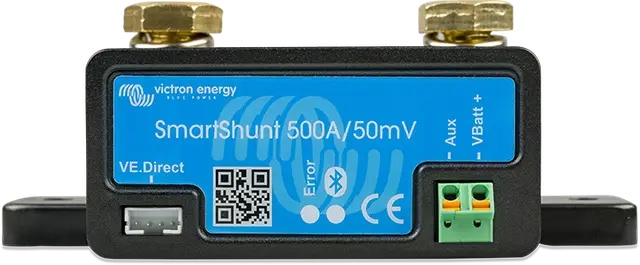

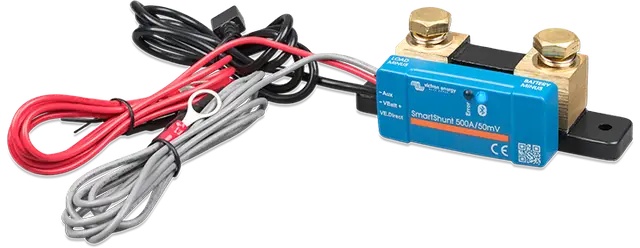

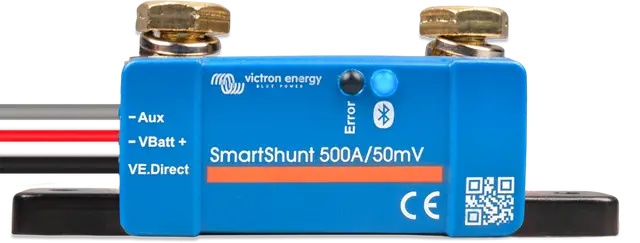

Battery monitor, 500A/50mV, IP21, Victron Smart Shunt

Description

The Victron SmartShunt 300A/50mV, IP21 is a smart battery monitor that provides accurate information about power consumption and battery status. With built-in Bluetooth, VE.Direct and an additional input for measuring the voltage, temperature or average voltage of a second battery, the SmartShunt is a versatile solution for battery monitoring. This device measures battery voltage and current and provides much more accurate information about battery status than a simple voltmeter. The Smart Shunt connects via Bluetooth to the Victron Connect app on your phone (or tablet) and you can read all monitored battery parameters such as state of charge, time remaining until fully discharged, historical information and more.

Full datasheet can be downloaded here

Installation instructions can be found here

Technical specifications:

- Voltage range : 6.5-70 VDC;

- input voltage: 6,5-70 VDC;

- capacity of the battery that can be used: 1-9999 Ah;

- operating temperature range: -40C - 50C;

- monitors voltage, auxiliary battery temperature;

- usable battery capacity: 1-999999 Ah

- measuring temperature range: -20C - 50C;

- VE.Direct communication port;

- dimensions(h x w x d): 46 x 120 x 54 mm;

- protection category: IP21;
