Battery Ultimatron LiFePO4 metal case, 12,8V, 620Ah, 5 years warranty

Description

The Ultimatron LiFePO4 12.8V 620 Ah battery is designed for solar systems with a nominal voltage of 12V.

Key features of this model are:

• Category "A" cells. Information about this cell typecan be found here
• BMS (Battery Management System): integrated battery charge management and control system that protects the battery against overcharging, overvoltage and overheating.

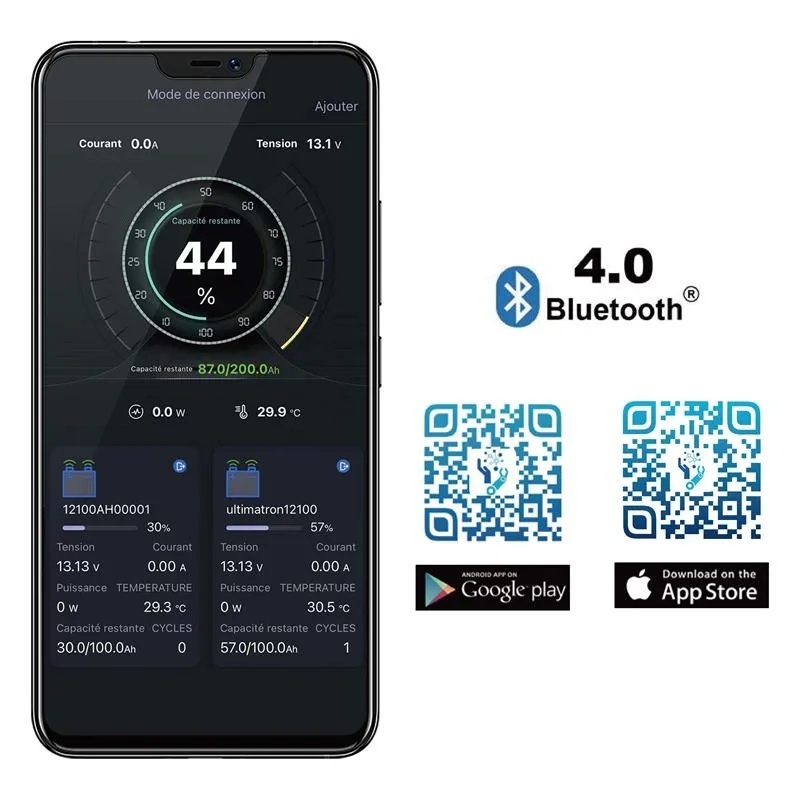

• Bluetooth 4.0 monitoring: by downloading the free app on your smartphone (Apple or Android) you have all key battery parameters displayed in real time
• 5 year manufacturer warranty
• >6000 charge/discharge cycles ( guaranteed for 80% capacity)
• 4 Ultimatron ULM series batteries can be connected in parallel.

• Product leaflet can be found here

Specifications:

Nominal voltage: 12,8V
Lifecycle > 6000@80%D.o.D
Nominal capacity: 620Ah
Capacity at 80A: 465min
Power: 7936Wh
Recommended charging current: 100A / Maximum charging current: 150A
Recommended charging voltage: 14.6V
Maximum continuous discharge current: 250A
Reconnection voltage: >11.2V
Low voltage disconnection: 10V (2000 ms)
Dimensions (L x W x H): 440 x 318 x 375 mm
Weight: 61.6kg
Connection terminal type: M8
Housing material: Metal
Enclosure protection: IP65
Discharge temperature: -20 ~ 75ºC
Charging temperature: 0 ~ 50ºC
Storage temperature: -5 ~ 35ºC
Certifications: CE / UN38.3 / UL1642 & IEC62133

ATTENTION !!! Due to the weight, this product has a fixed shipping charge of 200 RON.
