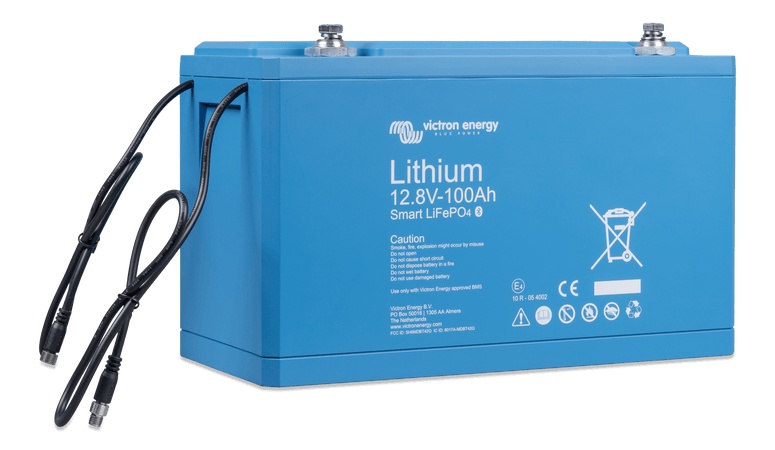

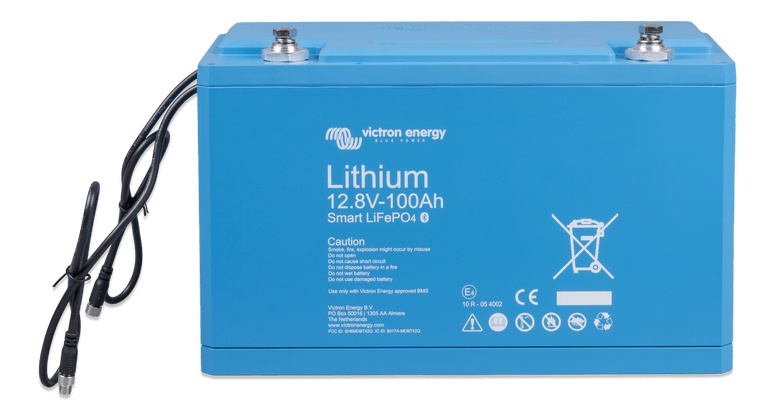

Battery Victron Energy LiFePO4 Battery 12,8V/100Ah Smart

Description

Victron LiFePO4 batteries are the safest lithium ion batteries on the market. The nominal voltage of a LiFePO4 cell is 3.2V, as opposed to 2V for acid batteries, so a 12.8V battery contains 4 cells connected in series, and a 25.6V battery contains 8 cells connected in series.

It is not necessary for a LiFePO4 battery to be fully charged. The lifespan of such a battery is improved with a partial charge rather than a full charge, which is the big advantage over acid batteries.

Other advantages are the wide temperature ranges over which it can operate, excellent cycling performance, low internal resistance and high efficiency of 92%.

You can monitor cell voltages, temperature, and error status via Bluetooth, this is very useful for localising a potential problem such as cell imbalance.

WARNING !!! The use of a LiFePO4 battery charger is required ! Gel, AGM or lead-acid battery chargers are NOT compatible (will overheat the battery). If charging with solar panel regulator/inverter, it must be compatible with Lithium /LiFePO4 batteries

Specifications:

Nominal voltage: 12.8 V;

Rated capacity at 25°C: 100 Ah;

Nominal capacity at 0°C: 80 Ah;

Rated capacity at -20°C: 50 Ah;

Power rating at 25°C:P 1280 Wh;

Cycle life: maximum 5000 cycles (at 50% DoD);

Maximum continuous discharge current: 200 A;

Recommended continuous discharge current: <100 A;

Discharge operating temperature: -20C - +50C;

Charging operating temperature: +5 - 50C;

Storage temperature: - 45C - 70C;

Humidity: maximum 95%;

Protection class: IP22;

Maximum charging current: 200 A;

Recommended charging current: <50A;

Dimensions: 197 x 321 x 152mm;

Weight: 15kg;

Technical data can be downloaded here

Features:
With integrated cell balancing
Can be connected in parallel and series
Bluetooth app available for monitoring cell voltage and temperature
Unrivalled versatility: Connect these batteries in series, parallel or series/parallel to build a battery bank tailored to your system needs,with options for 12 V, 24 V or 48 V system voltages.
Substantial capacity: Create an extended energy reserve with up to 20 batteries in a single system, achieving a remarkable storage capacity of 84 kWh in a 12 V configuration and up to 102 kWh in 24 V and 48 V configurations.
Lithium-iron-phosphate excellence:The LFP battery is designed to withstand harsh conditions without the sulfation problems that plague lead-acid batteries, ensuring longevity and consistent performance.
Partial-charge advantages: Unlike lead-acid batteries, Victron LFP battery life improves with partial charges, making it the superior choice for long-term efficiency and reliability.
Next-Generation Efficiency: Superior Full-Cycle Energy Efficiency: Enjoy an outstanding 92% energy efficiency with a full discharge and recharge cycle, exceeding the average 80% efficiency of lead-acid batteries.
Space and Weight Savings: Get the same power with 70% less space and weight compared to traditional batteries, a key advantage for mobile and off-grid applications.

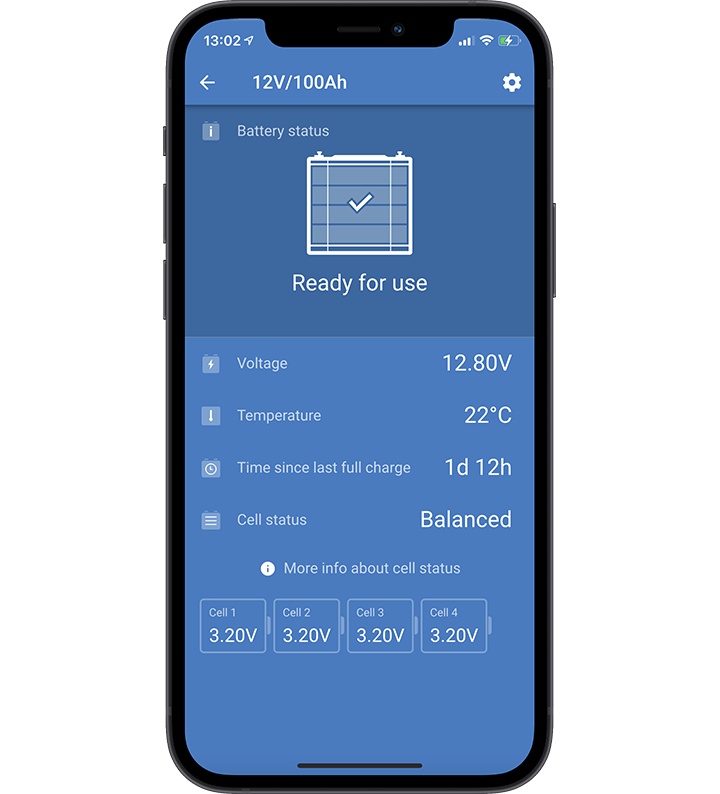

Smart monitoring with Bluetooth: Real-time data: With integrated Bluetooth, monitor cell voltage, temperature and alarm status directly through the VictronConnect app, without having to physically connect to the battery.
Simplified troubleshooting: Quickly identify and fix any potential cell imbalance issues or other problems, ensuring optimal performance of your system.
Proactive protection: BMS provides early alarms for low voltage and stops charging to prevent damage, ensuring battery health and safety.
Optimised charging: Also regulates the charging process to protect against over-voltage and extreme temperatures, detailed in the BMS full datasheets.
