Berger gas alarm detector (propane, butane, narcotic gases, carbon monoxide)

Description

The Berger GA01 gas detector detects the following gases:

• LPG (both butane and propane) if it accidentally leaks from an appliance, cylinder or pipe.

• Carbon monoxide (CO), which can be produced by gas-fuelled appliances if they are not sufficiently ventilated or do not receive enough fresh air for the combustion process.

• Anaesthetic gases such as ether, which are used in robberies to render victims unconscious.

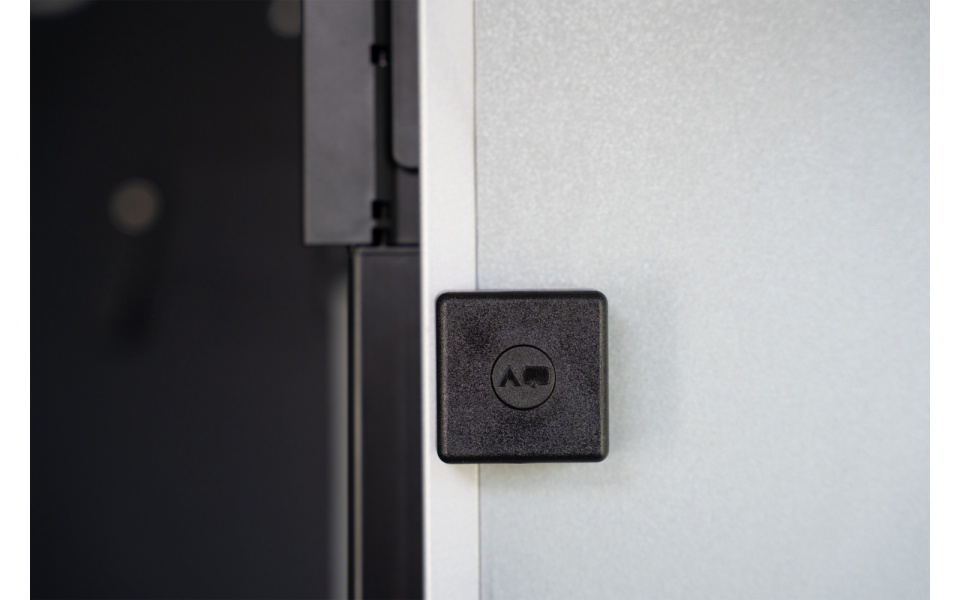

The Berger GA01 detector is the latest and most innovative alarm that can detect both escaping and rising gases thanks to its dual sensors. For even more safety, we recommend our optional additional sensors, which can be mounted in the vehicle at the desired height. We recommend mounting the detector in the bed area, an additional carbon monoxide sensor at height and an additional full sensor as close to the ground as possible in the gas circuit area.

Additional sensor for all gases (butane, propane, narcotic gases and carbon monoxide)

Additional sensor for carbon monoxide

The detector is powered from the vehicle's 12 V supply. Up to 2 additional sensors can be connected. Instructions for use can be downloaded here

Specifications:

• Supply voltage 12-24V
• power consumption: 100 mA in standby mode, 180 mA during alarm
• audible alarm: 80dB

• Dimensions: 54 x 54 x 29 mm
• Weight: 47 g

• Sensitivity: Gases 95 ppm, CO 175 ppm, CO with optional CO sensor 40-90 ppm CEE

Features:

• Sensor is checked each time the device is switched on

• Automatic calibration every 40 seconds to adjust settings

• Light and audible signals

• GA01 alarm triggers pre-alarm when gas concentration is detected. If the gas concentration returns to normal, the detector alarm returns to stand-by mode

• Constant or increasing gas concentration is followed by a continuous beep sound and a lit red LED
