Bicycle carrier "Fiamma Carry-Bike PRO" for motorhomes, 80 -150 cm

Description

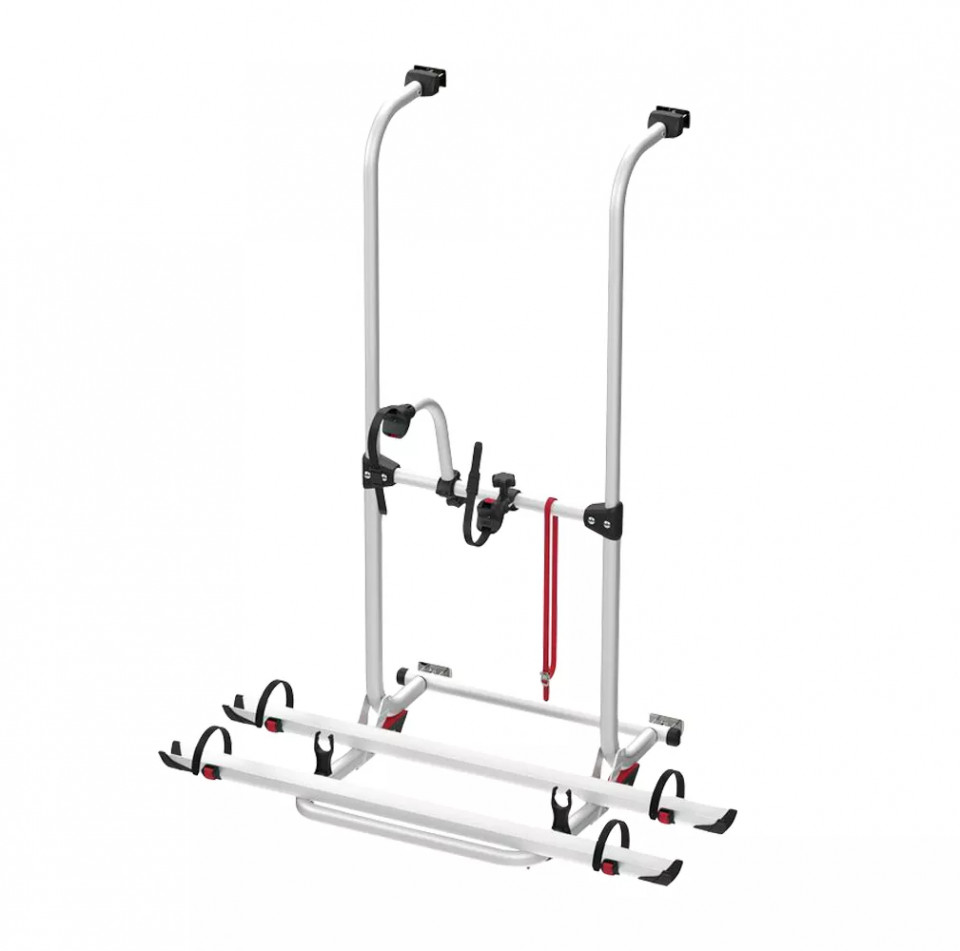

Developed for transporting bicycles on the back of motorhomes. The rack is standard equipped with 2 rails and 2 arms for transporting 2 bicycles:

2 x Rail Rail Quick Pro
1 x arm Bike-Block Pro 1
1 x arm Bike-Block Pro 3

The capacity can be extended to 3 or 4 bikes by purchasing an additional rail and arm as follows:

• for the 3rd bike:
  1 Rail Rail Quick Pro
  1 xBike-Block Pro 2 or Bike Block Pro S D2 arm
• for the 4th bike:
  1 Rail Quick Prorail
  1 xBike-Block Pro 4 or Bike Block Pro S D4 arm

The package includes all necessary mounting parts and instructions you can download below.

Assembly instructions can be downloaded here

Technical specifications:

• Compatible: motorhomes
• Place of installation: rear wall

• Number of bikes transported: the package contains 2 rails for 2 bikes as standard and can be extended up to 4

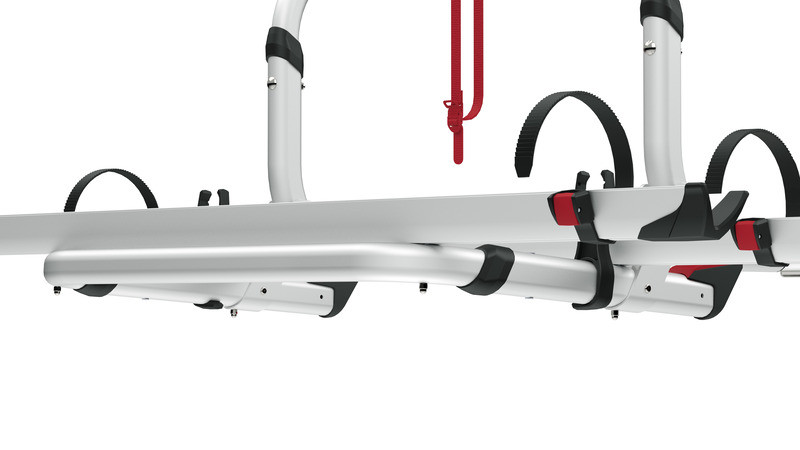

• The rails can be easily slid from left to right to find the best position for your bike
• Can carry almost any bike model, from mountain bikes to children's bikes

Specifications:

Maximum load capacity: 60kg
Sliding rails - left and right

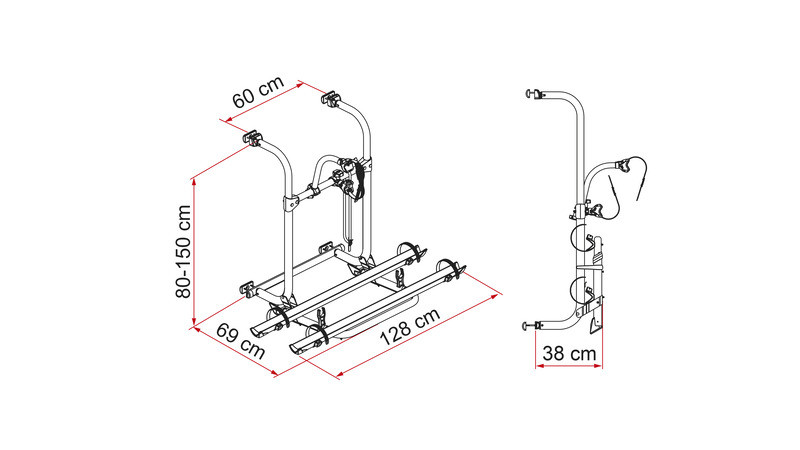

Overall width: 128 cm
Height: (adjustable, from up to) 80 - 150 cm
Depth: 60 cm
Weight: 10.1 kg gross / 8.4 kg net
