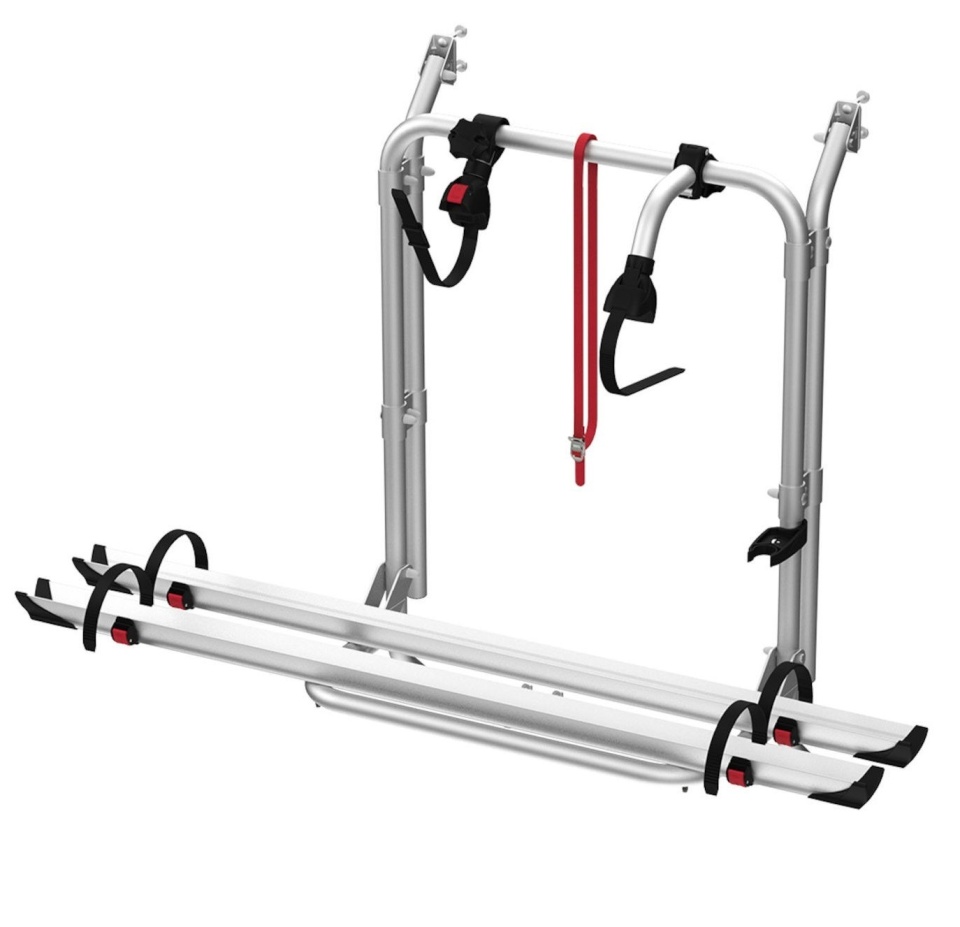

Bike carrier Fiamma Carry-Bike 200D

Description

Bicycle carrierBicycle carrier Fiamma 200 D 2023 for the RIGHT rear door of campers.

Features:
Installation width is variable from 58cm to 62cm to suit different door types.
Installation height is variable from 90 to 118cm.
The installation brackets are 24mm wide and require door drilling.
Transport capacity is 2 standard bikes.
The package contains: 2 x Rail Premium (bike rail), 1 x Bike-Block Pro S 1 and 1 x Bike-Block Pro S 2 (clamping arms) Carry-Bike 200D frame, 1 x Rack Holder (secures the bike rack when folded) and 1 x Security Strip (buckle strap)

This bike rack version is compatible with:
Fiat Ducato l-series / Citroen C25 / Peugeot J5 from 1981 to 1994 (H2 and H1)
Fiat Ducato l-series / Peugeot Boxer l-series / Citroen Jumper l-series from 1994 to 1999 (H2)
Ford Transit MK3-MK4-MK5-MK5-MK6-MK7 from 1987 to 2014 (H1,H2 and H3)
Ford Transit MK8 from 2014 H3
.
Specifications:

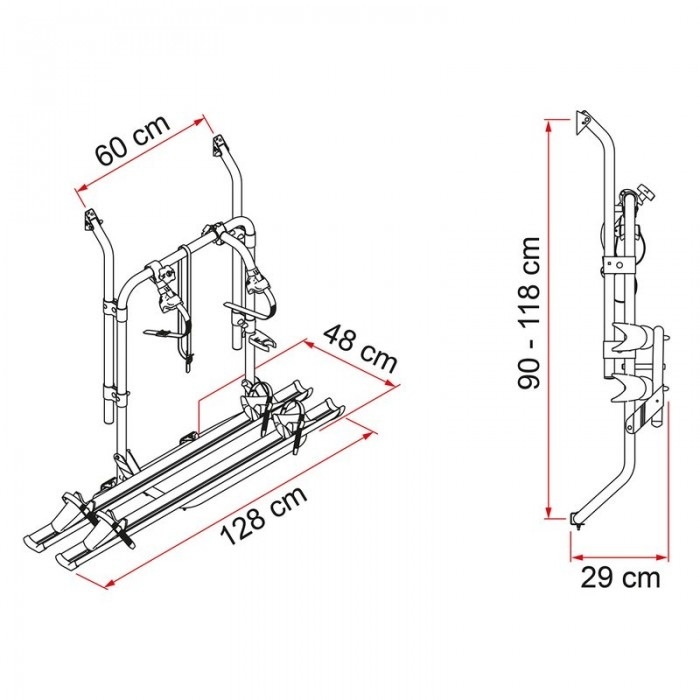

Dimensions: see sketch
Maximum load: 35 Kg.
Weight: 6.9 Kg.
TUV approved.
Material: anodised aluminium.

ATTENTION !!! Due to the size, this product has a fixed transport charge of 30 RON

Assembly instructions here
