Cable for solar panels, 1x6 mm², made in Germany, KBE Solar - BLACK

Description

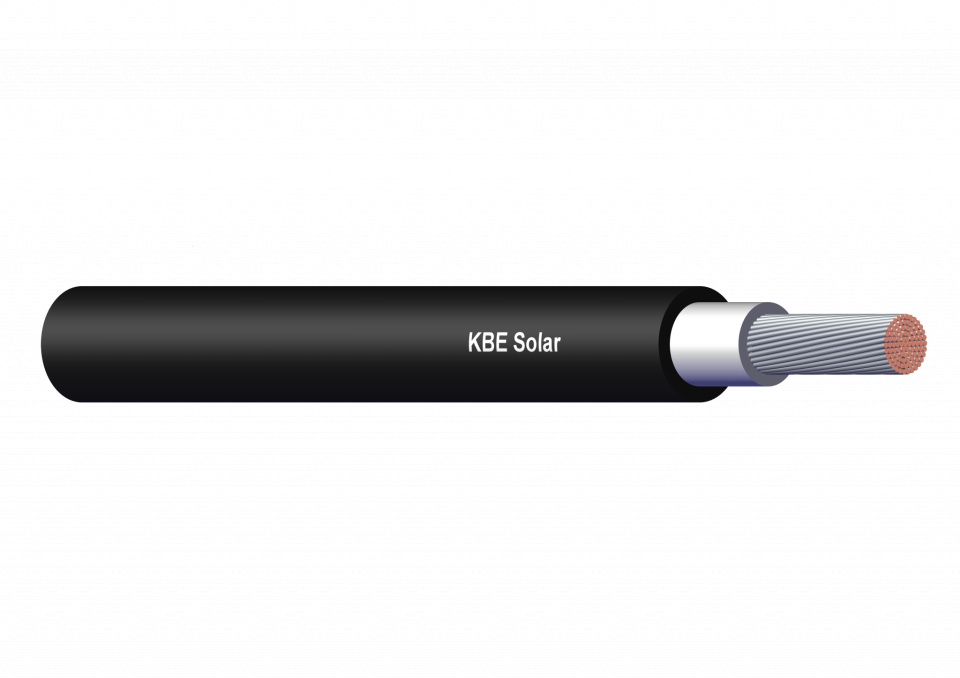

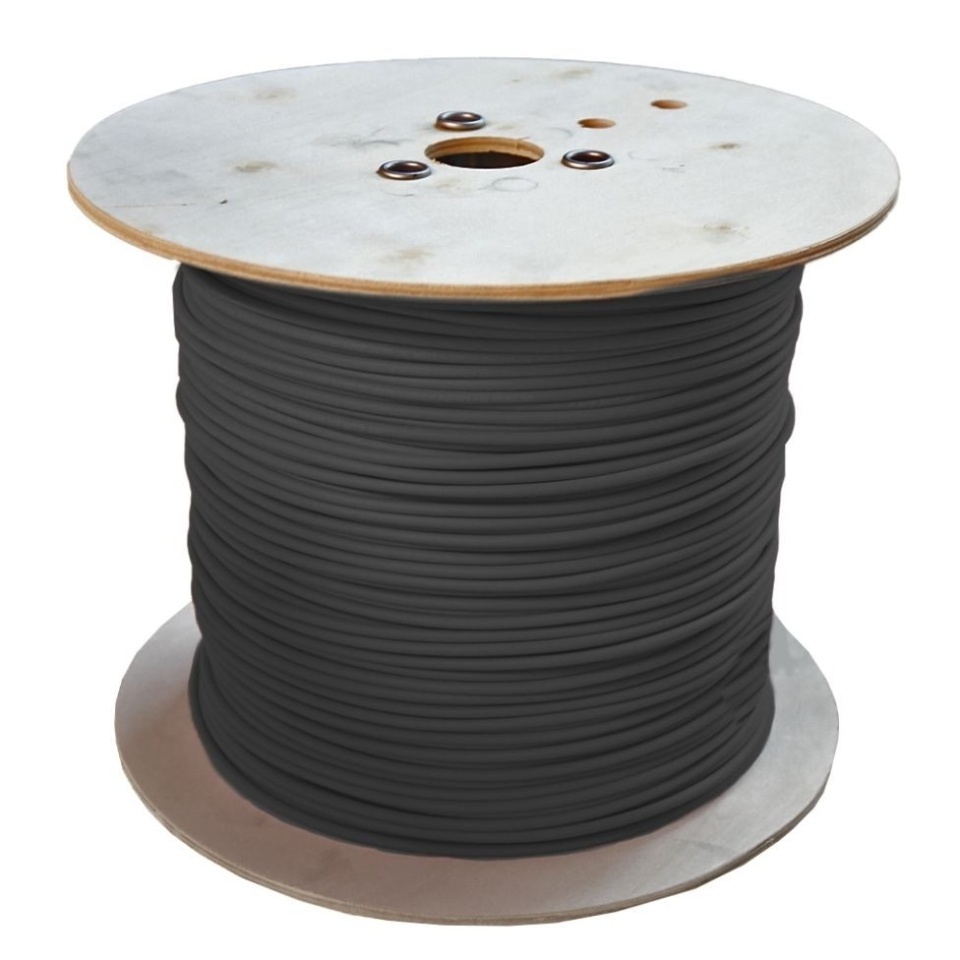

Solar cable for photovoltaic systems, cross-section area 6 mmp - BLACK

ATTENTION !!! This product is sold by linear metre. Products sold by the metre are NOT returnable.

Specifications:

- Colour: black
- Surface: 6 mm²
- Ambient temperature in operation: -40°C ~ +90°C
- Minimum ambient installation temperature: -25°C
- Can be installed outdoors or directly buried
- High water resistance
- High flexibility and bending capacity (bending radius ≥ 4 x outside diameter)
- Metre to metre marking
- Compatible with all common connectors
- TUV certifications: EN 50618 (H1Z2Z2-K), IEC 62930 (62930 IEC 131), 2 PfG 1169/10.19 (PV 1500-K)
- Made in Germany for a service life of at least 25 years according to EN 50618 / IEC 62930
- Weight: 750 g / m
- Max. resistance: 3,39 mΩ/m
- Minimum insulation: 0,53 mm

Cri crimping pliers for MC4 connectors found here

The correct cable is selected on the basis of the maximum current that must pass through that system. The table below indicates the cable size and its correspondence to the maximum current (for cables up to 5 metres total length - if there are 2 cables, the total length is the sum of them). If you can't find a thick enough cable, use two cables per connection rather than one very thick one.
