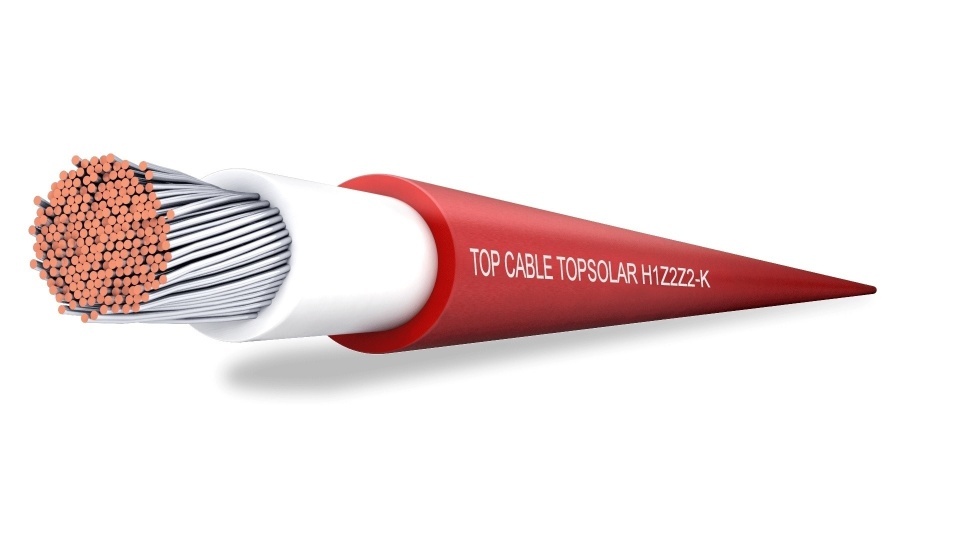

• Cable for solar panels, 1x6 mm², made in Germany, KBE Solar - RED - Img 1

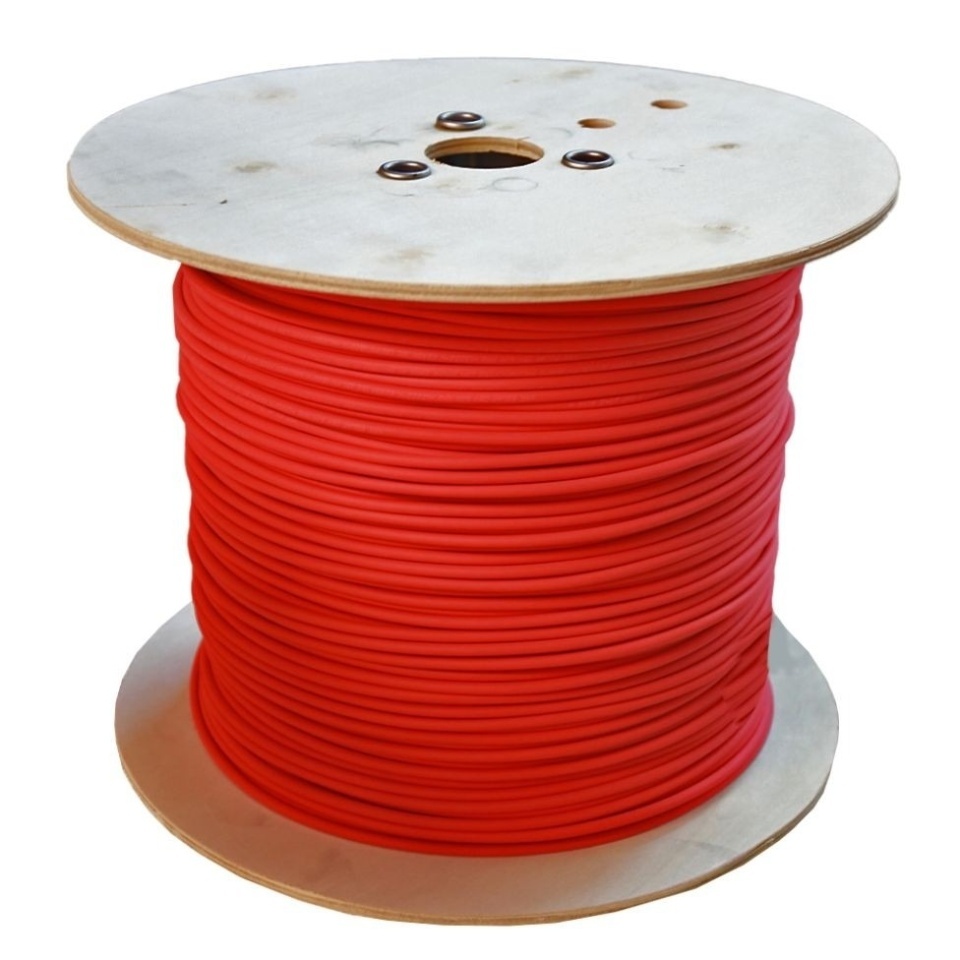

  • Cable for solar panels, 1x6 mm², made in Germany, KBE Solar - RED - Img 2

Cable for solar panels, 1x6 mm², made in Germany, KBE Solar - RED

KBE-Elektrotechnik
RON 7.00 / m liniar (VAT included)
Free shipment for orders > 60 Euro
KBE-Elektrotechnik
Product code 73060
on stock
Add to Favorites
How can we help?
Ask for details

Description

Solar cable for photovoltaic systems, cross-section area 6 mmp - RED

ATTENTION !!! This product is sold by linear metre. Products sold by the metre are NOT returnable.

Specifications:

- Colour: red
- Surface: 6 mm²
- Ambient operating temperature: -40°C ~ +90°C
- Minimum ambient temperature during installation: -25°C
- Can be installed outdoors or directly buried
- High water resistance
- High flexibility and bending capacity (bending radius ≥ 4 x outside diameter)
- Metre to metre marking
- Compatible with all common connectors
- TUV certifications: EN 50618 (H1Z2Z2-K), IEC 62930 (62930 IEC 131), 2 PfG 1169/10.19 (PV 1500-K)
- Made in Germany for a service life of at least 25 years according to EN 50618 / IEC 62930
- Weight: 750 g / m
- Max. resistance: 3,39 mΩ/m
- Minimum insulation: 0,53 mm

Cri crimping pliers for MC4 connectors found here

The correct cable is selected on the basis of the maximum current to be passed through that system. The table below indicates the cable size and its correspondence to the maximum current (for cables up to 5 metres total length - if there are 2 cables, the total length is the sum of them). If you can't find a thick enough cable, use two cables per connection rather than one very thick one.


Nominal conductor cross-section (mm²) Maximum allowable current (A)
0.50 mm² (0.50 mm²) 12 A
0.75 mm² (0.75 mm²) 15 A
1.00 mm² A 19 A
1.50 mm² A 24 A
2.50 mm² A 32 A
4.00 mm² A 42 A
6.00 mm² A 54 A
10.00 mm² A 73 A
16.00 mm² A 98 A
25.00 mm² A 129 A
35.00 mm² A 158 A
50.00 mm² A 198 A
70.00 mm² A 245 A
95.00 mm² A 292 A
