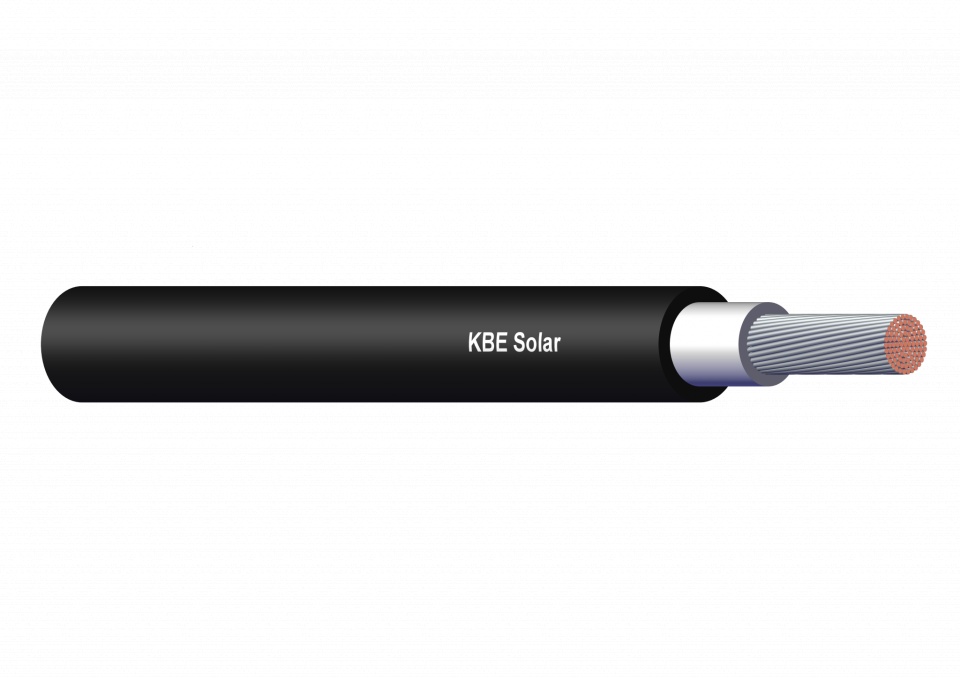

• Cable for solar systems, 1x16 mm² BLACK - Img 1

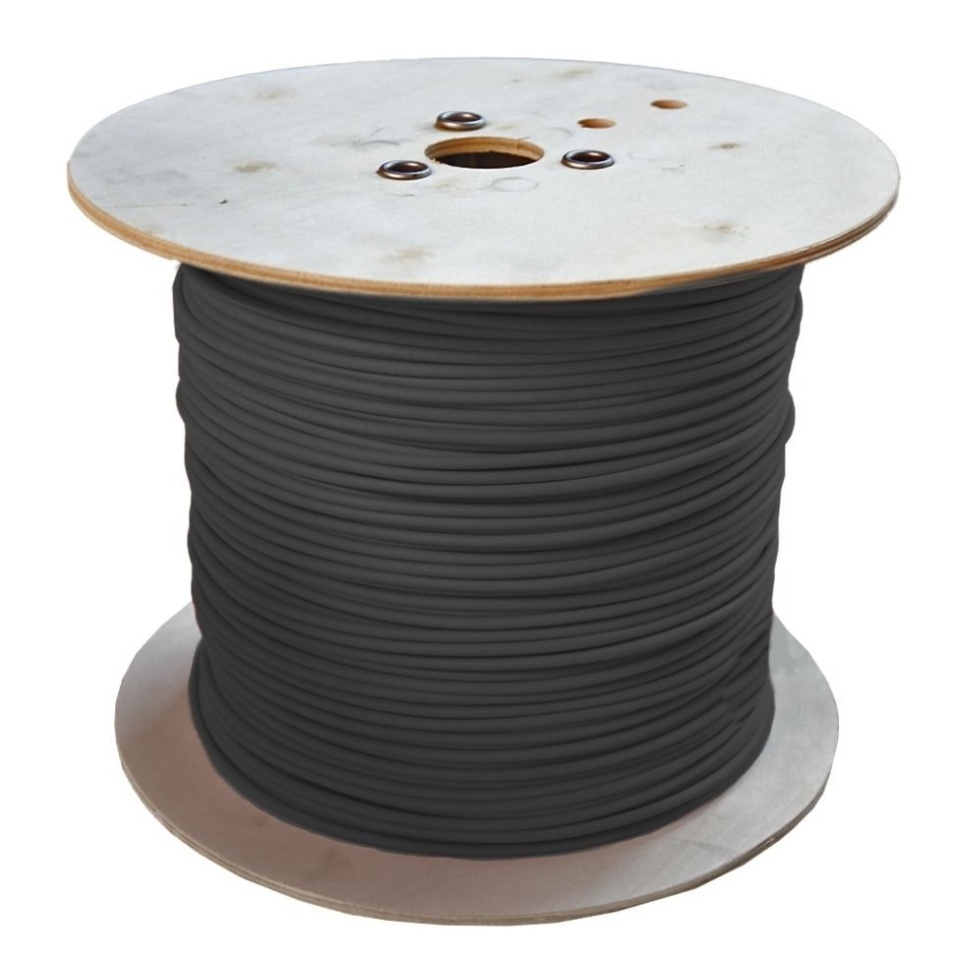

  • Cable for solar systems, 1x16 mm² BLACK - Img 2

Cable for solar systems, 1x16 mm² BLACK

RON 26.00 / m liniar (VAT included)
Free shipment for orders > 60 Euro
Product code 16548
on stock
Add to Favorites
How can we help?
Ask for details

Description

Solar cable for photovoltaic systems, cross-section area 16 mmp - BLACK

ATTENTION !!! This product is sold by linear metre. Products sold by the metre are NOT returnable.

Specifications:

- Colour: black
- Surface: 16 mm²
- Ambient temperature in operation: -40°C ~ +90°C
- Minimum ambient installation temperature: -25°C
- Can be installed outdoors or directly buried
- High water resistance
- High flexibility and bending capacity (bending radius ≥ 4 x outside diameter)
- Compatible with all common connectors
- Weight: 150 g/m


The correct cable is selected on the basis of the maximum current that must pass through that system. The table below indicates the cable size and its correspondence to the maximum current (for cables up to 5 metres total length - if there are 2 cables, the total length is the sum of them). If you can't find a thick enough cable, use two cables per connection rather than one very thick one.


Nominal conductor cross-section (mm²) Maximum allowable current (A)
0.50 mm² (0.50 mm²) 12 A
0.75 mm² (0.75 mm²) 15 A
1.00 mm² A 19 A
1.50 mm² A 24 A
2.50 mm² A 32 A
4.00 mm² A 42 A
6.00 mm² A 54 A
10.00 mm² A 73 A
16.00 mm² A 98 A
25.00 mm² A 129 A
35.00 mm² A 158 A
50.00 mm² A 198 A
70.00 mm² A 245 A
95.00 mm² A 292 A
