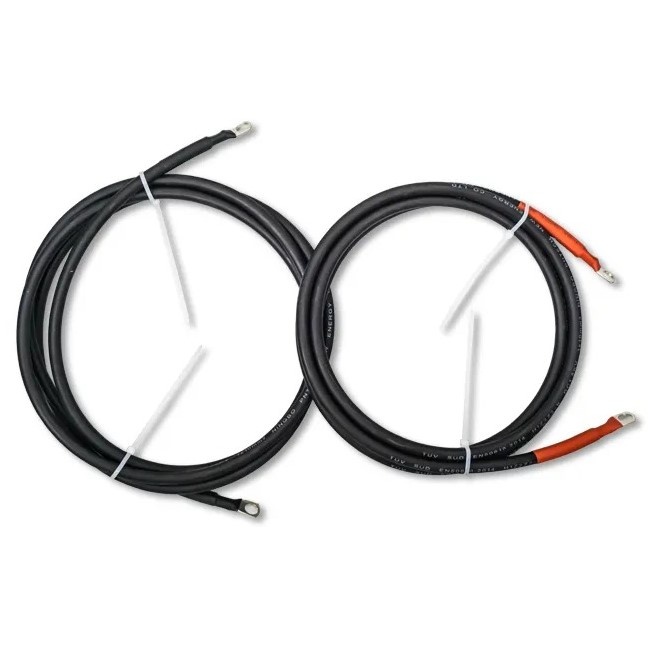

Cable section 10 mmp with M8 cable shoes, 2 pcs RED and BLACK

Ultimatron
RON 102.00 (VAT included)
Free shipment for orders > 60 Euro
Ultimatron
Product code 66990
on stock
Add to Favorites
How can we help?
Ask for details

Description

Connecting cable between batteries, 10 square metres with M8 lugs at both ends, 2 pcs RED and BLACK. This cable can be used to connect
- between 2 batteries
- inverter battery
- solar controller and battery

It is made of high quality materials. The inner conductor material has low resistivity and generates little heat.

Specifications:
Length 1 m or 2 m
Cross-section: 10 mm²
M8 sockets at both ends
Package contains 2 pcs RED and BLACK cable
Weight: 1160 g

The correct cable is selected on the basis of the maximum current that must pass through that system. The table below indicates the cable size and its correspondence to the maximum current (for cables up to 5 metres total length - if there are 2 cables, the total length is the sum of them). If you can't find a thick enough cable, use two cables per connection rather than one very thick one.


Nominal conductor cross-section (mm²) Maximum allowable current (A)
0.50 mm² (0.50 mm²) 12 A
0.75 mm² (0.75 mm²) 15 A
1.00 mm² A 19 A
1.50 mm² A 24 A
2.50 mm² A 32 A
4.00 mm² A 42 A
6.00 mm² A 54 A
10.00 mm² A 73 A
16.00 mm² A 98 A
25.00 mm² A 129 A
35.00 mm² A 158 A
50.00 mm² A 198 A
70.00 mm² A 245 A
95.00 mm² A 292 A
