Cable section 25 mmp, length 1,5 m with M8 ferrules, 2 pcs RED and BLACK

Ultimatron
RON 159.00 (VAT included)
Free shipment for orders > 60 Euro
Ultimatron
Product code 55887
on stock
Add to Favorites
How can we help?
Ask for details

Description

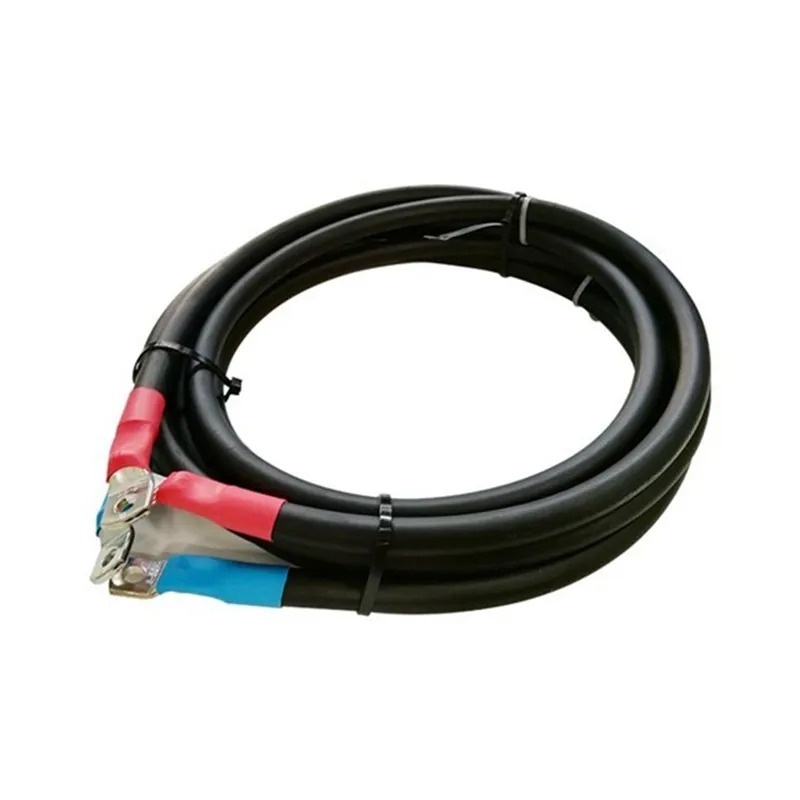

Connection cable 1.5 linear metres, 25 mmp cross-section with M8 ferrules at both ends.

This cable can be used to connect
- between 2 batteries
- inverter battery
- solar controller and battery

It is made of high quality materials. The inner conductor material has low resistivity and generates little heat.

Specifications:
Length 1.5 m
Cross-section: 25 mm²
M8 sockets at both ends
Package contains 2 pcs RED and BLACK cable
Weight: 5430 g

The correct cable is selected on the basis of the maximum current that must pass through that system. The table below indicates the cable size and its correspondence to the maximum current (for cables up to 5 metres total length - if there are 2 cables, the total length is the sum of them). If you can't find a thick enough cable, use two cables per connection rather than one very thick one.


Nominal conductor cross-section (mm²) Maximum allowable current (A)
0.50 mm² (0.50 mm²) 12 A
0.75 mm² (0.75 mm²) 15 A
1.00 mm² A 19 A
1.50 mm² A 24 A
2.50 mm² A 32 A
4.00 mm² A 42 A
6.00 mm² A 54 A
10.00 mm² A 73 A
16.00 mm² A 98 A
25.00 mm² A 129 A
35.00 mm² A 158 A
50.00 mm² A 198 A
70.00 mm² A 245 A
95.00 mm² A 292 A

Details

Categories
LiFePO4 batteries, tester, terminals, connection cables
Weight
5.43 kg
Brand
Ultimatron

Delivery

Products on stock are delivered in 2 - 4 working days
Free delivery for orders > 60 Euro (except for products with special warnings)
