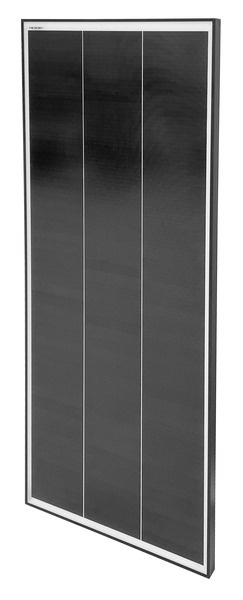

Carbest 120W monocrystalline photovoltaic panel with SHINGLE technology

Description

The CBS-120 Shingle - 120 W is a solar panel that utilises Shingle technology for increased efficiency and better performance in shaded conditions compared to traditional monocrystalline panels. Key features include its black colour, compact size, a 6 metre pre-installed cable with a universal MC4 connector and a design that allows it to generate more energy in the same space thanks to its shingle cell structure.

Key Features:
Shingle technology: the cells are cut into strips and laid on top of each other, creating a continuous electrical connection without the need for busbars.
Higher Efficiency: This design allows more active cell surface area and higher power in a compact footprint.
Shaded performance: Shingle cell wiring allows the panel to generate more power in shaded areas compared to conventional solar panels.
Compact size: The panel has a relatively small footprint, making it ideal for space-constrained applications such as caravans and motorhomes.
Integrated cable: A 6 metre cable with a standard MC4 connector is pre-installed.
Colour: Usually a black panel.

Specifications:
Power: 120 W
Rated voltage (Vmp): 20.3 V
Rated current (Imp): 5.92 A
Short circuit current (Isc): 6.28 A
Open circuit voltage (Voc): 24 V
Efficiency: 22.7 per cent
Dimensions: 1165 mm (length) x 540 mm (width) x 35/55 mm (height)
Weight: 7 kg

ATTENTION !!! Due to the size, this item has a fixed transport cost of 30 RON

Fixing brackets must be ordered separately:

• Corner profiles and if necessary connection profiles for 2 panels
• Aluminium profiles
• Set of profiles with cable feed through the ceiling
• It is recommended to glue on the caravan or caravan with "Dekasyl MS-5" or Sikaflex 554 adhesive.
