Circuit breaker 220V, 16A/3650W, Carspa IVT-220

Description

Description:

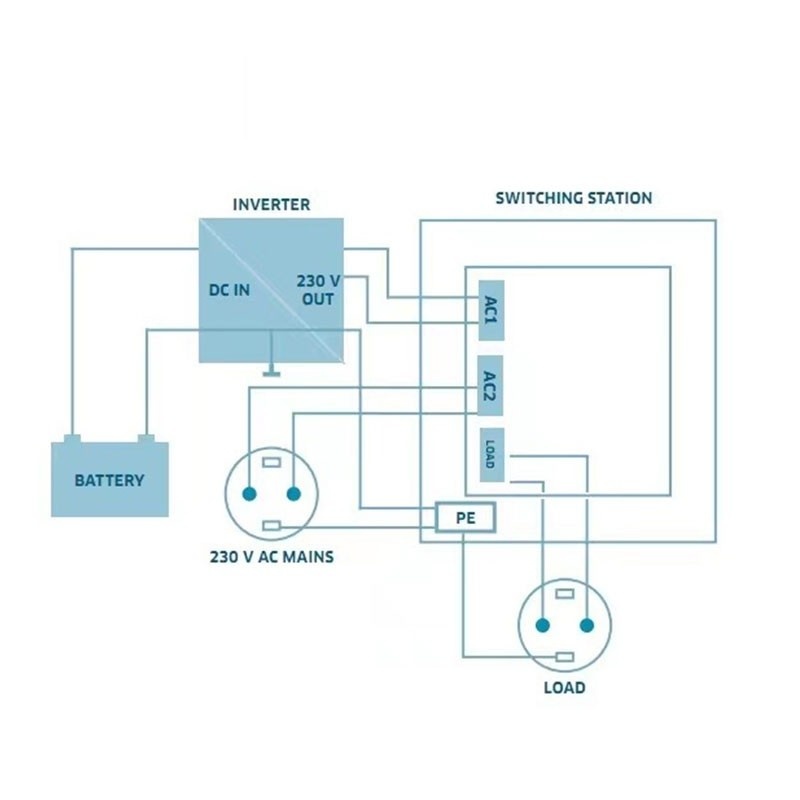

- The Carspa IVT Carspa IVT switching station allows smooth operation of an inverter and 230V AC mains in the same circuit
- Offers the possibility to choose the preferred source from two different power sources (priority circuit)
- Switching station can only be connected to 230VAC / 50Hz
- Only operate inverters with a safe electrical separation (galvanic separation) between the input circuit (battery voltage) and the output circuit (230V).
- Before installation, make sure that the inverter output as well as the 230V mains action supply are de-energised and equipped with a safety interlock to prevent unintentional switching on.
- Ensure that the connecting leads are connected correctly and have a good contact, as loose contacts can cause fires
- Do not connect the neutral conductor on the consumer side to earth or the protective earth conductor; as consumer sockets in particular do not have a multiple protection value (i.e. connecting the PE grounding wire with the neutral connector)
- It is not allowed to use the device for three-phase current

Specifications:

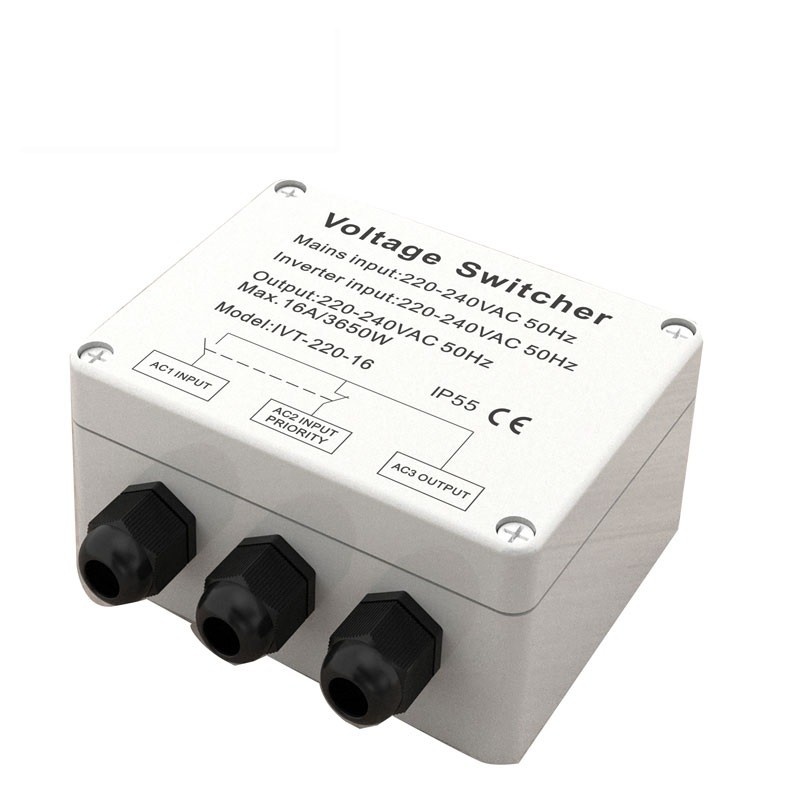

- Model: IVT-220-16
- Input voltage: 230V AC, 50Hz
- Output voltage: 230V AC, 50Hz
- Maximum current: 16A
- Maximum power: 3650VA
- Switch-over time: 1-2 seconds
- Safety: 20A / 250V
- Plastic enclosure
- IP65 protection
- Dimensions: 122.6 x 122.6 x 66.4 mm
- Weight: 190g
