Complete control panel set with accessories PC 100

Description

The PC 100 set provides starter and living area battery control, drinking water tank level control, outdoor and indoor temperature display, light control, water pump control, external light control, refrigerator control, battery relay protection fuse, car battery recharge control and minimum voltage device control.

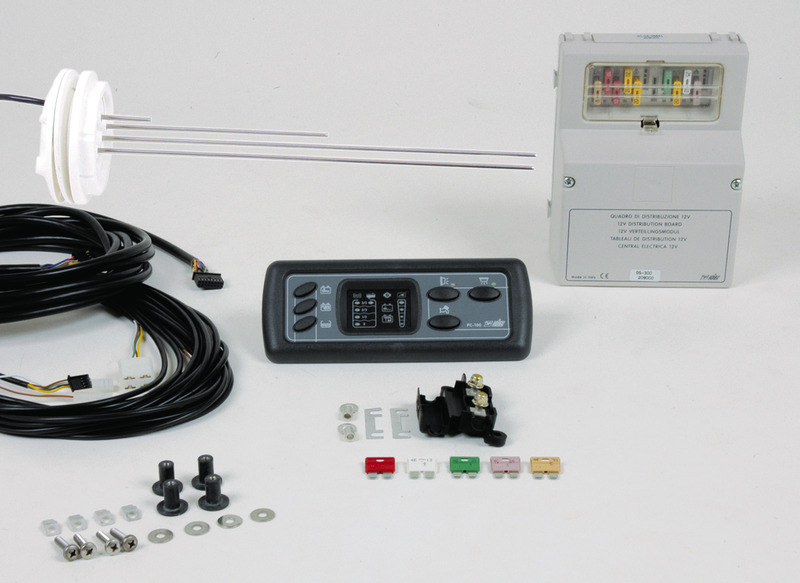

The PC 100 set contains:

- control panel
- cable and adjustable probe for clean water tank maximum height 40 cm. The probe can be shortened to the desired height.
- cable and sensors for the grey water tank (indicates when the tank is full)
- connection cable to the electric panel
- 12V fuse panel
- 50A fuse

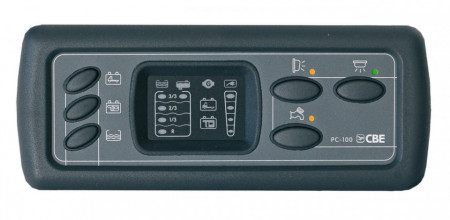

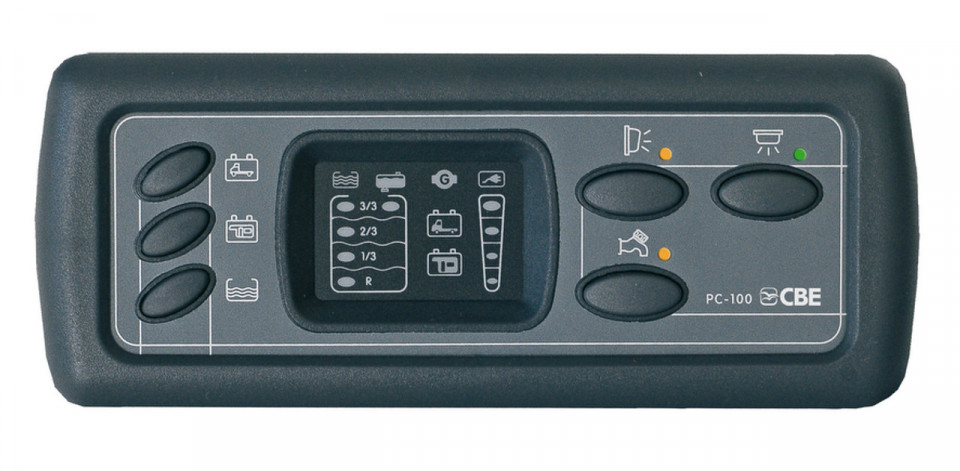

The display control panel is equipped with:
- 12V main switch with control LED
- water pump switch with control LED
- clean water level display with 4 LEDs (indicates 4 water levels)
- LED indicator for full waste water tank
- 4-LED display for vehicle and stationary battery voltage
- LED control for alternator charging indication
- 230 V control LED.

Features:

- integrated general disconnect relay
- 9 fused circuits, display for 230 V supply
- Water pump switch with relay and control LED
- Refrigerator switches off automatically when the vehicle is stationary
- Display for alternator charging
- Modern design and technology

Instructions for use and installation (Italian, English, German, French, Italian) find CB 100 Instructions

Panel dimensions: 192 x 78 mm
