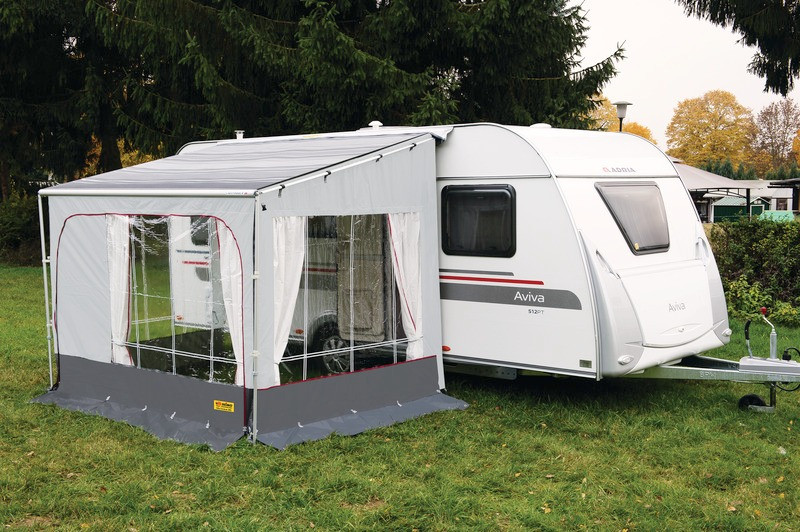

Complete set of walls for the Fiamma Caravanstore XL awning in a bag

Description

Complete set of walls (2 side walls + front wall) "Villa Store" for the Fiamma Caravanstore XL bag awning (NOT compatible with other awning models).

For the insulation between the side walls and the caravan wall, a separate protective set must be purchased separately

Specifications:

• Very easy to install
• It is compatible with awnings with a height of 210 cm (= distance between the ground and the saddle into which the awning is inserted) and a classic extension of 240 cm
• Includes anchoring nails and stringline and carrying bag
• Windows are fitted with curtains
• Weight 11-13kg, depending on the specific size chosen
• Water column resistance: 1000mm
• With 2 aluminium rods Ø 25/28mm for top side fixing
• Material: 100% 210D polyester 210D Oxford

Length is chosen according to the length/model of the awning:
Awning model: 310XL / Villa Store length: 285cm
Awning model: 360XL / Villa Store length: 335cm
Awning model: 410XL / length Villa Store: 385cm
Marquise model: 440XL / length Villa Store: 415cm

The length of the front panel is 25 cm shorter than the length of the box. The front wall is inserted into the saddle, then centred in the box and attached to the side walls, then the entire assembly is tensioned.
