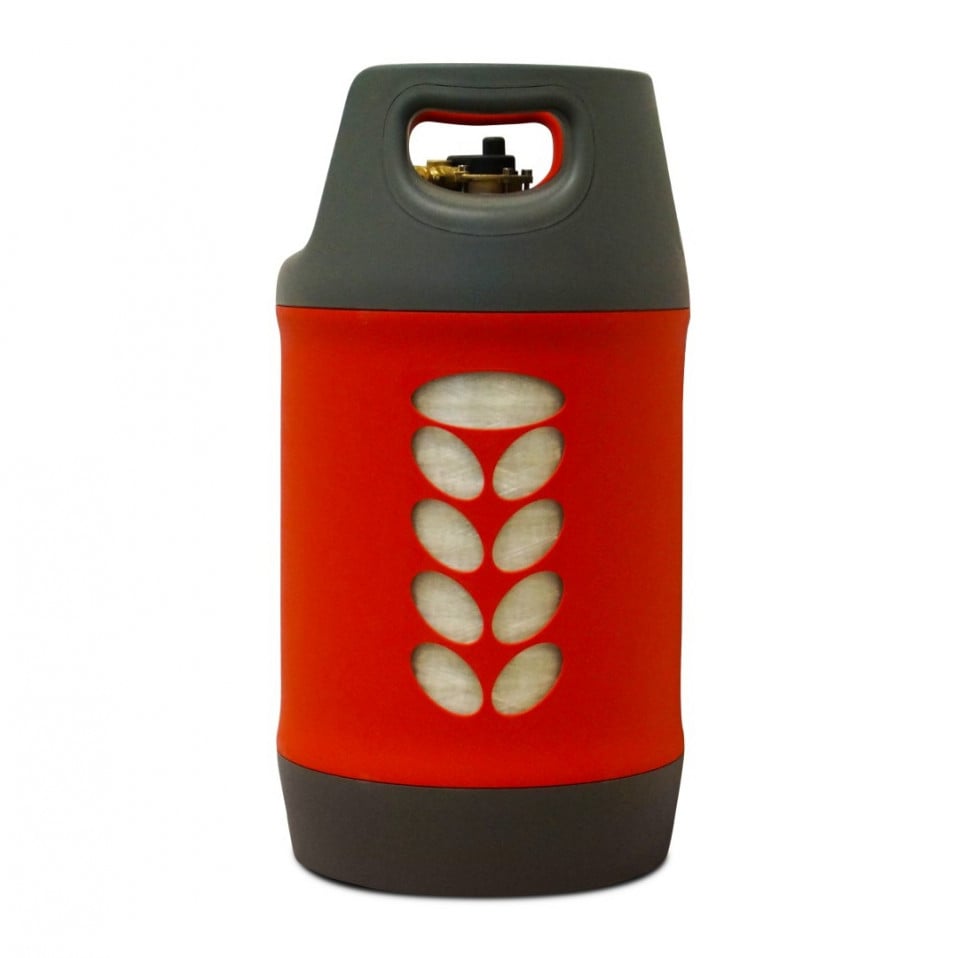

Composite refillable LPG tank with multivalve and filling indicator, 24/19,5l

Description

LPG tank made of composite material refillable with multivalve. Thanks to the material used, this cylinder is very light, does not rust and has a high resistance over time. Also, thanks to its transparency, the filling level can be visually checked.
This model has the same dimensions as the classic 11kg cylinder (585 x 300 mm) and can be easily installed in its place and refuelled with LPG from any station in Romania or in Europe. In most European countries, LPG refuelling is allowed only in special LPG cylinders / tanks.

Fuelling can be done

• directly into the cylinder by using anextension and adaptors for Romania (DISH),the Netherlands (bayonet),Germany (ACME) or Spain (Euronozzle) which must be purchased separately.
• through a nozzle (not included in the package) which can be installed on the vehicle wall or on the service door and which can be purchased separately from here

What is the difference between standard and refillable gas cylinders? The CAMPKO refillable LPG cylinder/refillable tank is equipped with an overfill protection mechanism that prevents overfilling by limiting it to 80% of the total capacity. If the cylinder is filled above this level, under certain conditions (e.g. excessive heat) there is a risk that the liquefied gas inside may expand and damage the valves, taps, filters etc or even explode. The 80 per cent safety level is not possible to control in the case of a conventional cylinder that is filled with LPG in a homemade way.

In addition to the overfill protection mechanism, the CAMPKO cylinder/tank is fitted with a safety valve configured to open at a pressure of 27 bar.

Instructions for use can be found here

Specifications:

• Material: composite
• Overfill valve: yes, limits to 80% of nominal capacity
• Safety valve: yes, max 27 bar
• Gross volume: 24,4l / net volume 19,52 litres (= 80%)
• Weight (without gas): 6,52 kg
• Filling level indicator: directly visible due to transparent walls.
• LPG fuelling: thread 3/4-16 UNF (right)
• LPG outlet: G12 (W21,8 x 1/14 left) Germany cylinder type (adaptor for Romania G2 can be purchased here )
• Height including collar: 583 mm
• Diameter: 310 mm
• Homologation norm 2010/35/EU + 2014/68/EU; ADR/RID 2015; ISO11119-3:2002
