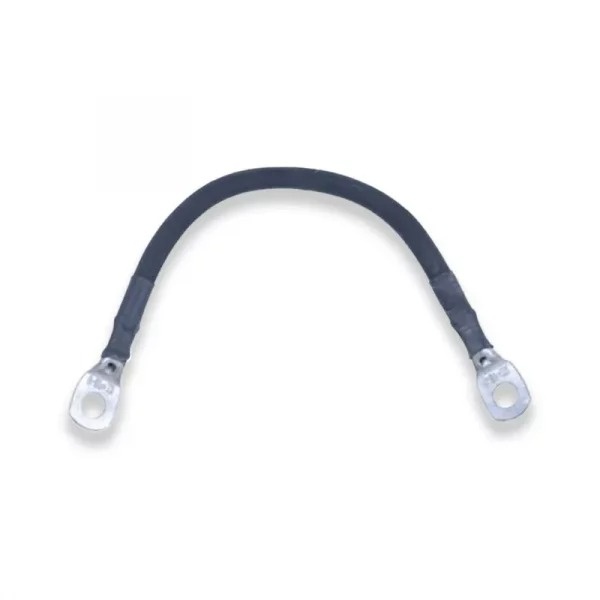

Connecting cable between batteries, diameter 16 mm², length 20cm, M8, 1 pc

RON 21.00 (VAT included)
Free shipment for orders > 60 Euro
This product is currently not available. Want to get notified when it's back?
Product code 89932
out of stock
Add to Favorites
How can we help?
Ask for details

Description

The cable connecting 2 batteries has a cross-section of 16mm² and is made of high quality materials. The internal conductor material has low resistivity and generates little heat. It is provided with M8 connectors for the battery terminal.

Specifications:
Length 20 cm
Cross section 16 mm²
M8 capsules

Package contains 1 pc

The correct cable is selected on the basis of the maximum current that must pass through that system. The table below indicates the cable size and its correspondence to the maximum current (for cables up to 5 metres total length - if there are 2 cables, the total length is the sum of them). If you can't find a thick enough cable, use two cables per connection rather than one very thick one.


Nominal conductor cross-section (mm²) Maximum allowable current (A)
0.50 mm² (0.50 mm²) 12 A
0.75 mm² (0.75 mm²) 15 A
1.00 mm² A 19 A
1.50 mm² A 24 A
2.50 mm² A 32 A
4.00 mm² A 42 A
6.00 mm² A 54 A
10.00 mm² A 73 A
16.00 mm² A 98 A
25.00 mm² A 129 A
35.00 mm² A 158 A
50.00 mm² A 198 A
70.00 mm² A 245 A
95.00 mm² A 292 A

Details

Categories
LiFePO4 batteries, tester, terminals, connection cables
Weight
0.01 kg

Delivery

Products on stock are delivered in 2 - 4 working days
Free delivery for orders > 60 Euro (except for products with special warnings)
