Connecting cable between batteries, diameter 25mm², length 20cm, M8, 1 pc

Ultimatron
RON 27.00 (VAT included)
Free shipment for orders > 60 Euro
Ultimatron
Product code 965122
on stock
Add to Favorites
How can we help?
Ask for details

Description

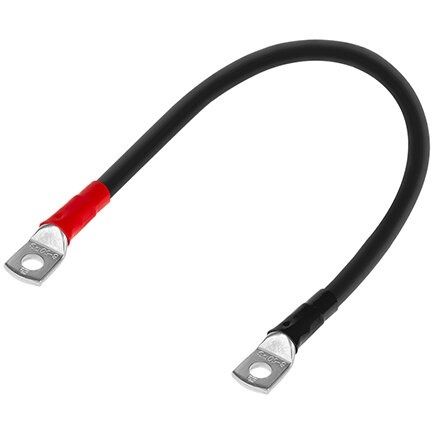

The cable connecting 2 batteries has a cross-section of 25 mm² and is made of high-quality materials. The internal conductor material has low resistivity and generates little heat. It is provided with M8 connectors for the battery terminal.

Specifications:
Length 20 cm
Cross section 25 mm²
M8 connector at both ends
Colour: red
Weight: 360 g

Package contains 1 piece

The correct cable is selected on the basis of the maximum current to be passed through that system. The table below shows the cable size and its correspondence to the maximum current (for cables up to 5 metres total length - if there are 2 cables, the total length is the sum of them). If you can't find a thick enough cable, use two cables per connection rather than one very thick one.


Nominal conductor cross-section (mm²) Maximum allowable current (A)
0.50 mm² (0.50 mm²) 12 A
0.75 mm² (0.75 mm²) 15 A
1.00 mm² A 19 A
1.50 mm² A 24 A
2.50 mm² A 32 A
4.00 mm² A 42 A
6.00 mm² A 54 A
10.00 mm² A 73 A
16.00 mm² A 98 A
25.00 mm² A 129 A
35.00 mm² A 158 A
50.00 mm² A 198 A
70.00 mm² A 245 A
95.00 mm² A 292 A

Details

Categories
LiFePO4 batteries, tester, terminals, connection cables
Weight
0.36 kg
Brand
Ultimatron

Delivery

Products on stock are delivered in 2 - 4 working days
Free delivery for orders > 60 Euro (except for products with special warnings)
