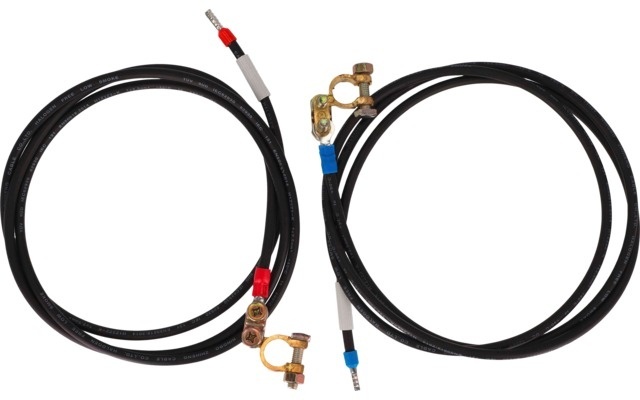

Connection cable between battery with terminals and consumers, 1.5 m

RON 49.00 (VAT included)
Free shipment for orders > 60 Euro
Product code 62344
on stock
Add to Favorites
How can we help?
Ask for details

Description

Connection cable between battery with terminals and consumers.

Specifications:
Length 1,5 m
Cross section: 2,5 mm²
Connection for 12 mm terminals
Package contains 2 pieces of cable marked red and blue

The correct cable is selected on the basis of the maximum current to be passed through that system. The table below indicates the cable size and its correspondence to the maximum current (for cables up to 5 metres total length - if there are 2 cables, the total length is the sum of them). If you can't find a thick enough cable, use two cables per connection rather than one very thick one.


Nominal conductor cross-section (mm²) Maximum allowable current (A)
0.50 mm² (0.50 mm²) 12 A
0.75 mm² (0.75 mm²) 15 A
1.00 mm² A 19 A
1.50 mm² A 24 A
2.50 mm² A 32 A
4.00 mm² A 42 A
6.00 mm² A 54 A
10.00 mm² A 73 A
16.00 mm² A 98 A
25.00 mm² A 129 A
35.00 mm² A 158 A
50.00 mm² A 198 A
70.00 mm² A 245 A
95.00 mm² A 292 A

Details

Categories
LiFePO4 batteries, tester, terminals, connection cables

Delivery

Products on stock are delivered in 2 - 4 working days
Free delivery for orders > 60 Euro (except for products with special warnings)
