Control block complete with display and accessories EBL 211

Description

The EBL 211 electronic block with LT 453 display includes the 18A battery charging module and co-ordinates the entire 12 V circuit of the camper or motorhome. LT 453 control panel and complete connection material (including probes for 2 water tanks) are included in the set.

Features:

- protection against complete battery discharge.
- Solar regulator port.
- 12V fuse block for the different circuits.
- it is possible to connect AES fridges.

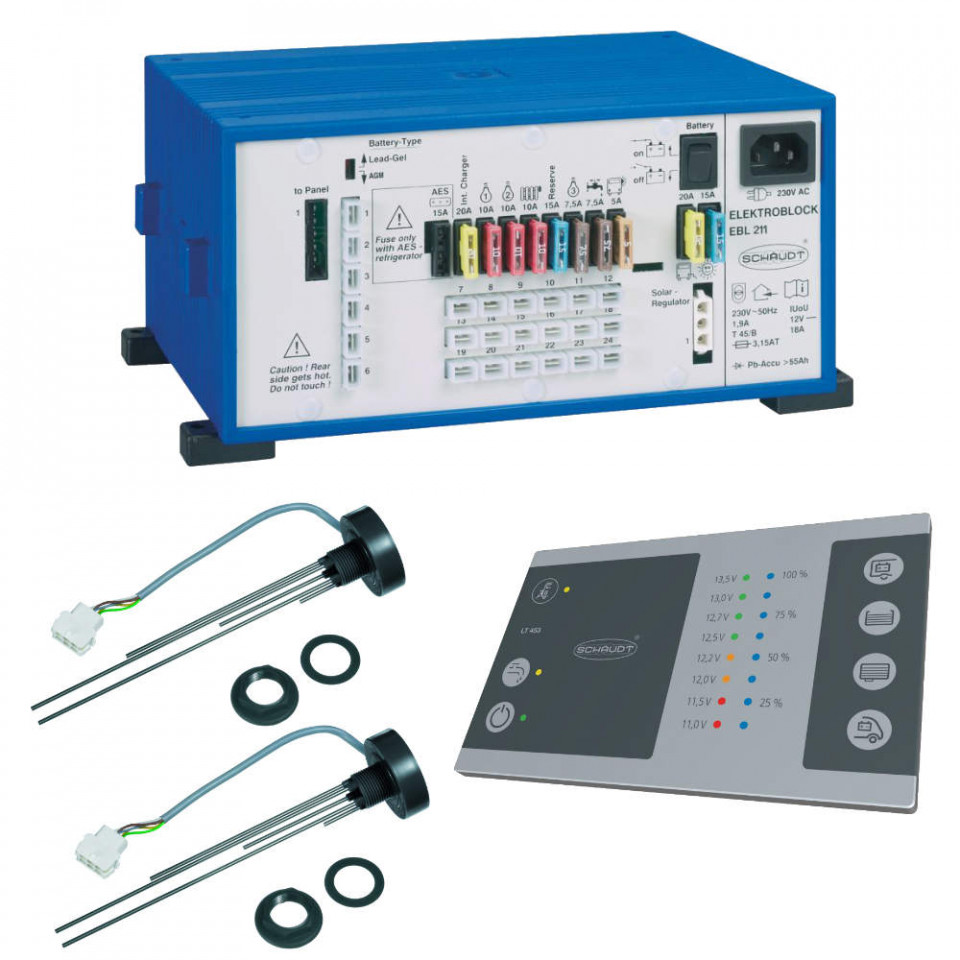

Package includes:
1x LT 453 drilling template,
1x cable for electrical connection
1x additional parts for EBL 211,
1x connection diagram EBL 211,
1x BA and assembly instructions EBL 211,
1x control block EBL 211
1x control panel LT 453,
2x 8m cables for connection of water level probes
2x water level probes with rod M 400
1x panel connection cable (Nexus Micro) 6m

English operating instructions can be downloaded here

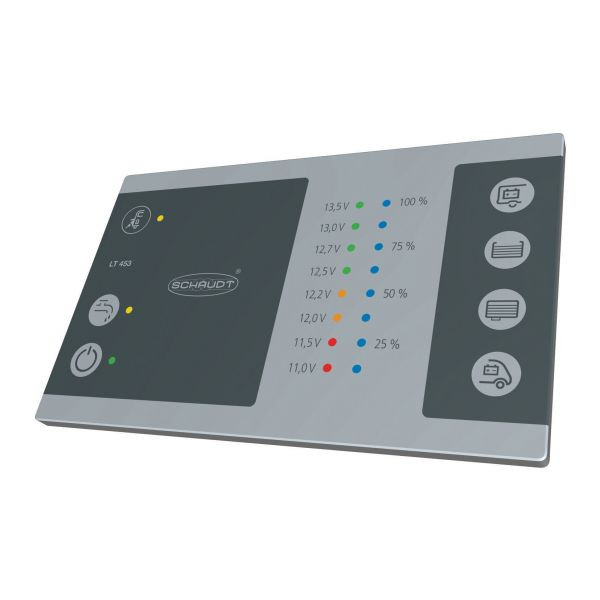

Control panel LT 453

LED display
8-level voltage indicator for 2 batteries
Visual alarm when battery voltage is very low
4 level display for 2 water tanks
12 V main switch with start control
230 V mains control
Water pump switch
Dimensions (L x W x H): 180 x 25 x 112 mm

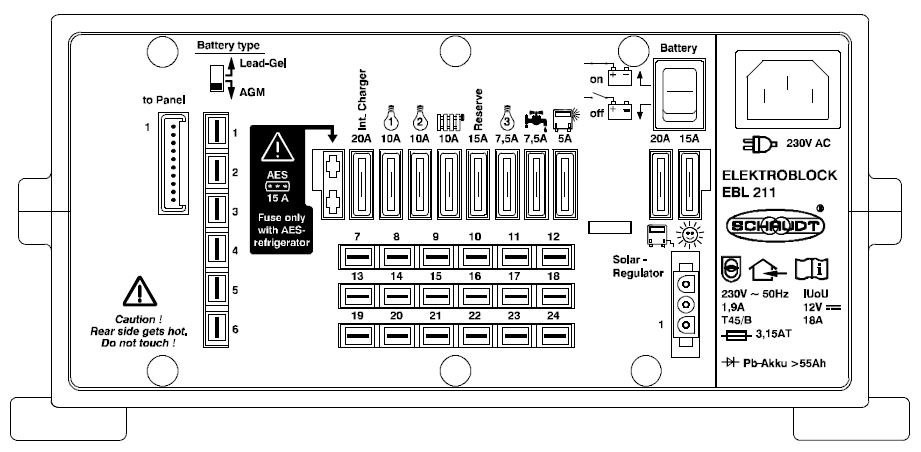

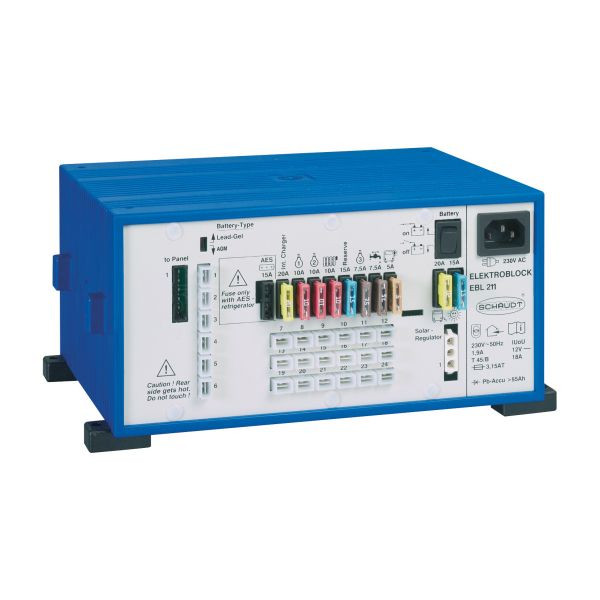

Electronic block EBL 208 S/211

12 V main switch relay and battery monitoring mode
Charging mode: IUoU characteristic curve, 18 A charging current for 6-cell lead-acid, lead-gel and AGM batteries
Connection for solar panel controller LR(M) 1218
EBL 211 electric contains 18A charger for AGM or Gel batteries
Circuit breaker for battery switch-off in winter (no idle power consumption)
Voltage display for switching off 12V consumers in case of secondary battery undervoltage.
12 V outputs with individual fuses, partially switchable via relays.
Parallel charging of secondary and starter battery.
Dimensions (L x W x H): 275 x 170 x 130 mm
