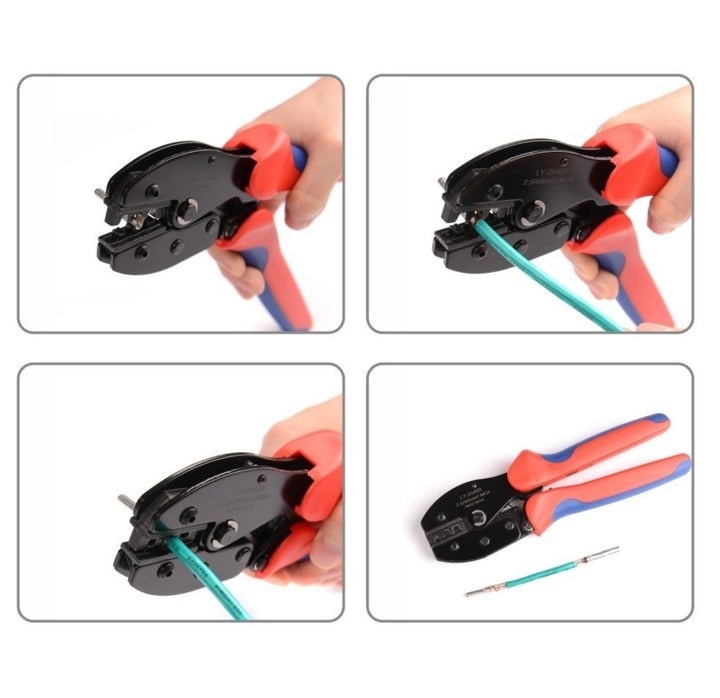

• Crimping pliers for MC4, 2,5, 4, 6mm² pins - Img 1

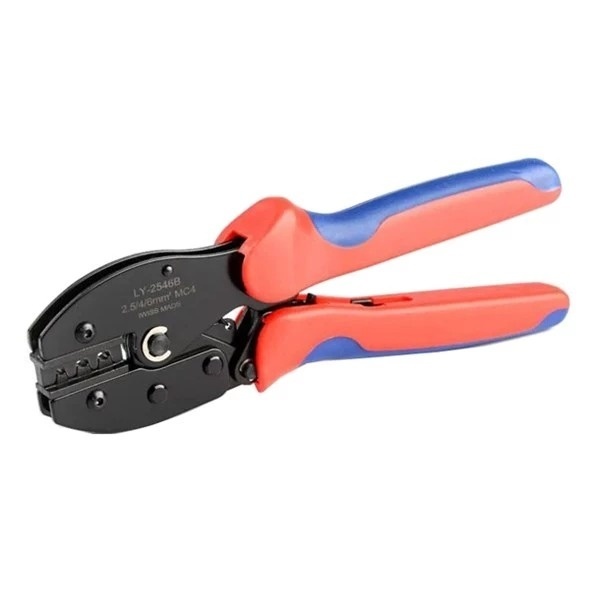

  • Crimping pliers for MC4, 2,5, 4, 6mm² pins - Img 2

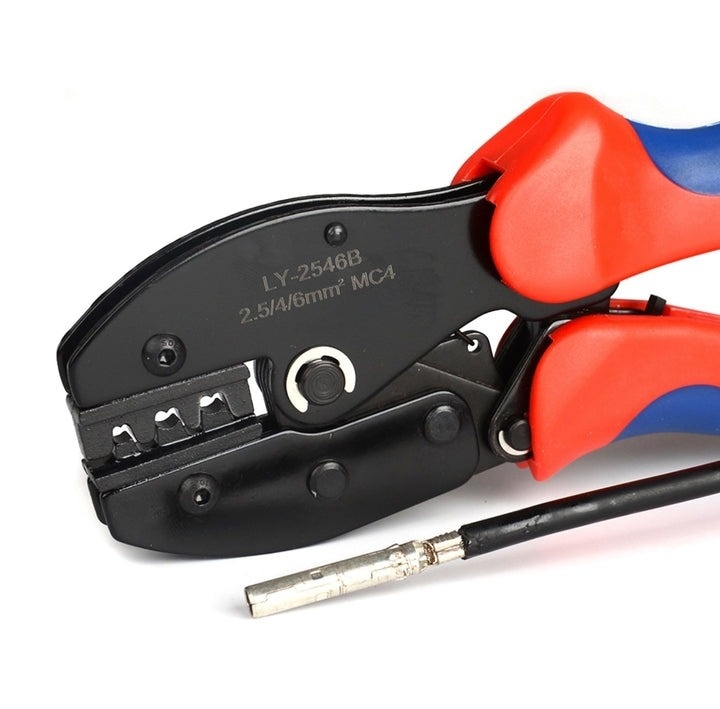

  • Crimping pliers for MC4, 2,5, 4, 6mm² pins - Img 3

Crimping pliers for MC4, 2,5, 4, 6mm² pins

RON 85.00 (VAT included)
Free shipment for orders > 60 Euro
This product is currently not available. Want to get notified when it's back?
Product code 61098
out of stock
Add to Favorites
How can we help?
Ask for details

Description

Cri crimping pliers for MC4, 2,5, 4, 6mm² pins. The pliers is used for crimping the pins from the father and mother solar connectors to 2,5, 4, and 6 mm² solar cables. The die design and full crimping ensures high quality crimping operation.

Specifications:

Crimp dimensions: 2.5/4/4/6 mm²
Crimp shape: Round crimp
For: MC4 pins
Handle material: Nylon
Handle colour: Red/Blue
Press material: Steel alloy
Length: 220 mm
Weight: 0.60 kg

The correct cable is selected on the basis of the maximum current that must pass through that system. The table below shows the cable size and its correspondence to the maximum current (for cables up to 5 metres total length - if there are 2 cables, the total length is the sum of them). If you can't find a thick enough cable, use two cables per connection rather than one very thick one.


Nominal conductor cross-section (mm²) Maximum allowable current (A)
0.50 mm² (0.50 mm²) 12 A
0.75 mm² (0.75 mm²) 15 A
1.00 mm² A 19 A
1.50 mm² A 24 A
2.50 mm² A 32 A
4.00 mm² A 42 A
6.00 mm² A 54 A
10.00 mm² A 73 A
16.00 mm² A 98 A
25.00 mm² A 129 A
35.00 mm² A 158 A
50.00 mm² A 198 A
70.00 mm² A 245 A
95.00 mm² A 292 A

Details

Categories
Solar panels, accessories
Weight
0.6 kg

Delivery

Products on stock are delivered in 2 - 4 working days
Free delivery for orders > 60 Euro (except for products with special warnings)
