DC-DC Booster DC-DC charger with additional output for fridge

Description

Carbest's DC-DC boosters with 25A or 40A output charge your on-board or secondary battery quickly and reliably from your engine alternator when the engine alternator is running. The IUoU charging feature supplies the battery with a constant current and appropriate voltage.

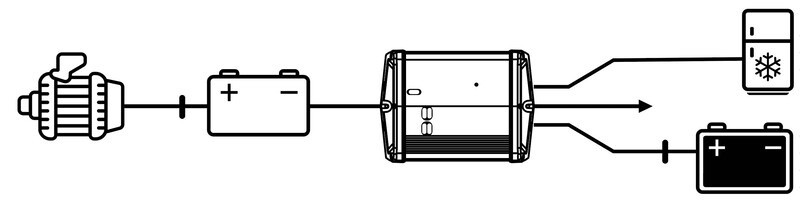

This model can power (during engine operation) the refrigerator directly (max 18A)
It is provided with built-in under-voltage and over-voltage as well as reverse polarity protection.

Specifications

• Compatible with Euro 5/6 vehicles)
• Built-in fuses (B1, B2 and fridge)
• Easy plug & play installation
• E2 approved for installation in vehicles (E marked and CE certified)

• Dim: 200 x 142 x 72.5 mm
• Multifunctional LED display

Instructions for use can be downloaded here

The min/max charging current is specified in the individual specifications of each battery model and is generally:

10A for batteries 15 - 100 Ah
15A for batteries 20 - 150 Ah
20A for batteries 25 - 200 Ah
30A for batteries 45 - 280 Ah
40A for batteries 50 - 400 Ah
