Deluxe 100 W complete photovoltaic system for caravans or motorhomes, panel dimensions: 119.5 x 45.2 x 2.5 cm

Description

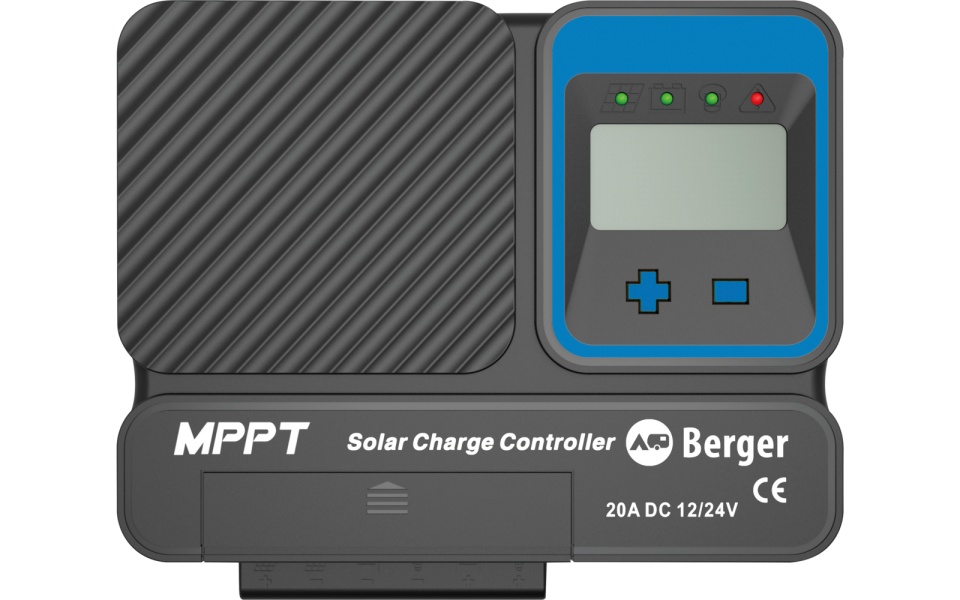

The 100 W monocrystalline solar panel has a high efficiency of approximately 23 per cent, whilst being both lightweight and efficient. The 20 A MPPT charge controller included in the pack is specially designed to extract maximum power from the solar panel and is compatible with lead-acid, gel, flooded and lithium batteries. The current setting is for lithium batteries, but can be easily adjusted if necessary (see the user manual).

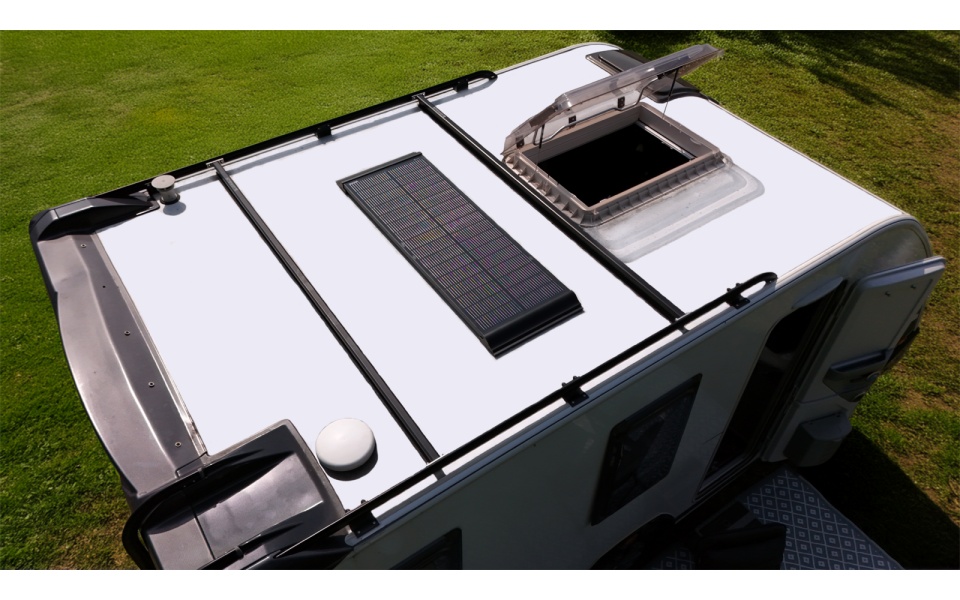

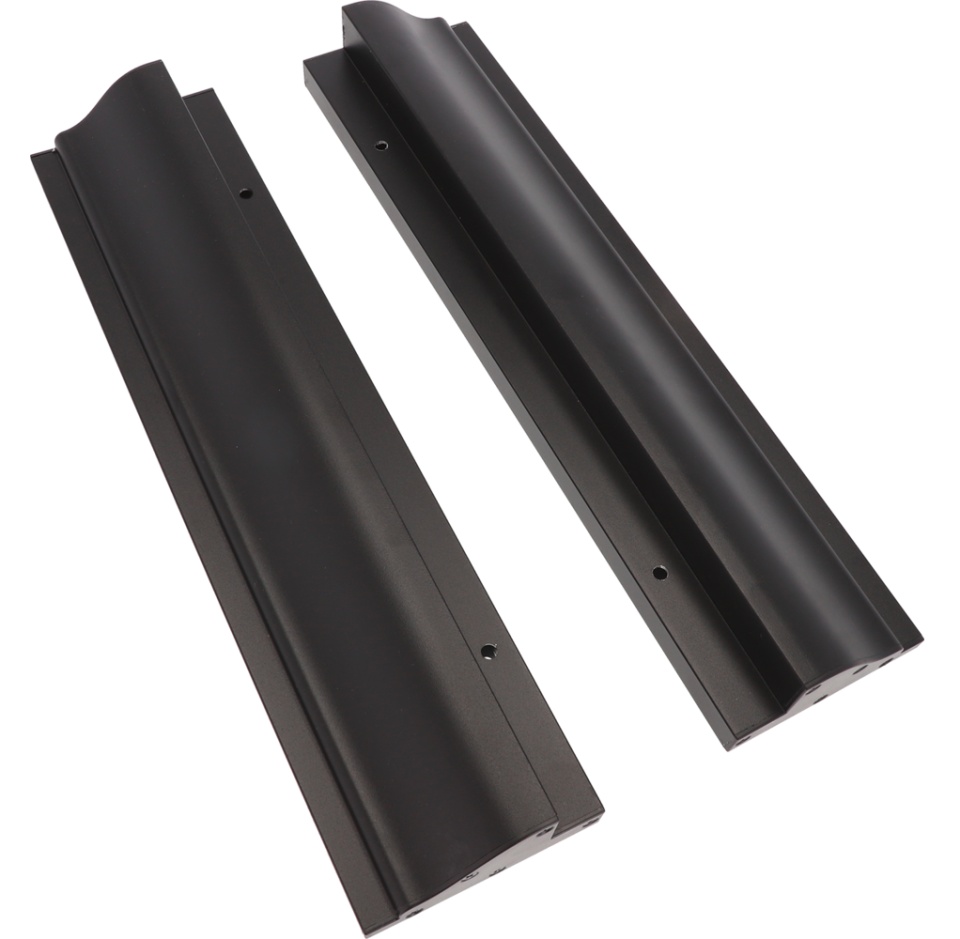

The metal spoilers are fitted separately and offer the advantage of allowing the solar module to be adapted to the vehicle’s roof configuration.

Features:

• Highly resistant to extreme weather conditions
• Ideal for long-term use on motorhomes and caravans
• Exceptionally high efficiency: approximately 23% efficiency – optimal utilisation of sunlight
• Compatible with all standard battery types used in caravanning

Technical specifications:

• Power (Wp): 100 W
• Cell type: monocrystalline
• Energy output/day (average): 400 Wh
• Nominal voltage (Vmp): 18.24 V
• Rated current (Imp): 5.89 A
• Open-circuit voltage (Voc): 21.34 V
• Short-circuit current (Isc): 5.83 A
• Standard test conditions (STC): AM = 1.5, temperature = 25 ± 2 ℃, 1000 W/m²

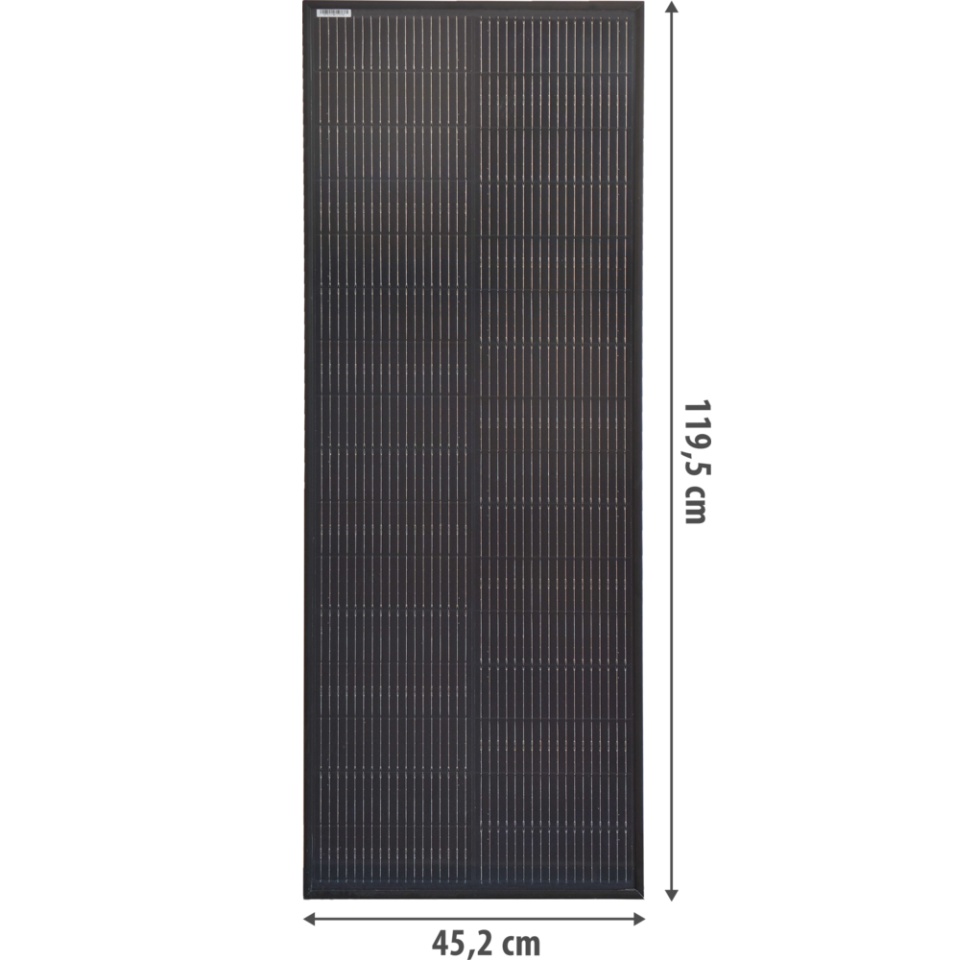

• Dimensions (L x W x H): 119.5 x 45.2 x 2.5 cm
• Weight: 5.2 kg

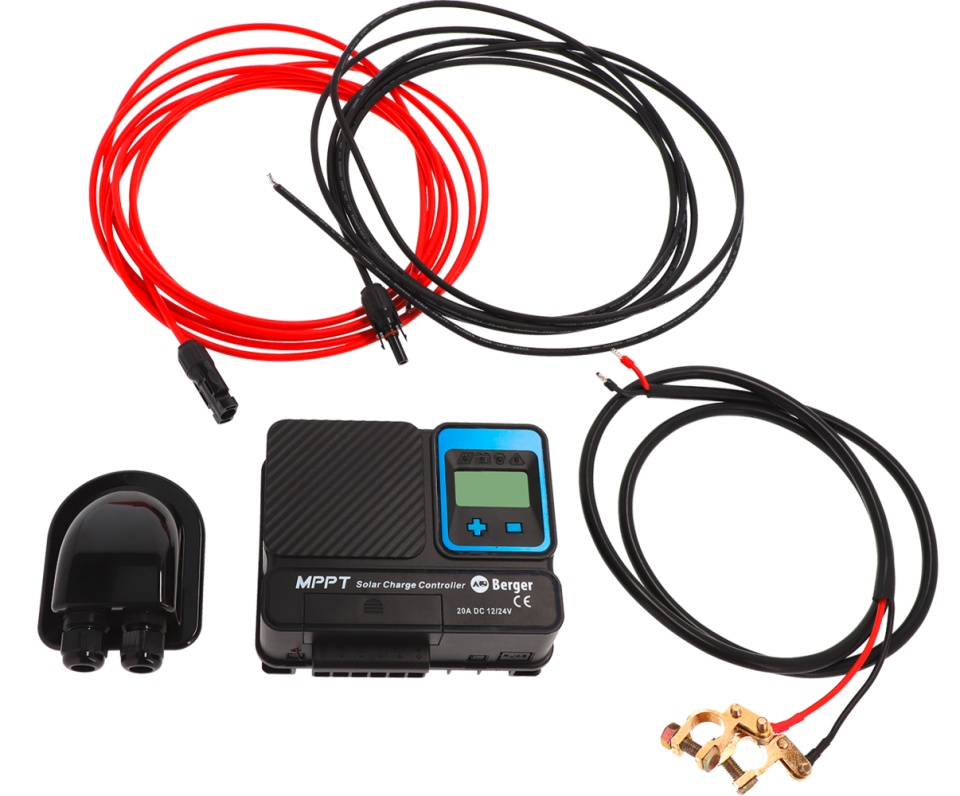

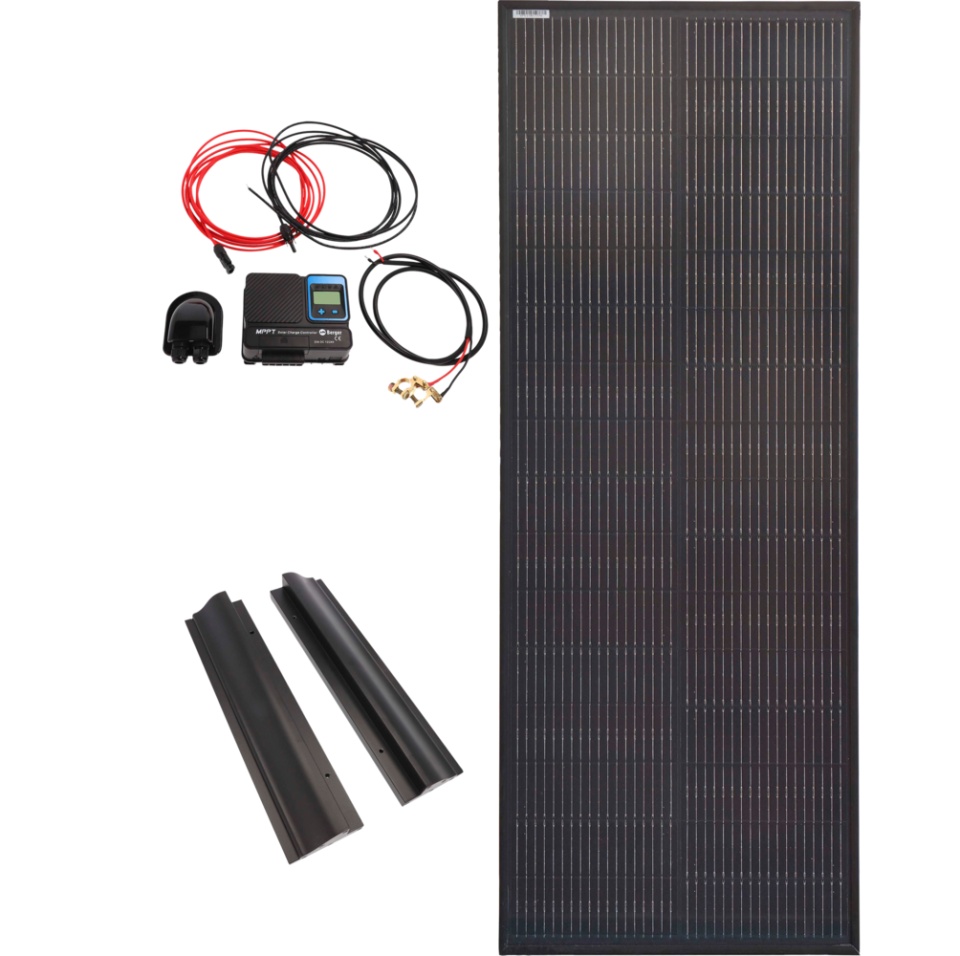

Package contents:

• 1 x solar panel
• 1 x 20A MPPT charge controller
• 2 x spoilers
• 1 x 5 m cable
• 1 x roof feed-through
• 1 x user manual
