Dometic Seitz Seitz S4/S5 replacement window, lengths between 1100 - 1450 mm

Description

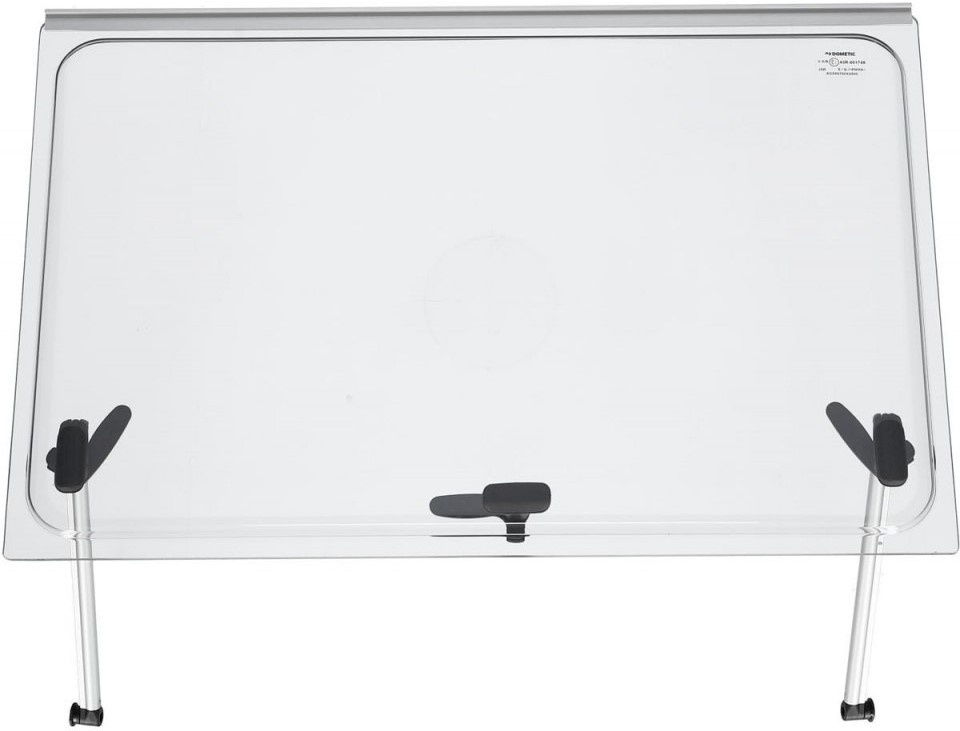

Replacement window Dometic Seitz Seitz S4/S5. The window is delivered ready equipped with arms, locking handles and mounting rail. The glass is transparent with a slight grey tint.

The size to be ordered is the size of the cut-out (recess) of the window.

ATTENTION !!! The windows are NOT in local stock and are brought as a result of an order placed on our website. After placing the order, we check availability with the supplier and contact you to confirm the delivery time which is usually within 10 - 30 days.

How do you identify the size required for your replacement glass order:

The Dometic Seitz S4/S5 windows have 90º glass corners (the corners are NOT rounded like S7 windows) and have the same glass. The difference between the S4 and S5 is the type of blind inside.

To correctly identify the size, look for the code A??????????? (e.g. AGS50700X0300) on the sticker stuck between the 2 panes in the top right hand corner of the window when viewed from the outside of the vehicle.

The S4 and S5 windows both have the S5 code, but the replacement windows are all the same.

If you no longer have the glass, then there is a size stamp in the upper left upper corner of the window frame.

Another method is to measure the outside window frame. The outer frame is 44/45 mm longer and 30/31 mm higher than the cut-out (gap) of the fitting. For example, the dimensions of the outer frame for a 700mm x 300mm gap will be 745 mm x 330 mm.The gap size corresponds to the ordering size of the replacement glazing (in the above example 700 x 300).

The Dometic S4 window range covers the following cut-out variants:

300 x 500 mm
350 x 500 mm
500 x 300 mm
500 x 350 mm
500 x 450 mm
500 x 500 mm
550 x 550 mm
550 x 600 mm
600 x 500 mm
600 x 600 mm
700 x 300 mm
700 x 400 mm
700 x 450 mm
700 x 500 mm
700 x 550 mm
700 x 600 mm
750 x 600 mm
800 x 350 mm
800 x 450 mm
900 x 400 mm
900 x 450 mm
900 x 500 mm
900 x 600 mm
1000 x 450 mm
1000 x 550 mm
1000 x 600 mm
1000 x 800 mm
1100 x 450 mm
1100 x 550 mm
1200 x 300 mm
1200 x 500 mm
1200 x 600 mm
1300 x 600 mm
1450 x 550 mm
1450 x 600 mm
