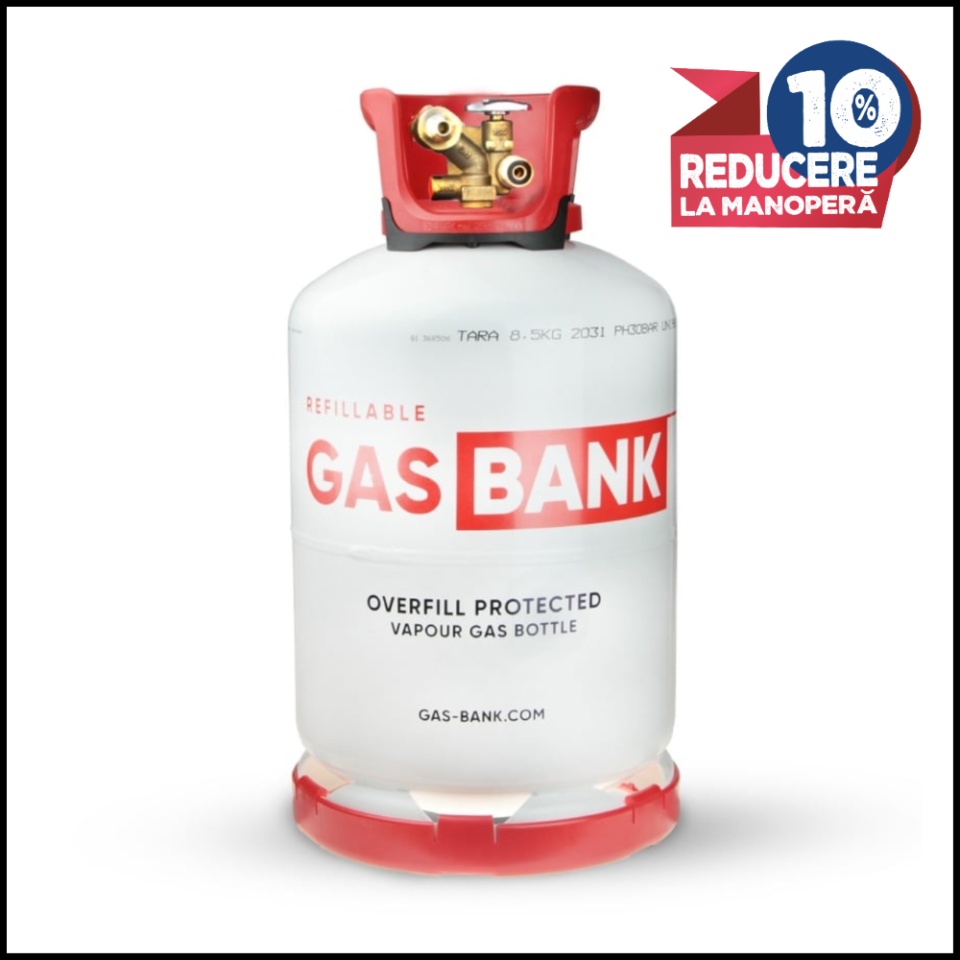

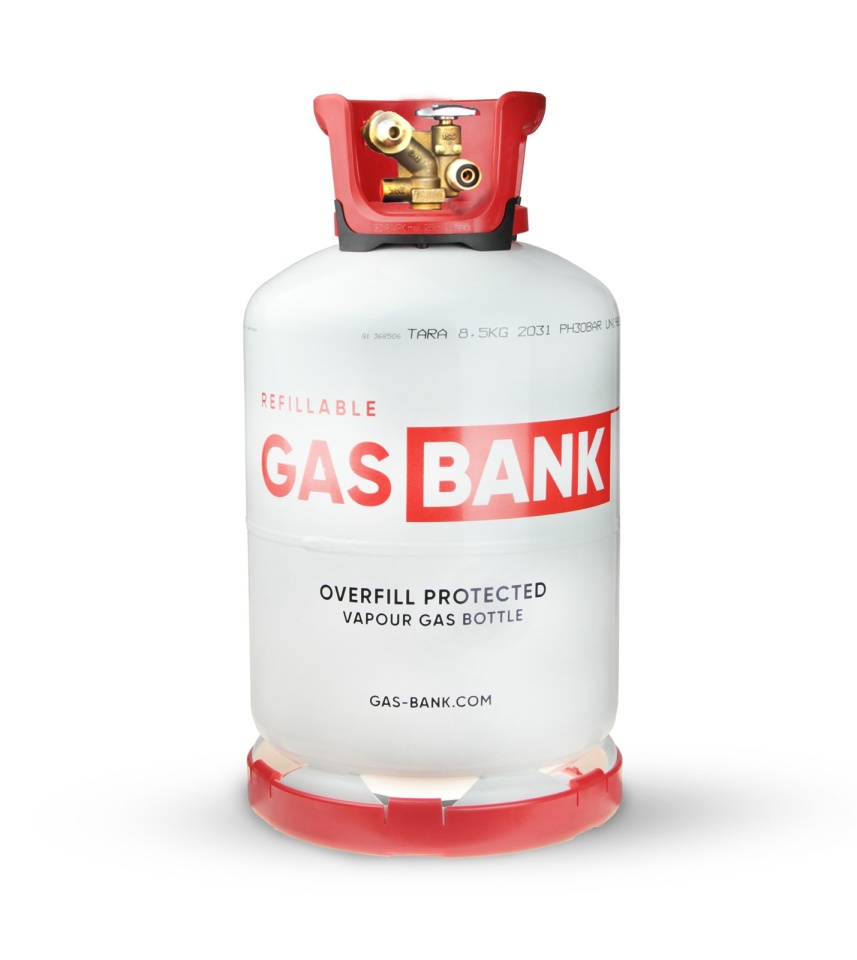

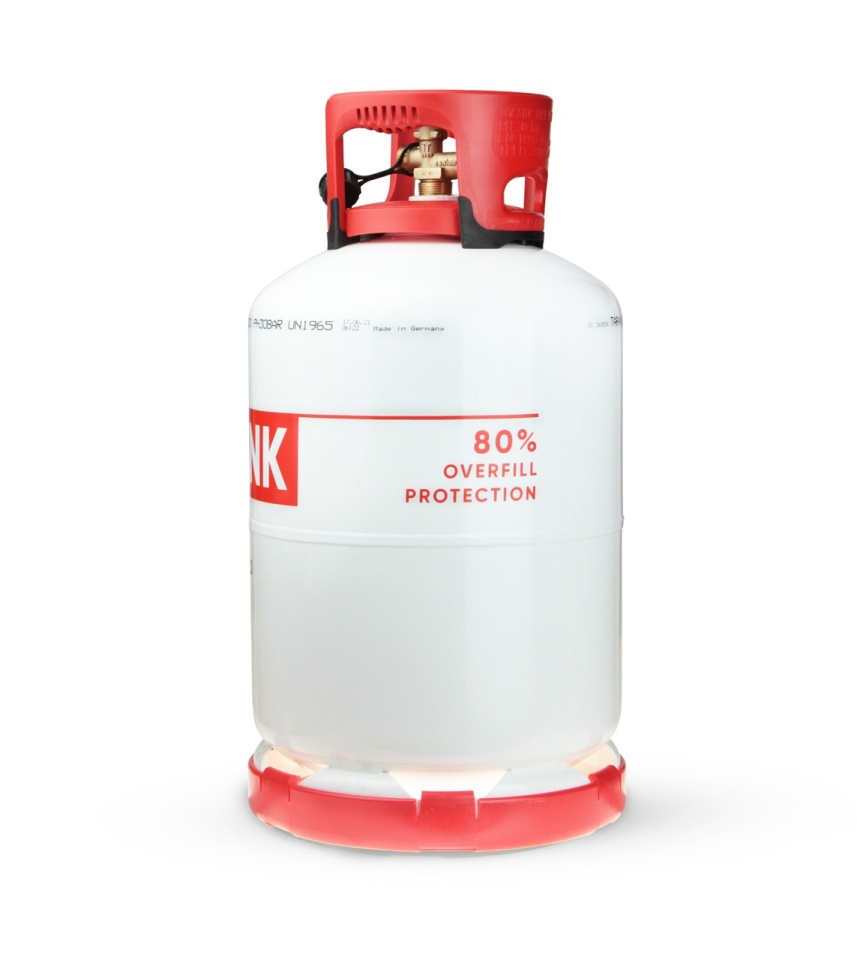

DUPLEX steel refillable LPG tank, weight 8.65 kg, multivalve, 27.2 litres

Description

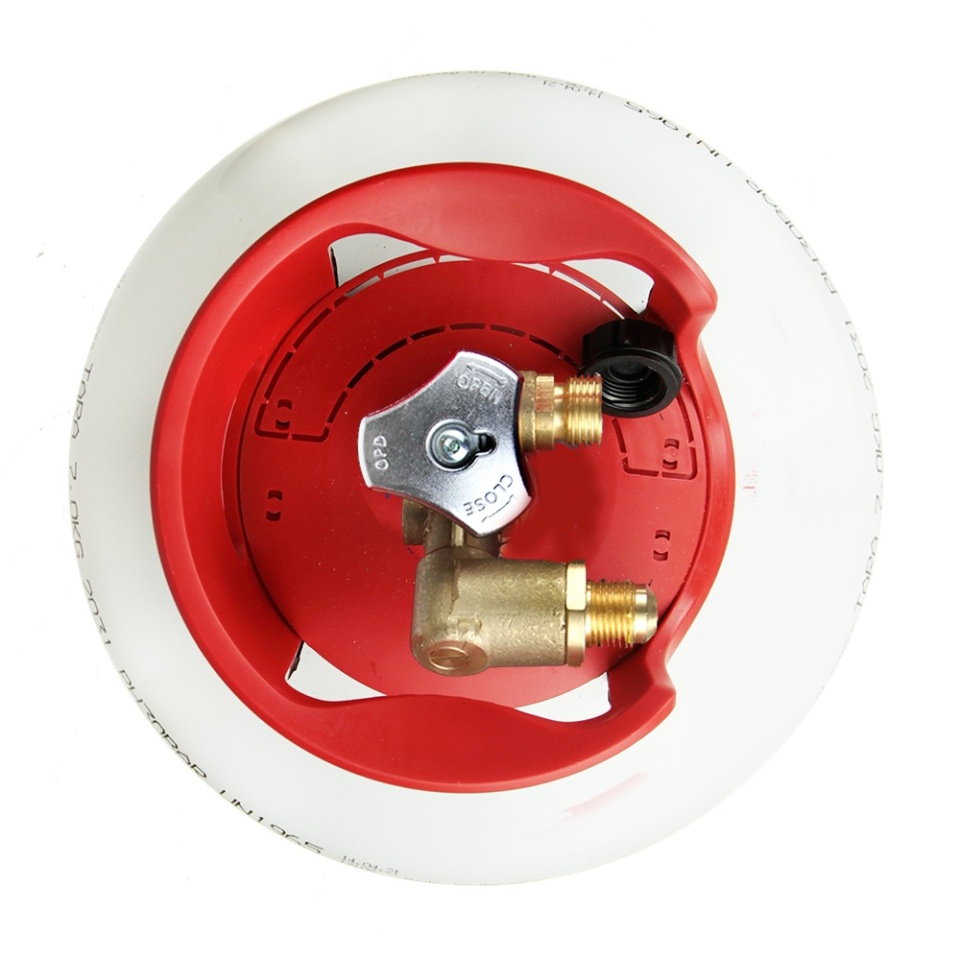

Thanks to the DUPLEX steel, this model weighs only 8.65kg (unfilled) and is stainless. It is equipped with a multivalve (filling is done separately from the gas outlet) and has a filling limiter up to 80% (so a maximum of 21.7 litres of gas can be filled)
The GasBANK LPG tank has the same dimensions as the classic cylinder (571 x 300 mm) and can be easily installed in its place and refuelled with LPG from any station in Romania or in Europe. In most European countries, LPG refuelling is allowed only in special LPG tanks

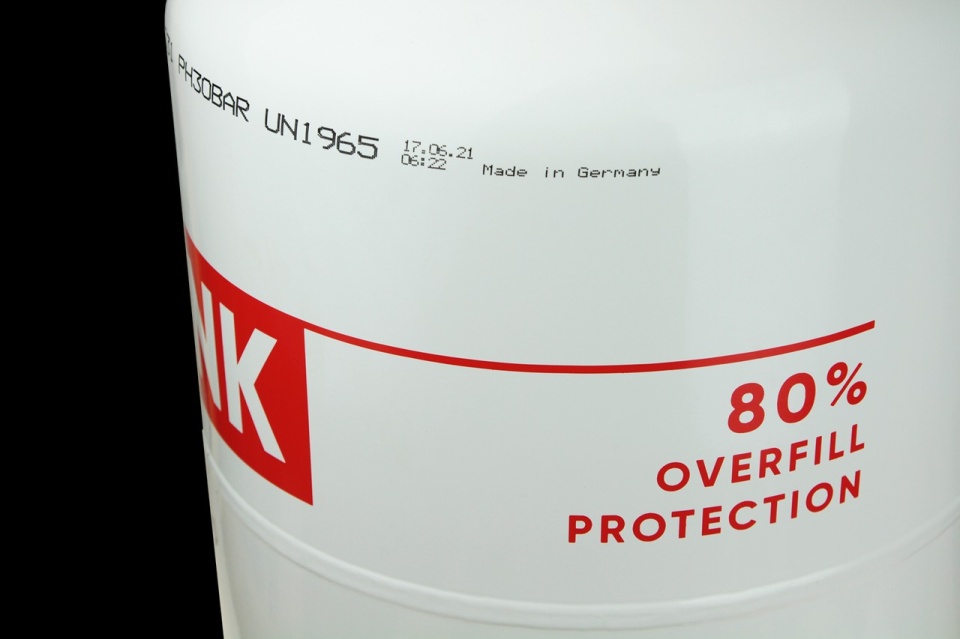

What is the difference between standard and refillable gas cylinders? The CAMPKO refillable LPG cylinder / tank is equipped with an overfill protection mechanism that prevents overfilling by limiting it to 80% of the total capacity. If the cylinder is filled above this level, under certain conditions (e.g. excessive heat) there is a risk that the liquefied gas inside may expand and damage the valves, taps, filters etc or even explode. The 80 per cent safety level is not possible to control in the case of a conventional cylinder that is filled with LPG in a homemade way.

In addition to the overfill protection mechanism, the GasBank cylinder/tank is fitted with a safety valve configured to open at a pressure of 27 bar.

Gas can be supplied

• directly into the cylinder by using an extension and adaptors for Romania (DISH), Holland (bayonet), Germany (ACME) or Spain (Euronozzle) which must be purchased separately.

• through the inlet nozzle (not included in the package) which can be installed on the wall of the vehicle or on the service door and which can be purchased separately from here

Connection of 2 tanks: If you wish to install 2 tanks in parallel, you must purchase the connection set separately here

ATTENTION !!! Due to the special dimensions and gauge, this item has a fixed shipping charge of 25 RON

Specifications:

• Material: stainless steel DUPLEX
• Overflow valve: yes, limits to 80% of nominal capacity
• Safety valve: yes, max 27 bar
• Gross volume: 27,2 litres / net volume 21,76 litres (= 80%)
• LPG gas capacity: 11 kg
• Weight (without gas): 8,65 kg
• LPG fuelling: 3/4-16 UNF thread (right)
• LPG outlet: G12 (W21,8 x 1/14 left) cylinder type Germany
• Height including collar: 571 mm
• Diameter: 300 mm
• EN 14140:2003 + A1: 2006 certified
