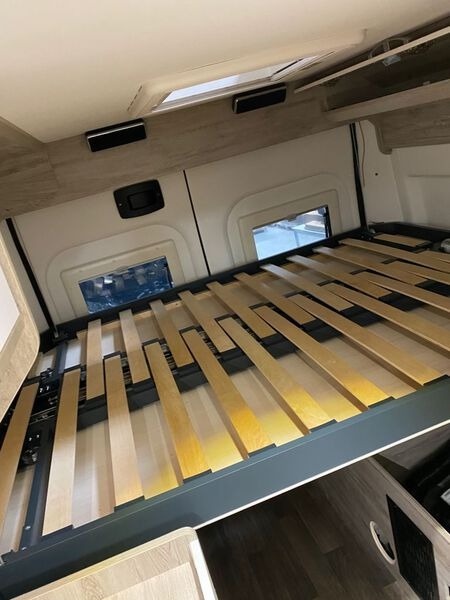

Electric foldaway bed for Ducato / Jumper / Boxer >2015

Installation and operating instructions can be found here

Lifting mechanism:

• Lifting height: 850 mm (from lower edge of bed to lower edge of bed)
• Bed frame height: 85 mm

Distances:

• From rail to rail: 1540 mm
• Rail to bed frame: 70 mm each side
• Distance between rails (distance between the centre of the two rails): 1438 mm

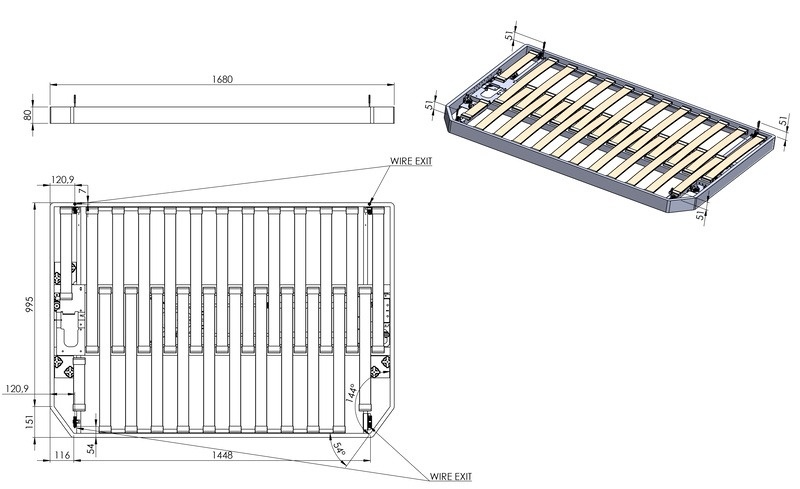

Bed frame:

• Width of bed frame: 1147 mm (without fixing points on the rail)
• Bed frame length: 1680 mm
• Overall mattress dimensions (LxWxH): 1640 x 1107 x 85 mm

• 1 bed 1680 x 1147 mm
• 1 mattress 1640 x 1107 x 85 mm
• 1 right + 1 left rail
• 2 front bed attachments
• 2 bed rails
• 1 rear left fixing point
• 1 fixing point rear right
• 2 front fixing plates
• 1 motor

Length : 168 cm
Width : 114.7 cm
Height : 8 cm
Length of sleeping surface : 164 cm
Width of sleeping surface : 110,7 cm
Height closed : 8.5 cm
Colour: black
Load capacity : 400 kg
Weight: 35 kg

WARNING !!! Due to its size, this item has a fixed delivery cost of 150 RON
