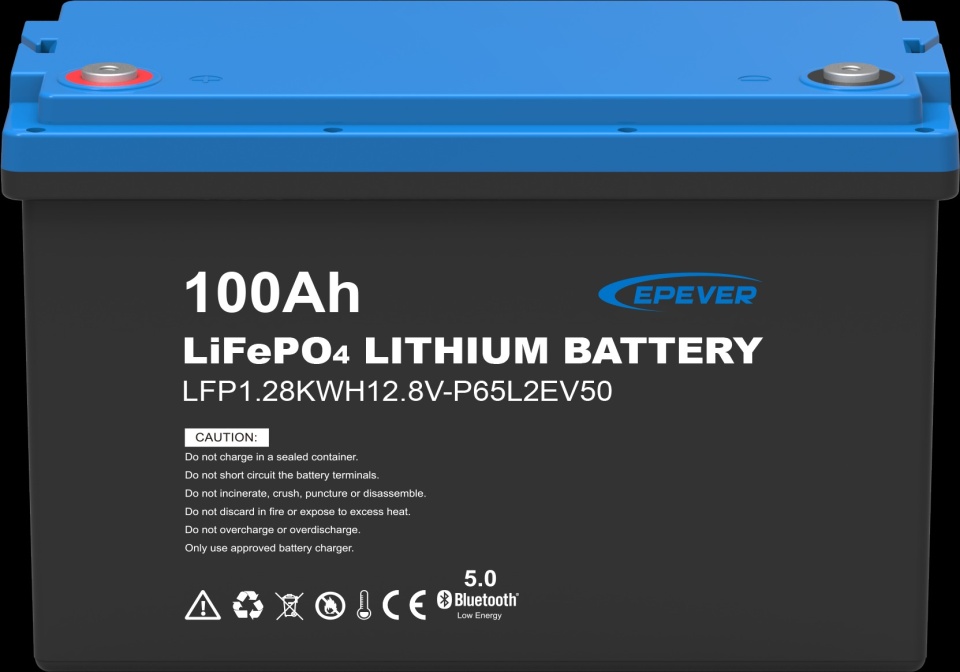

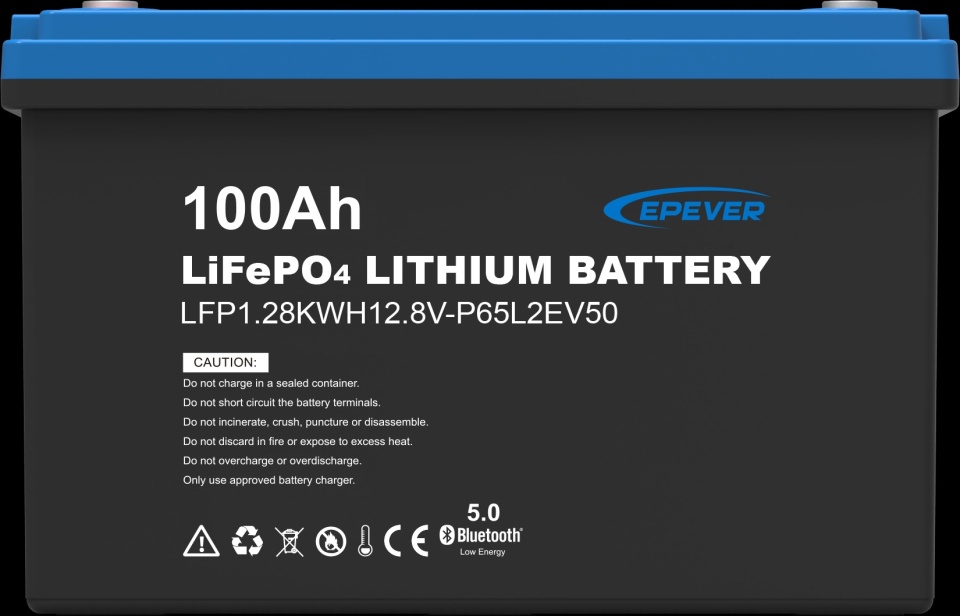

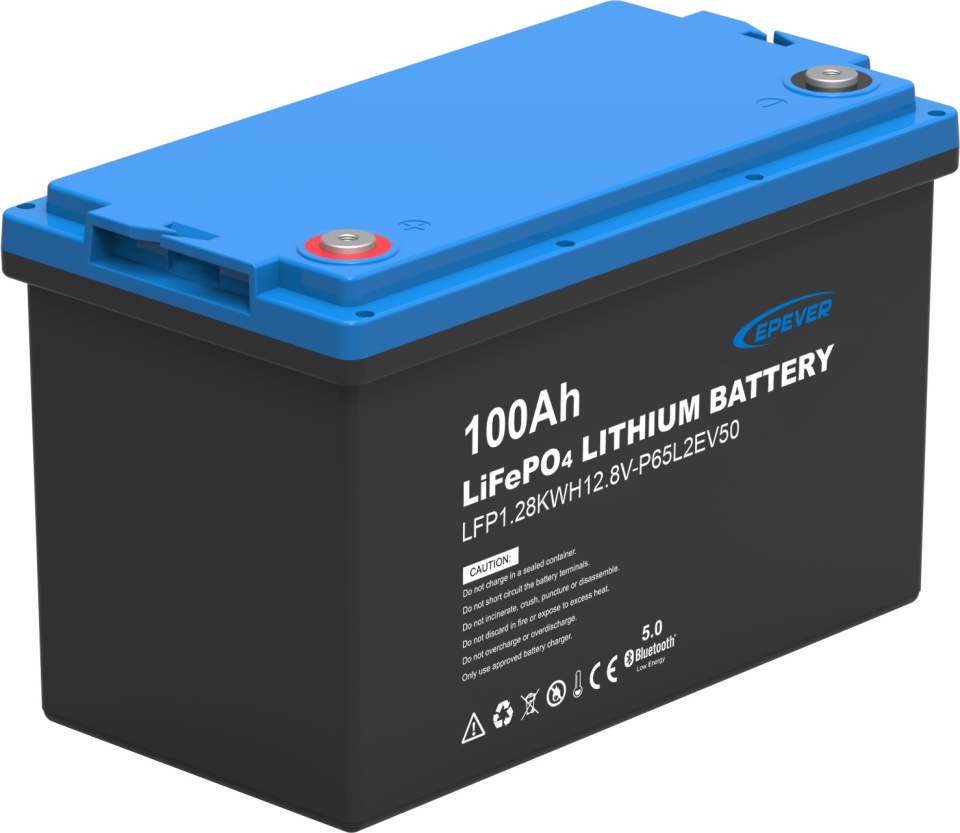

Epever LiFePO4 battery, 12,8V, 100Ah, self-heating for photovoltaic systems, caravans, boats,

Description

Epever's 12.8V / 100Ah lithium battery contains state-of-the-art prismatic cells and is equipped with a non-heating feature. The self-heating facilitates battery charging at temperatures < 0°C. The BMS (Battery Management System) of LiFePO4 batteries disconnects them from the charging source at temperatures below 0°C. But on this model, the battery's self-heating system automatically activates at temperatures below 0°C, warming the battery and allowing it to be charged. A maximum of 4 batteries can be connected in series or parallel.

Features:

• BMS (Battery Managemn System): battery management system via the app (Android or IOS) "Xiaoxiang" which can be downloaded online. Through this app a whole range of key battery parameters can be monitored and controlled:

• Epever LFP series batteries can be connected in series or in parallel up to 4 pcs
• Provided with protection against: overcharge, over-discharge, extreme temperature, overcurrent, short circuit
• Manufacturer warranty: 3 years

Specifications:

Rated voltage: 12,8V
Cycle life >4000@ 25°C 80% DOD
Rated capacity: 100Ah
Stored power: 1280Wh
Charge cut-off voltage: 14.4V
Discharge cut-off voltage: 10.4 V
Maximum charging current: 100 A
Maximum discharge current: 150 A @30 min
Maximum discharge current: 180 A @10 sec
Recommended discharge current: 50 A
Dimensions (L x W x H): 340 x 185 x 219 mm (without terminals)
Weight: 12.2 kg ±0.5 kg

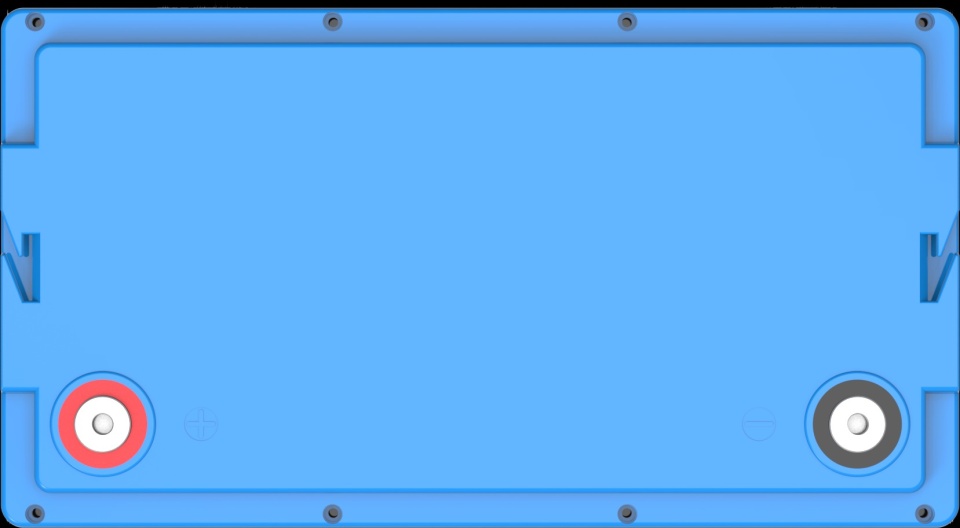

Connection terminal type: M8
Discharge temperature: -20 ~ 60ºC
Charging temperature: 0 ~ 55ºC
Storage temperature: -5 ~ 35ºC (max 3 months)
Recommended storage humidity: 20% ~ 80%
Compliant with standards: UN38.3, MSDS
Enclosure Protection: IP65
