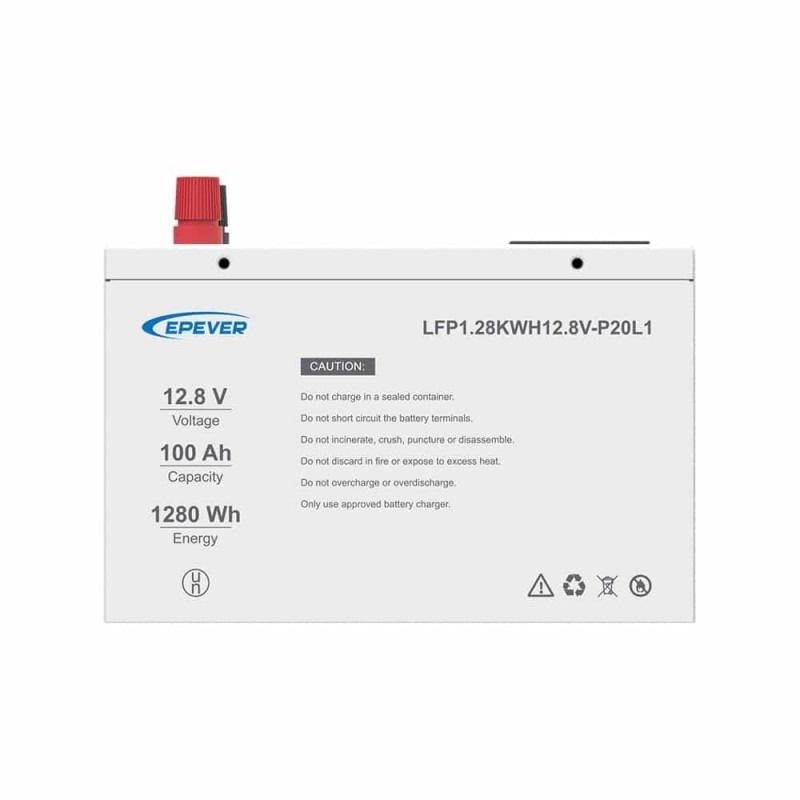

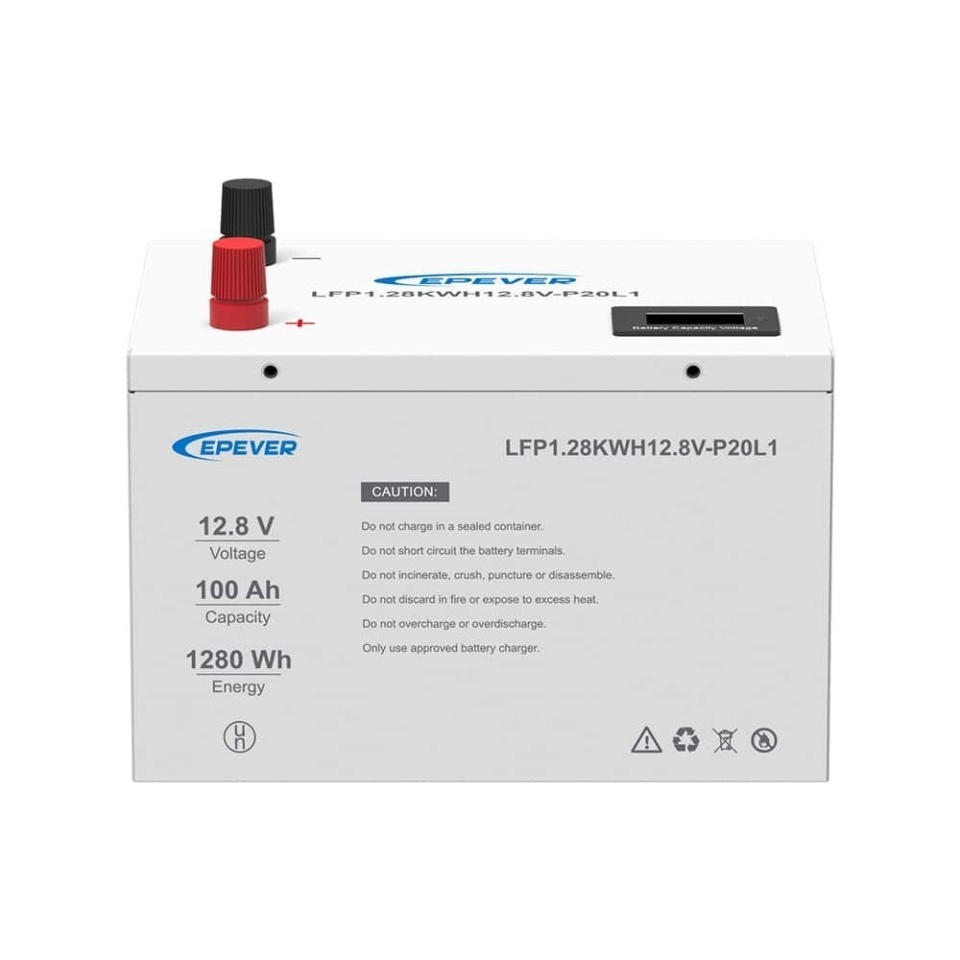

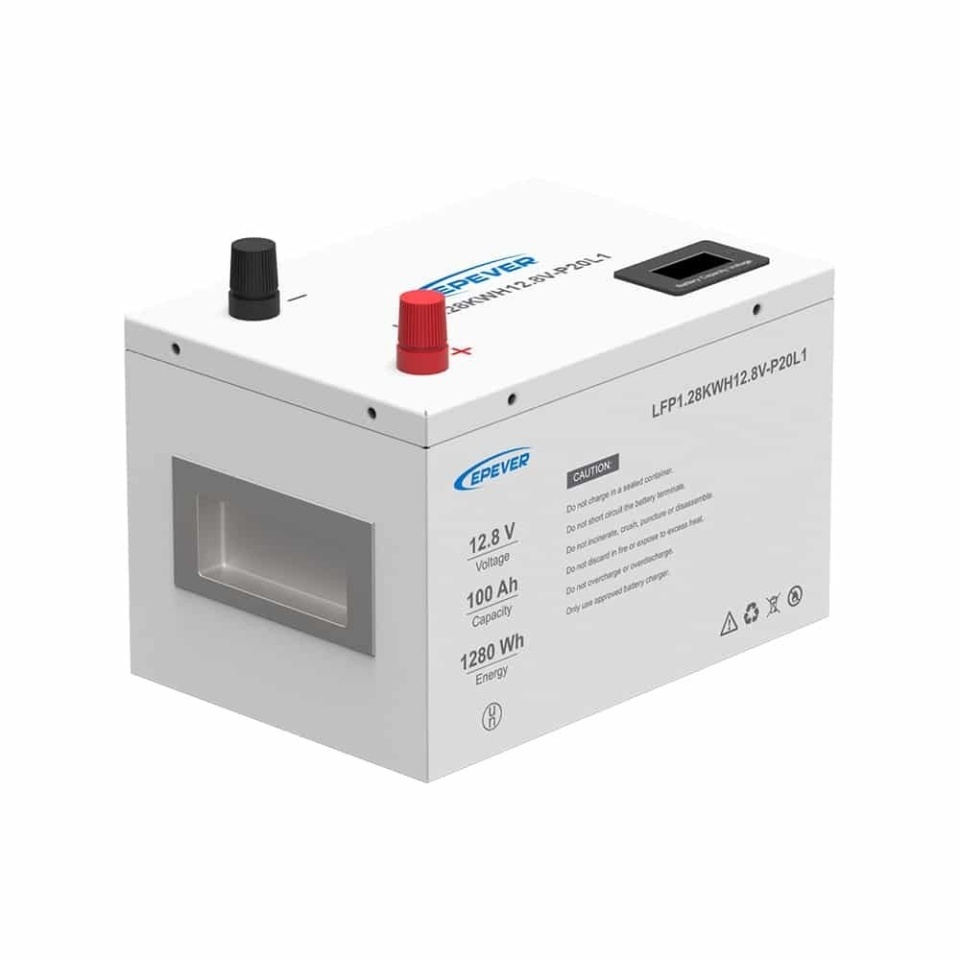

Epever LiFePO4 battery, 12,8V, 100Ah, with display for photovoltaic systems, caravans, boats,

Description

The 12.8V / 100Ah lithium battery from Epever is designed with state-of-the-art LiFePO4 cells, providing over 4000 charge/discharge cycles. It is equipped with overcharge and short-circuit protection features. A maximum of 4 batteries can be connected in series or in parallel.

Features:

• LCD display: real-time monitoring of essential parameters: voltage, temperature, charge level (SOC):

  • 1 Status: STBY (standby); CHG (charging); DISCH (discharging); ERROR (error)
  • 2 Parameters: Voltage (V); Current(A); Temperature (°C)
  • 3 SOC (State Of Charging): % battery charge
  • 4 SOC (State Of Charging): % charge per cell (battery contains 4 cells)
  • 5 ON/OFF button: When pressed briefly, the display is illuminated and the parameters can be read. After 30 sec, the illumination stops automatically and enters energy save mode

• Epever LFP series batteries can be connected in series or in parallel up to 4 pcs
• Provided with protection against: overcharge, over-discharge, extreme temperatures, overcurrent, short circuit

Specifications:

Rated voltage: 12,8V
Cycle life >4000@ 25°C 80% DOD
Rated capacity: 100Ah
Stored power: 1280Wh
Charge cut-off voltage: 14.4V
Discharge cut-off voltage: 10.4 V
Maximum charging current: 50 A
Maximum discharge current: 100 A @30 min
Maximum discharge current: 120 A @10 sec
Recommended discharge current: 50 A
Dimensions (L x W x H): 260 x 180 x 166 mm (without terminals)
Weight: 12.Kg +/- 0,5 kg
Type of connection terminals: M8
Discharge temperature: -20 ~ 60ºC
Charging temperature: 0 ~ 55ºC
Storage temperature: -5 ~ 35ºC
Recommended storage humidity: 20% ~ 80%

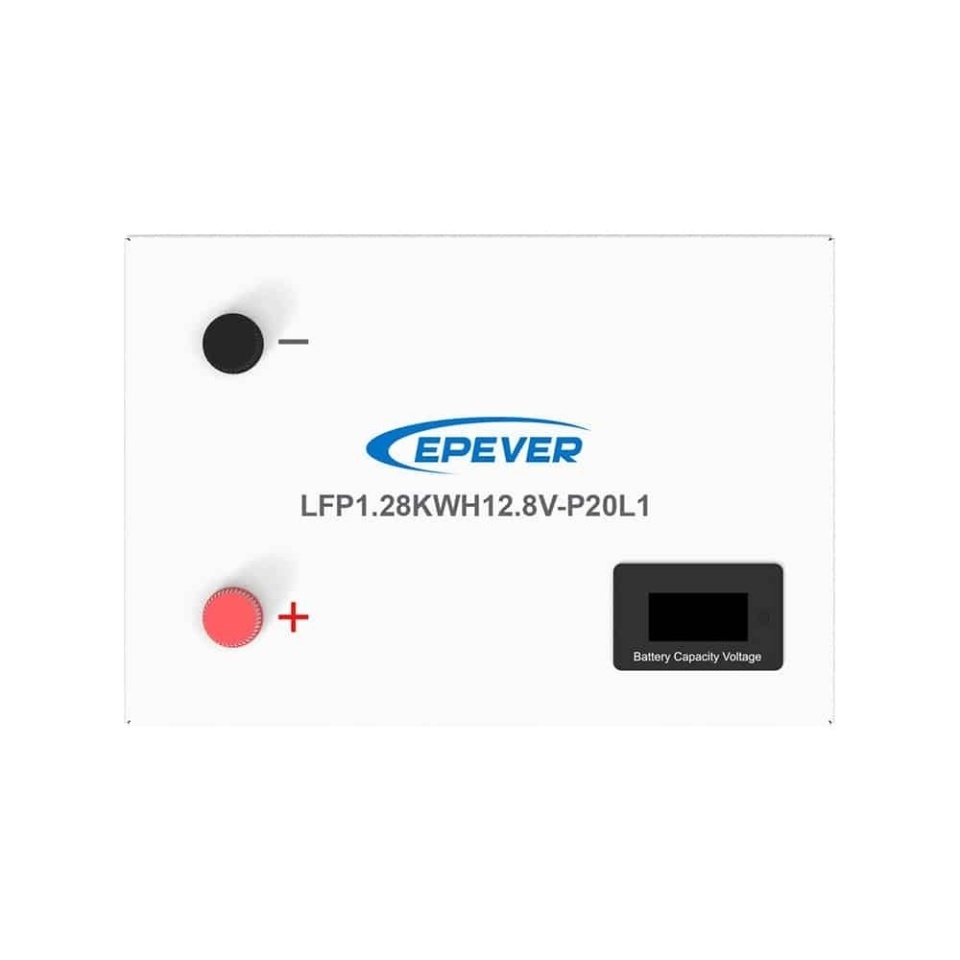

LCD Display
Compliant with standards: UN38.3, MSDS, IEC62133, IEC62619, EN IEC61000-6-1/2/2/3/4
Enclosure protection: IP20
