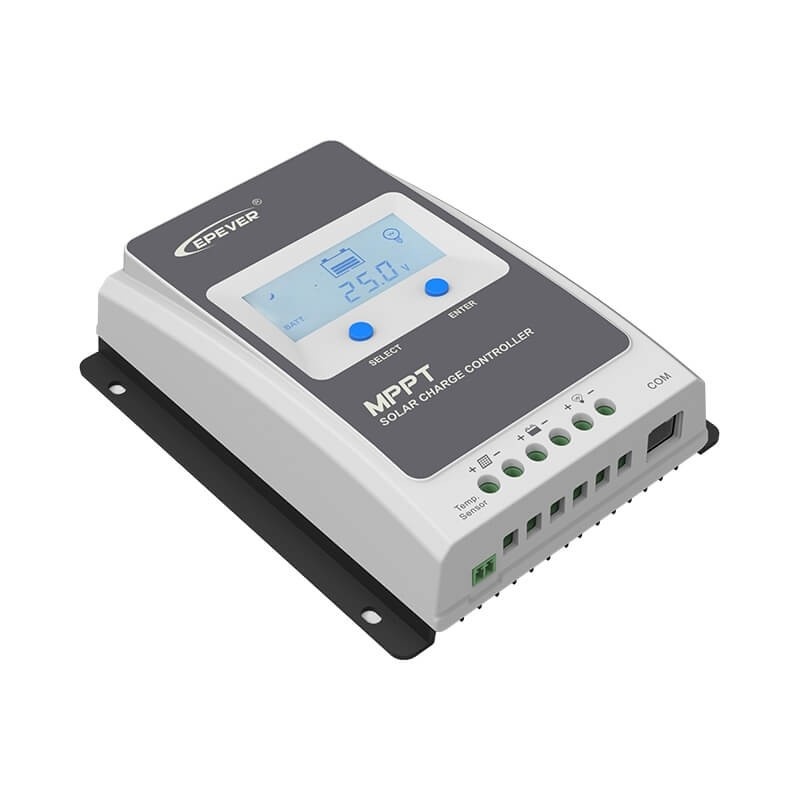

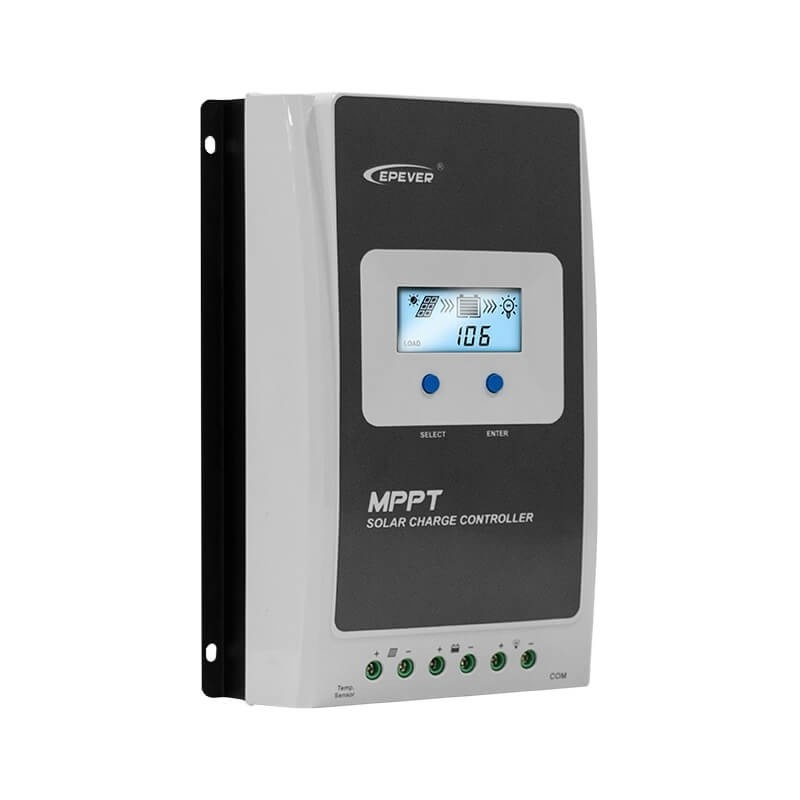

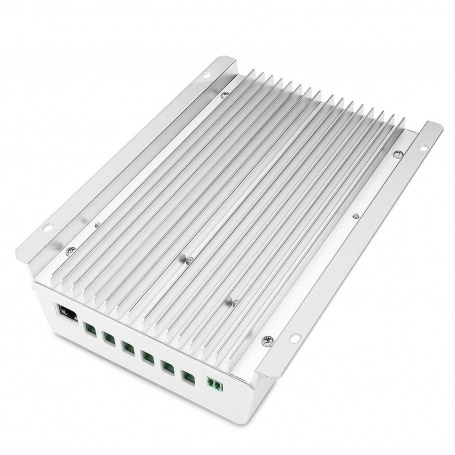

EPEVER Solar Regulator / Controller, Model MPPT 40A MPPT, 12V 24V

Description

The 40A Maximum Power Point Tracking ( MPPT) controller increases charging efficiency by up to 30% compared to a PWM(Pulse Wave Modulation) controller. This MPPT model automatically adjusts the operating voltage and makes the PV panels work constantly at maximum power point throughout the day.

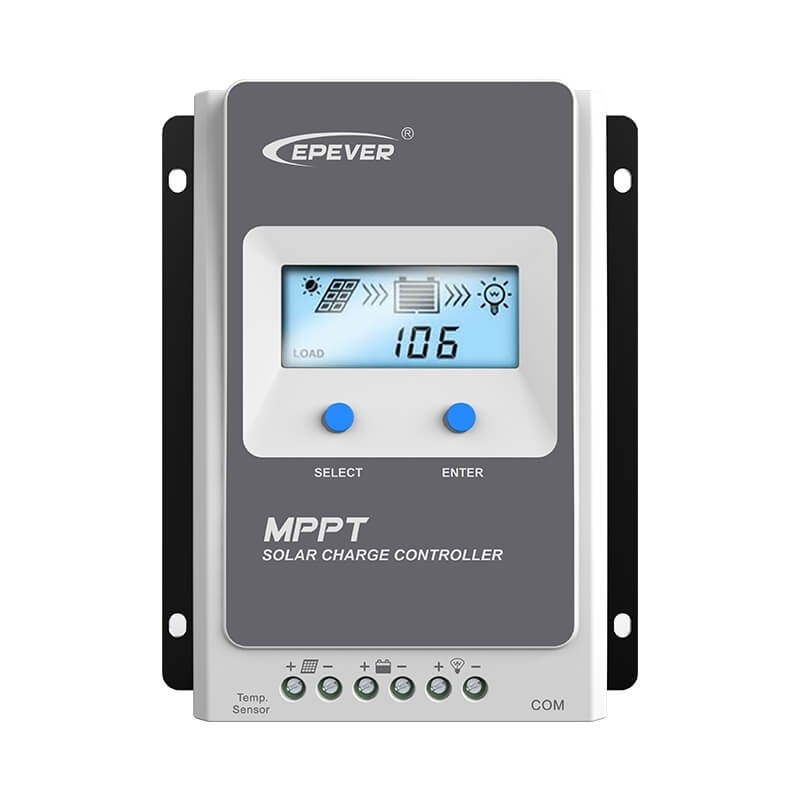

The EPEVER charge controller is equipped with an LCD display for parameter display and device configuration.

Detailed technical specifications for the controller can be found here

Specifications:

- Nominal battery voltage: 12/24VDC automatic recognition
- Rated charging current: 40A
- Rated discharge current: 40A
- Controller working voltage range: 8~31V
- Maximum PV open circuit voltage: 100V (at minimum operating environment temperature); 92V (at ambient temperature)
- MPPT voltage range: (battery voltage +2V)~72V
- Rated load power: 520W/12V; 1040W/24V
- Static losses: ≤8mA(12V); ≤5mA (24V)
- Voltage drop in discharge circuit: ≤0.23V
- Temperature compensation: -3mV/℃/2V (default)
- Ground type: negative common
- RS485 port: 5VDC/200mA (RJ45)
- LCD backlight time:
Default: 60s
Range: 0~999s (0 seconds: backlight is ON all the time)
- Working Temperature Range: -25℃~+45℃(100% loads working)
- Storage temperature range: -20℃~+70℃
- Relative Humidity: <95% (N.C.)
- IP30 Certification
- Dimension: 252 x 180 x 63 mm
- Mounting Size: 204 x 171 mm
- Mounting hole size: Φ5 mm
- Terminal: 6AWG (16 mm2)
- Recommended wire size: 6AWG (16 mm2)
- Net weight: 1.65 kg
