External LPG fuel socket with right connection

Description

External power socket with straight connection for the external supply of the LPG cylinder / tank. It is installed anywhere on the external wall (or on the service door of the cylinder compartment) of the motorhome or caravan and is connected to the LPG cylinder / tank via a hose (to be purchased separately from here ).

For mounting on horizontal surfaces it is recommended to use the mounting plate which can be ordered here

The connection does NOT contain the charging adapters which must be purchased separately (e.g. DISH adapter for Romania from here )

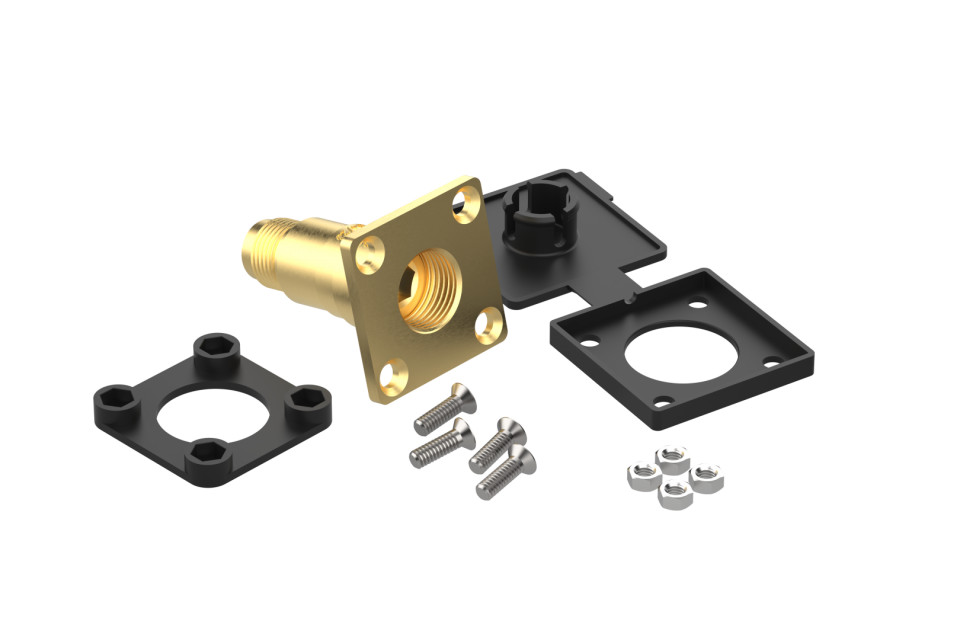

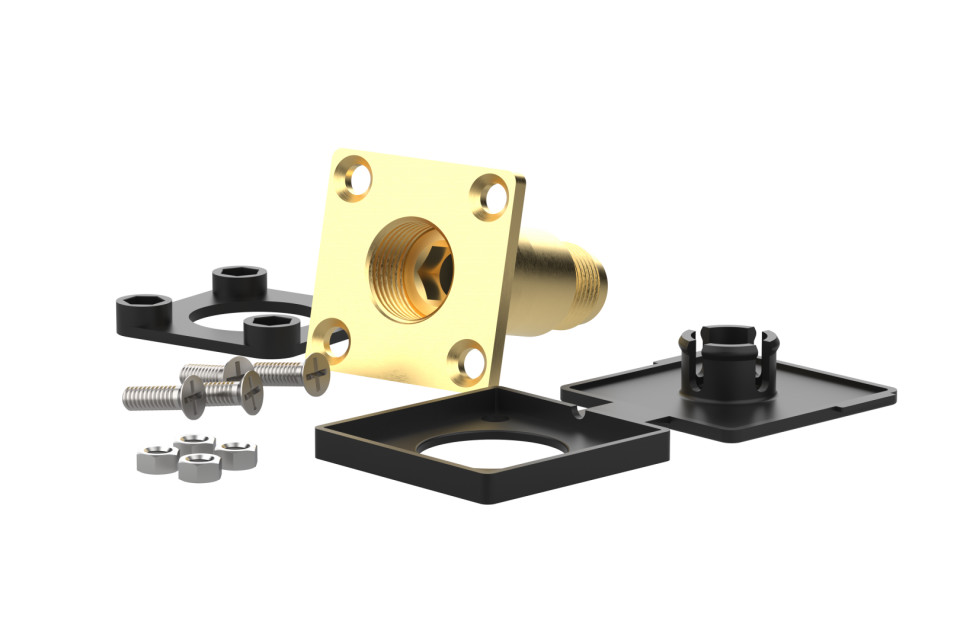

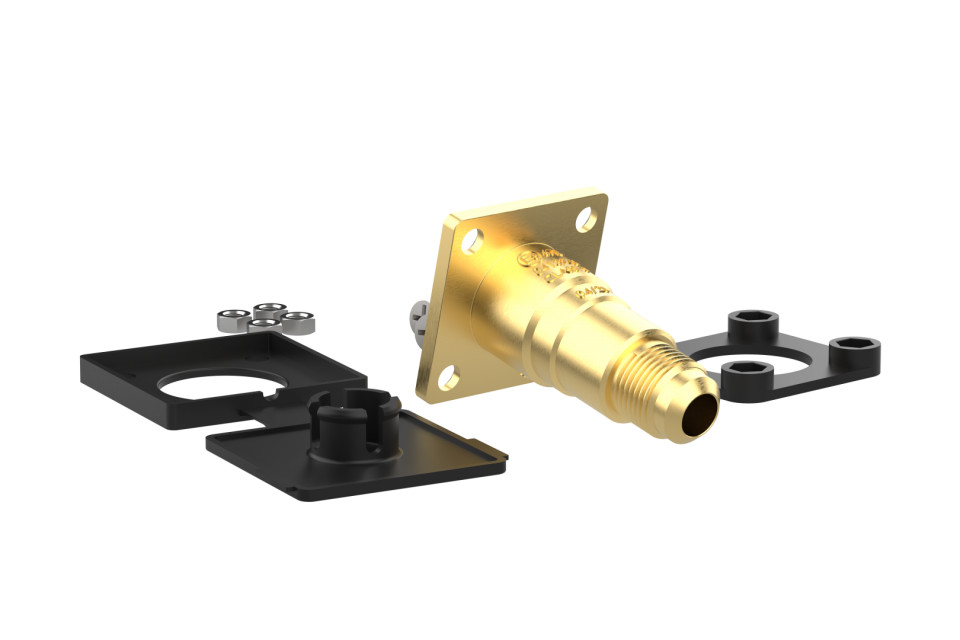

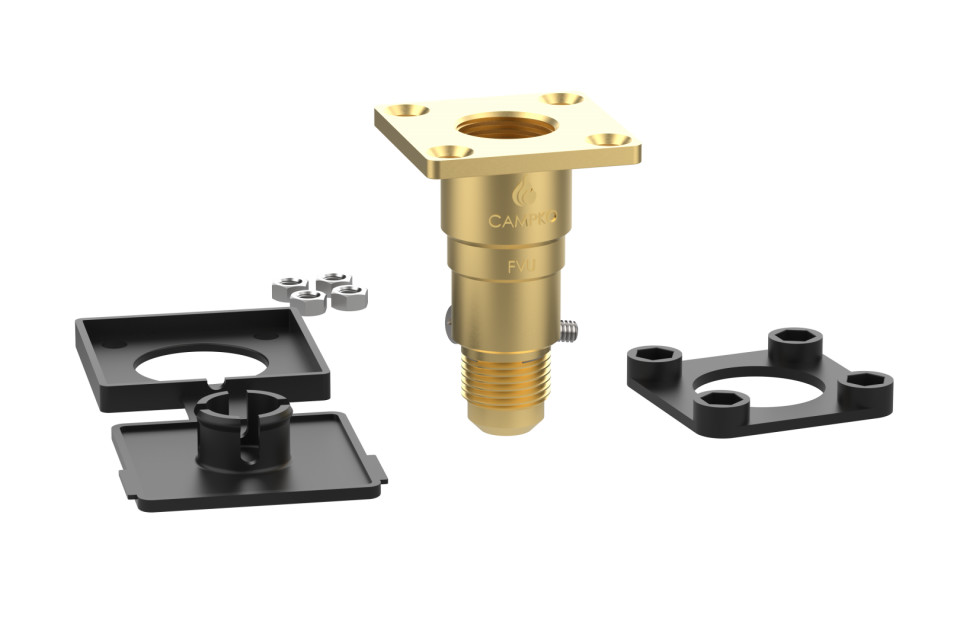

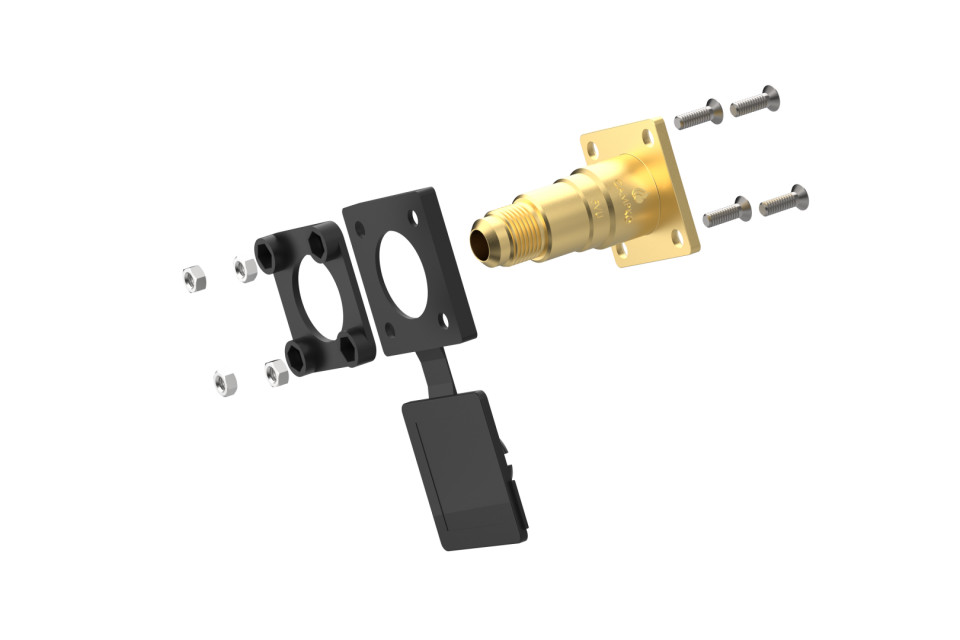

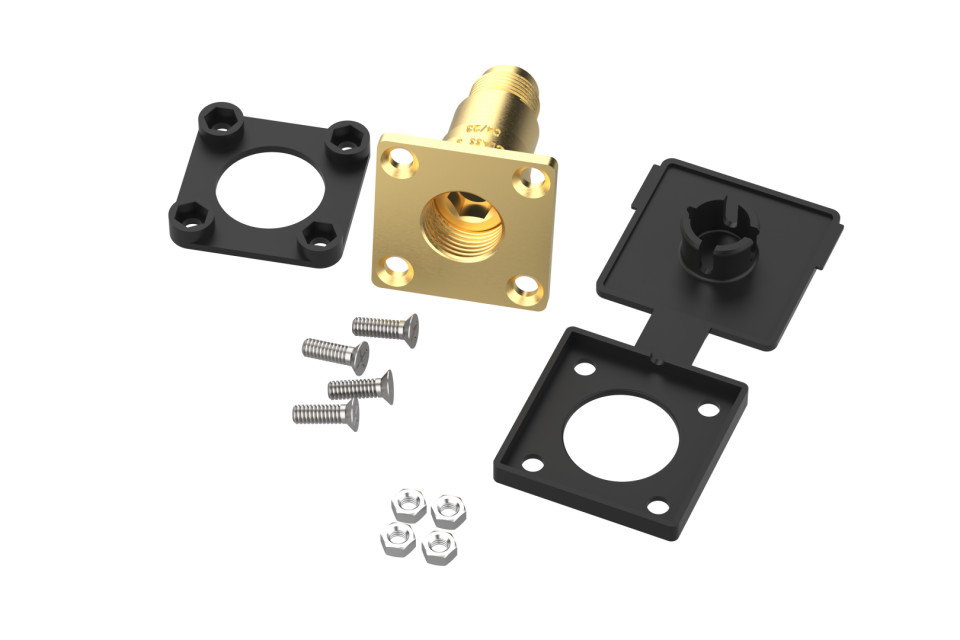

The set contains:

• External plug with internal connection to the hose
• 4 screws and 4 nuts
• plastic cover

Specifications:

• Dimensions: 50 x 50 x 62 mm
• Hose connection: 3/4"-16UNF at 90°
• Standard approval: 67R-01
