External water pump Aqua 8F 10l/min, new model 2025

Description

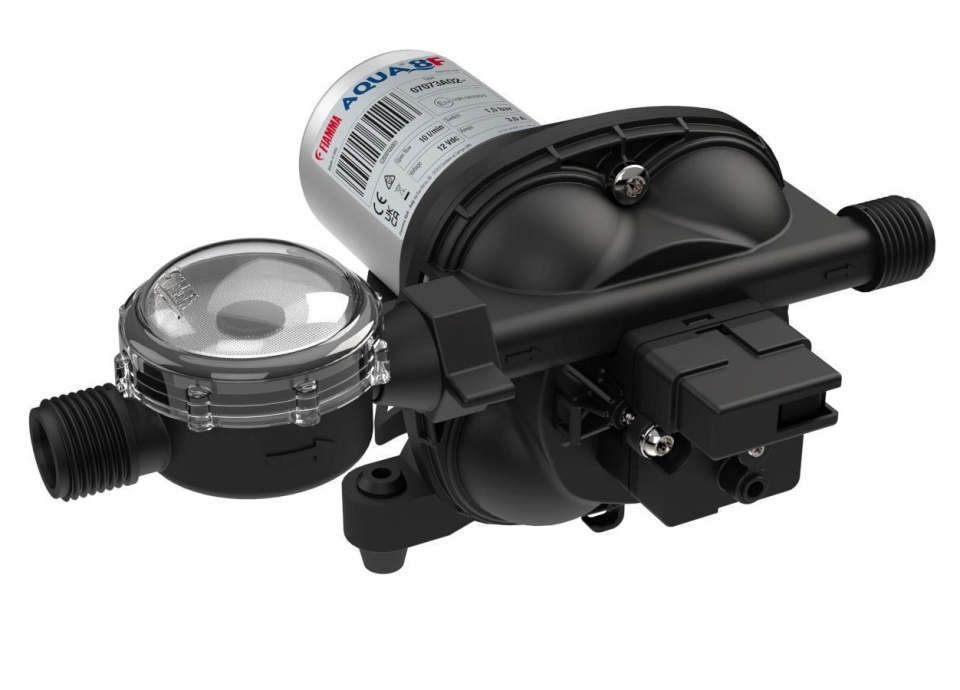

Starting in 2025, the Aqua 8F 12v pump replaces the Fiamma Aqua 8 and Aqua F. The Aqua 8F is a 4-chamber self-priming diaphragm pump for clean water systems in caravans and motorhomes. The Fiamma Aqua 8F pump is safe and reliable and is designed for a constant high flow rate. It is equipped with an innovative one-piece inner diaphragm for leak tightness, anti-vibration base, brass pressure switch with fixed calibration and is fitted with an external filter for easy maintenance. It also has an improved, high-efficiency motor to provide high capacity with low energy consumption.
The pump can operate in any position, but it is recommended to install with the motor on the top. It is installed on a solid surface to reduce noise and vibration. Easy maintenance: all its components are easy to replace. Connects to the vehicle's internal water supply via: Ø 13 mm pipe; 1/2" internal thread connections; Ø 13 mm hose connection (not supplied as standard).

Specifications

• Flow rate: 10 litres/min
• Pressure: max 1,5 bar
• Power consumption: 3 A / 36W
• Noise level: 55 db
• Voltage: 12 V

• No of max outputs: 2
• Net weight: 1,3 kg
• Dimensions (LxWxLxi): 225 x 160 x 130 mm
