External water pump Aqua 8F 7l/min, model 2025

Description

Aqua 8F 12v replaces Fiamma Aqua 8 and Aqua F models.

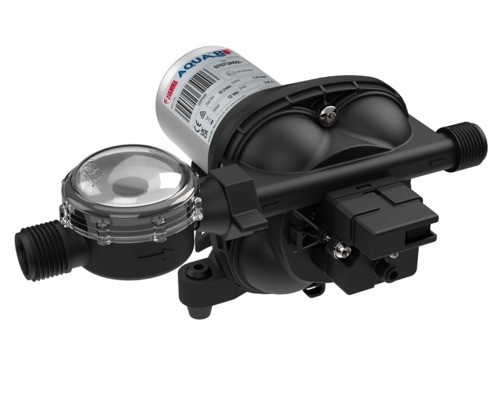

The Aqua 8F is a 4-chamber self-priming diaphragm pump for the water system in caravans and motorhomes. The Fiamma Aqua 8F pump is safe and reliable and is designed for a constant high flow rate.
It is equipped with an innovative one-piece inner diaphragm to ensure watertightness, is fitted with anti-vibration installation bracket, brass pressure switch with fixed calibration and comes with an external dirt filter. It also features an improved, high-efficiency motor to ensure high capacity with low energy consumption.
This version of the Aqua 8F pump has a flow rate of 7 l/m and is recommended for a simple water system with one or two taps. It also has low energy consumption, making it a more economical version.

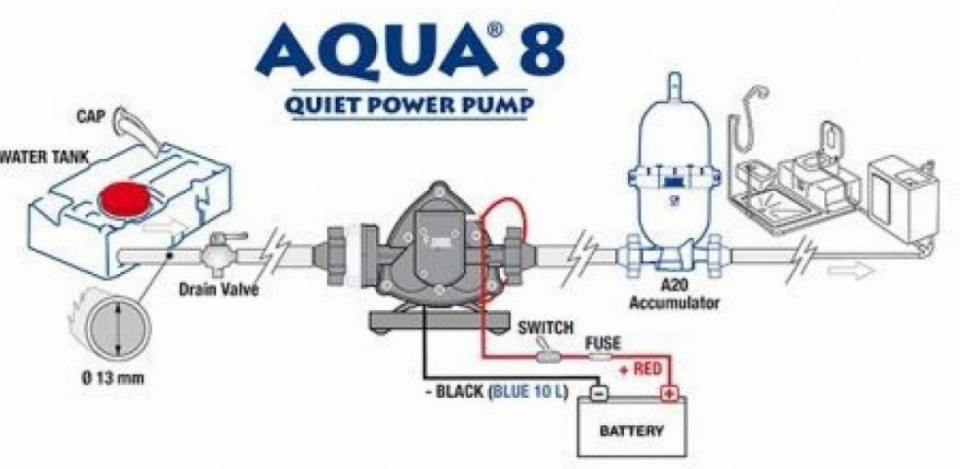

The Aqua 8F pump can be installed in any position and can run dry without damage. It connects to the water system via 1/2" threaded instant fittings and Ø 13 mm hose connection (not supplied as standard).

Specifications

• Flow rate: 7 litres/min
• Noise level: 50 db
• Pressure: 1,5 bar
• Power consumption: 1,4 A
• Voltage: 12 V
• Pumping height: 5 m
• For 1 - 2 outlets (taps)
• Net weight: 1,3 kg

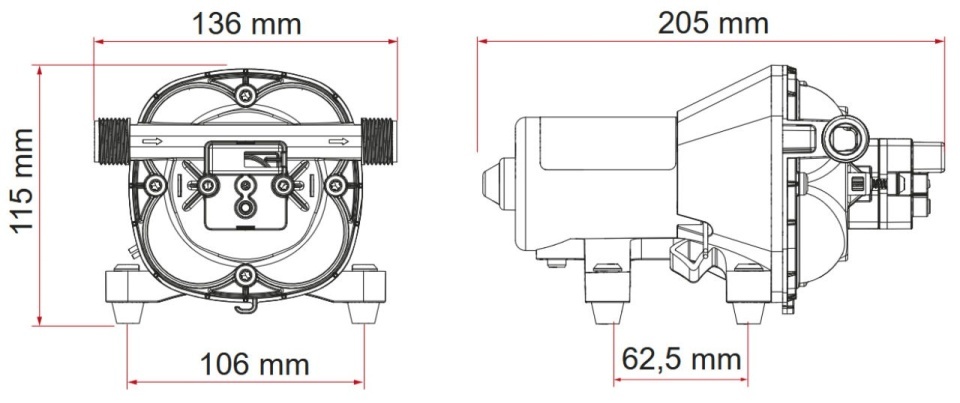

• Dimensions (LxWxlxi): 205 x 136 x 115 mm
