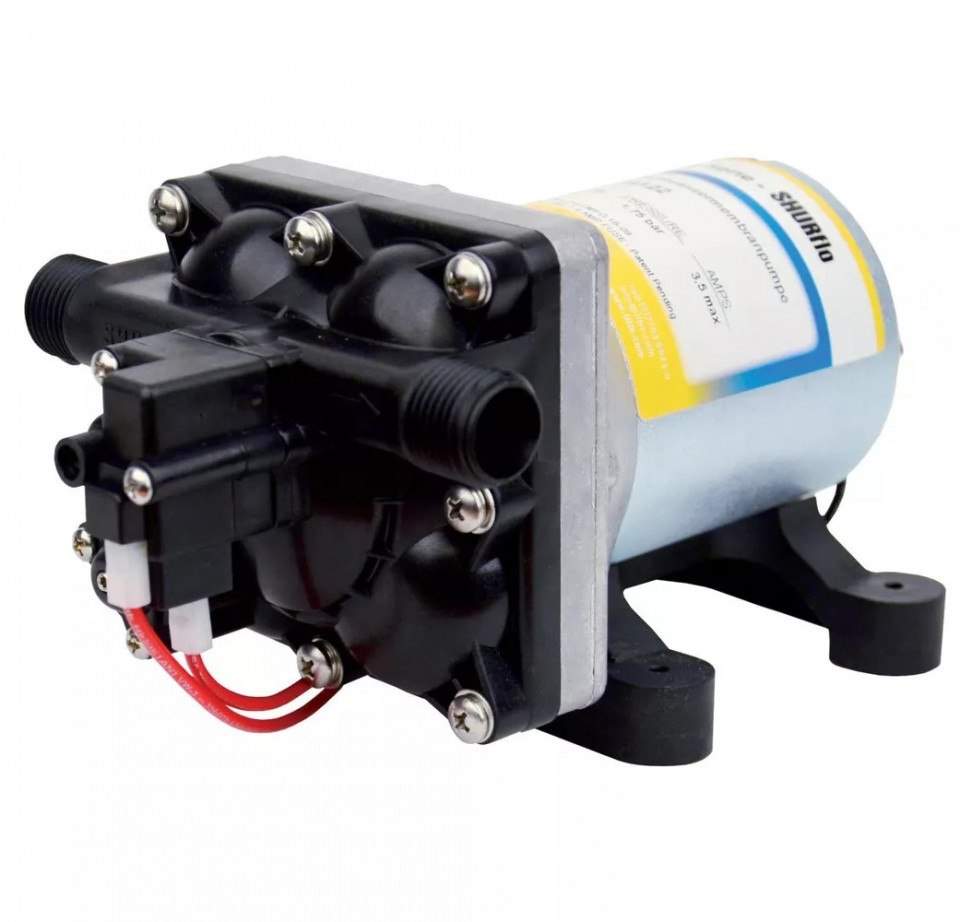

External water pump Lilie / Shurflo "Soft LS4121", 7,5l /min, 1,4 bar

Description

Extremely quiet external water pump with pressure switch included (no microswitch battery required)

"SOFTSERIE" is the evolution of the "CLASSIC" series. Thanks to the unique 4-chamber diaphragm optimised for high flow rate, a new motor with silent operation and an integrated bypass, a constant water flow rate is guaranteed for up to 3 outlets. Both when switching on and off the pump remains very quiet and vibration-free. Package includes 2 couplings for 10 mm hose.

The particulate filter is not included and can be ordered here

Instructions for use and assembly can be found here

Specifications

• Flow rate: 7,5 litres / min
• Voltage: 12 V
• Max consumption: 3,6 A
• On/off pressure: 0,8 bar / 1,4bar
• Pumping height: 2,5 m
• Max number of outlets: 3
• Weight: 1,75 kg
• Dimensions (LxWxLxi): 20,5 x 10,5 x 11 cm
• Operating temperature: liquid max 77°C
• Connections: 1/2" NPT external thread, including connection nozzles 1/2"x12 mm
• Mounting: base plate with silencers
• Thermal overload protection, automatic restart
• self-priming
