Falcon wireless reversing camera system with magnetic camera, rear-view mirror monitor with video recording, and solar charging

Description

Falcon Wireless Magnetic Camera System – reversing aid, no drilling required

The Falcon wireless magnetic camera system offers you a simple, high-quality solution for monitoring the area behind your vehicle whilst driving.

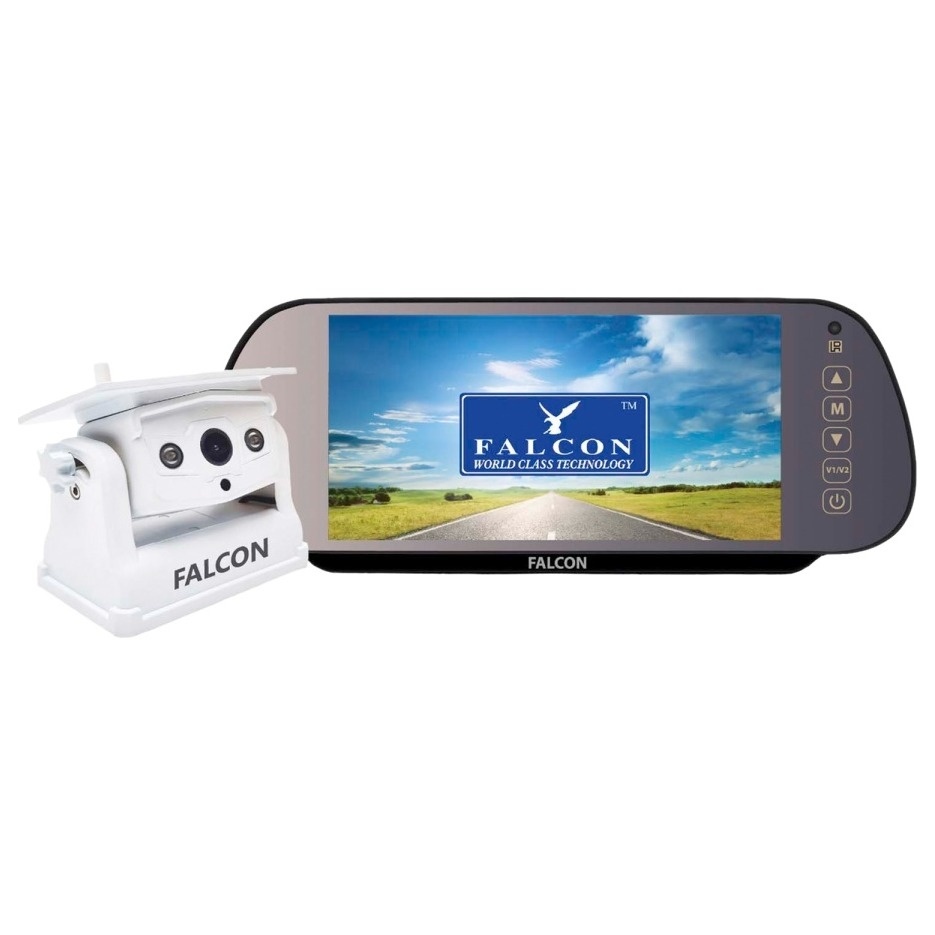

The plug-and-play magnetic camera can be fitted without drilling or permanent installation and connects wirelessly to the 7-inch monitor mounted on the rear-view mirror. The built-in lithium battery is recharged by sunlight via the solar panel and can also be charged via the USB port. This ensures a reliable power supply and long battery life, day and night.

Features

• Magnetic camera for flexible mounting, without drilling or fixed installation
• Wireless connection to the mirror monitor
• Digital video recording for driving and surveillance
• Mirror monitor with a natural viewing angle
• Integrated solar panel for additional power supply
• Alternative charging via USB port
• Wide-angle lens for better visibility behind the vehicle
• The monitor attaches over the existing rear-view mirror
• Water- and shock-resistant
• Available in black and white
• Suitable for vehicles without a fixed-mount camera

Technical specifications

• Connection range: up to 100 m
• Camera image sensor: 1/4-inch colour CMOS
• Camera resolution: analogue HD 1080p
• Transmission power: 23 dBm
• Light sensitivity: 0.1 lux
• Camera viewing angle: 125°
• Camera protection rating: IP67
• Shock resistance: 10 G
• Battery capacity: 9,900 mAh
• Charging time: 6 hours
• Average battery life per charge: 12 hours
• Daytime battery life: up to 12 hours
• Battery life at night: up to 10 hours
• Solar panel power: 0.8 W
• Camera operating voltage: 12–24 V DC, 400 mA
• Charging: USB-C 5 V / 2 A
• Camera operating temperature: -20 °C to +70 °C
• Camera storage temperature: -30 °C to +70 °C
• Camera dimensions: 12 x 9.5 x 7 cm

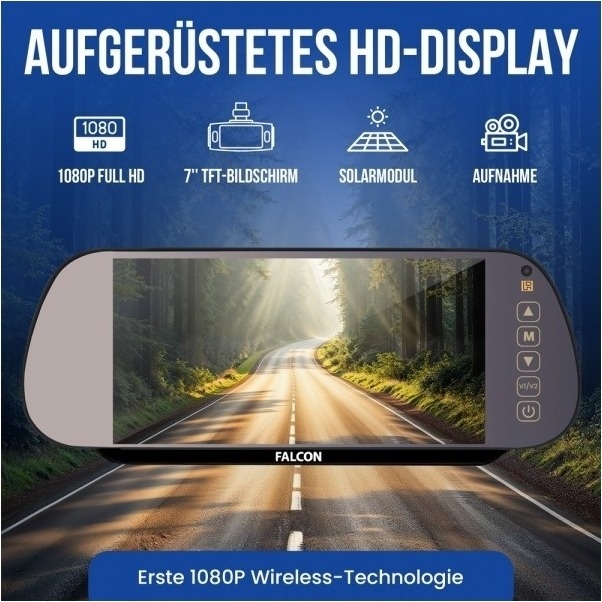

• Screen diagonal: 7 inches
• Screen type: TFT-LCD monitor, 16:9 aspect ratio
• Monitor resolution: 1024 x RGB x 600
• Contrast ratio: 350:1
• Brightness: 300 cd/m²
• Display power consumption: 6 W
• Monitor viewing angle: 85° horizontal / 85° vertical
• Recording format: AVI
• Supported memory card: SD card up to 512 GB
• Included memory card: 32 GB SD card
• Video output level: 1 Vp-p, 75 ohms
• Monitor operating voltage: 5 V DC
• Monitor operating temperature: -15 °C to +50 °C
• Monitor storage temperature: -20 °C to +85 °C
• Monitor dimensions: 24.95 x 10.8 x 3.9 cm
• Colour: white

Package contents

• 1 x wireless magnetic camera
• 1 x camera antenna
• 2 x screws for adjusting the camera angle
• 1 x USB-C charging cable for the camera
• 1 x metal mounting plate for the camera
• 1 x adhesive for the mounting plate
• 1 x 7-inch monitor for the rear-view mirror
• 1 x angled USB-A cable, 1.5 m
• 1 x angled USB-A cable, 0.75 m
• 1 x 12 V DC to USB adapter
• 1 x 32 GB SD card
• 1 x carrying case
• 1 x user manual
