Fixed WC Thetford C223-S with tank emptying from outside, in-ground installation

Description

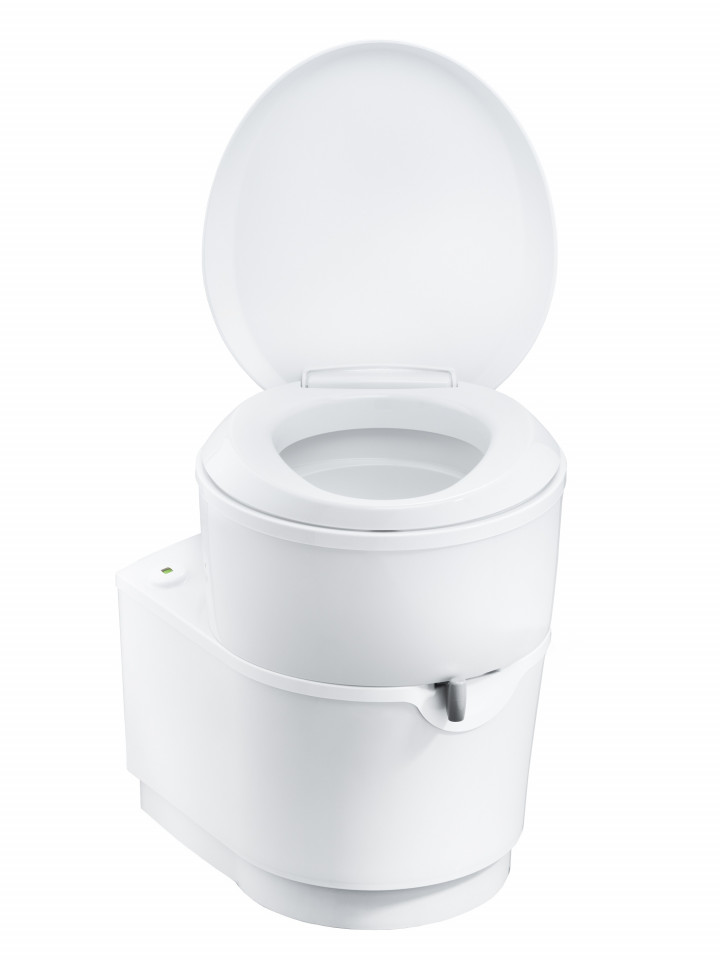

Fixed WC "Thetford C223-S" with outside tank emptying. Thetford 2xx series fixed toilets (223, 263 etc.) are equipped with a separate pump system that takes the flushing water from the main water tank of the vehicle. The toilet bowl rotates 180º.

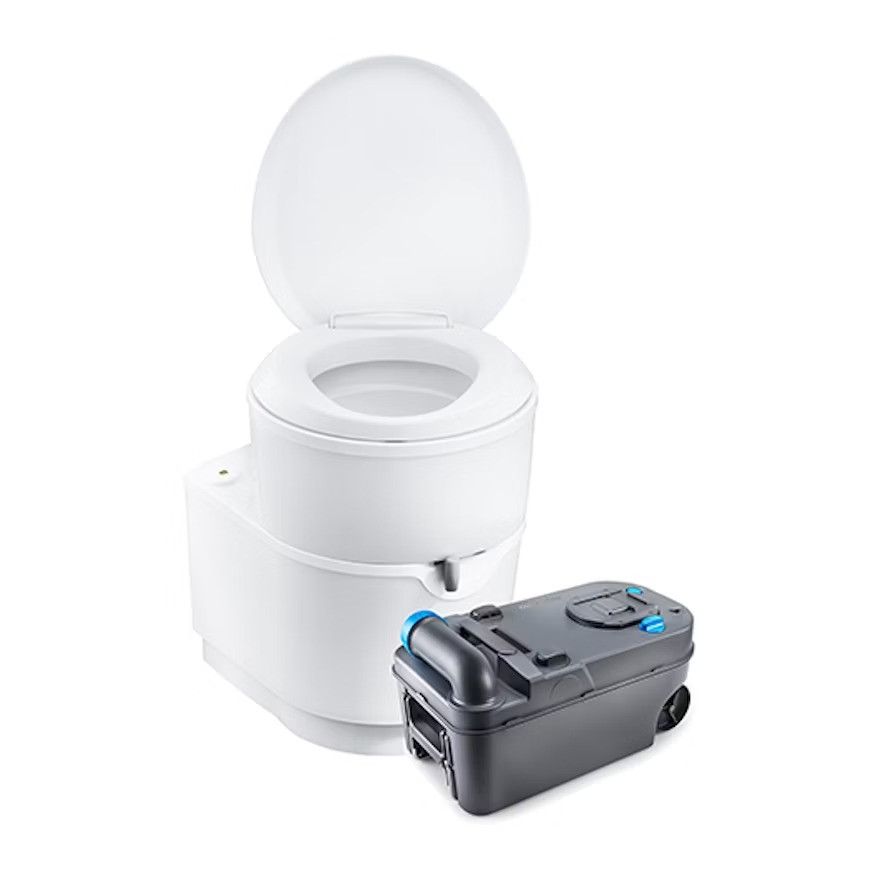

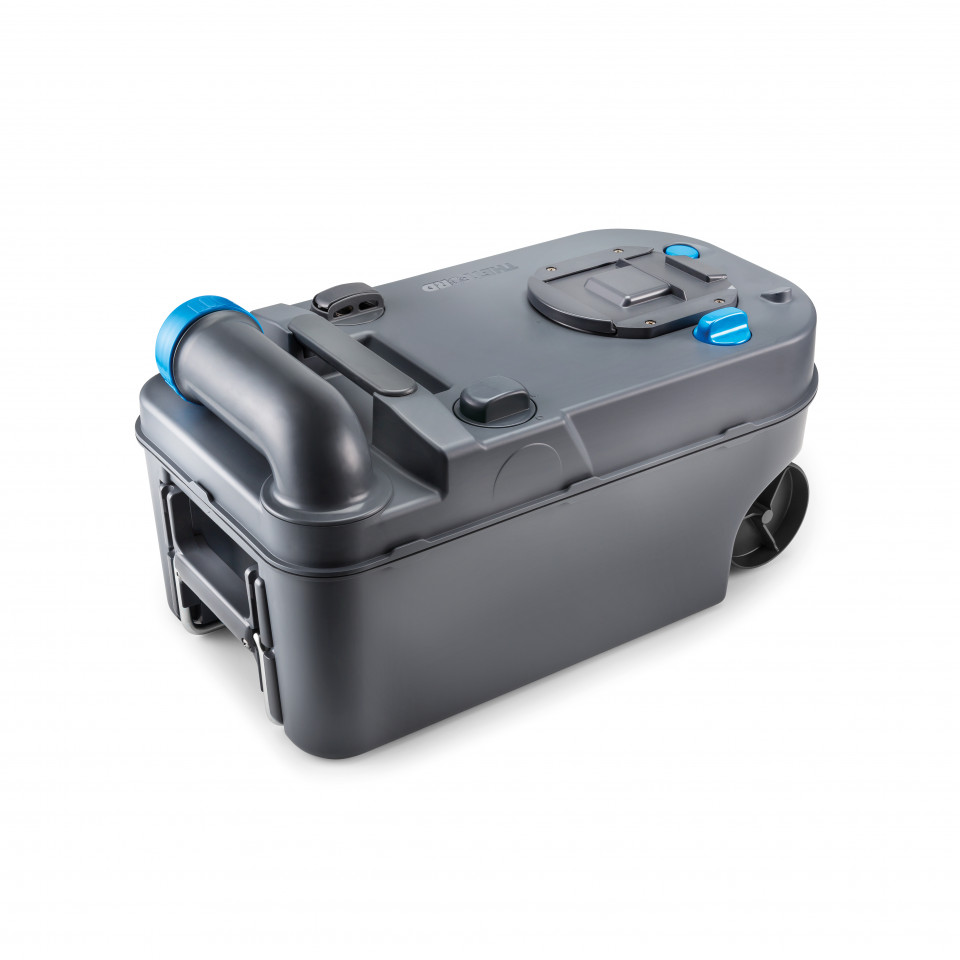

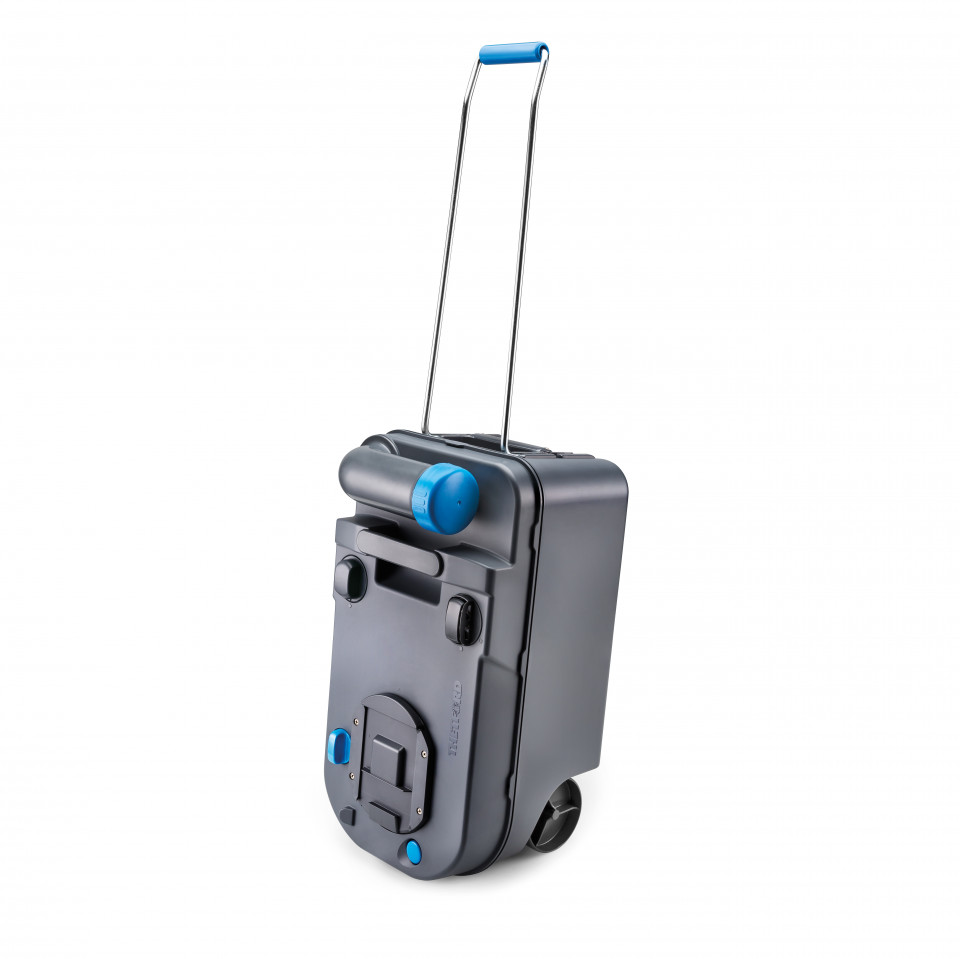

The toilet consists of two parts: a permanently installed toilet and a removable waste tank on the outside of the vehicle. A display indicates when to empty the tank. The residue tank is easily removed through a service hatch on the outside of the vehicle
(service door is not included and can be ordered separately here).

Variant C223-S is recessed into the side wall of the vehicle. The control panel must be mounted on the vehicle wall.

Variant C223-CS is mounted on the side wall of the vehicle.

Mounting instructions can be found here

Specifications:

• Waste tank capacity: 18l

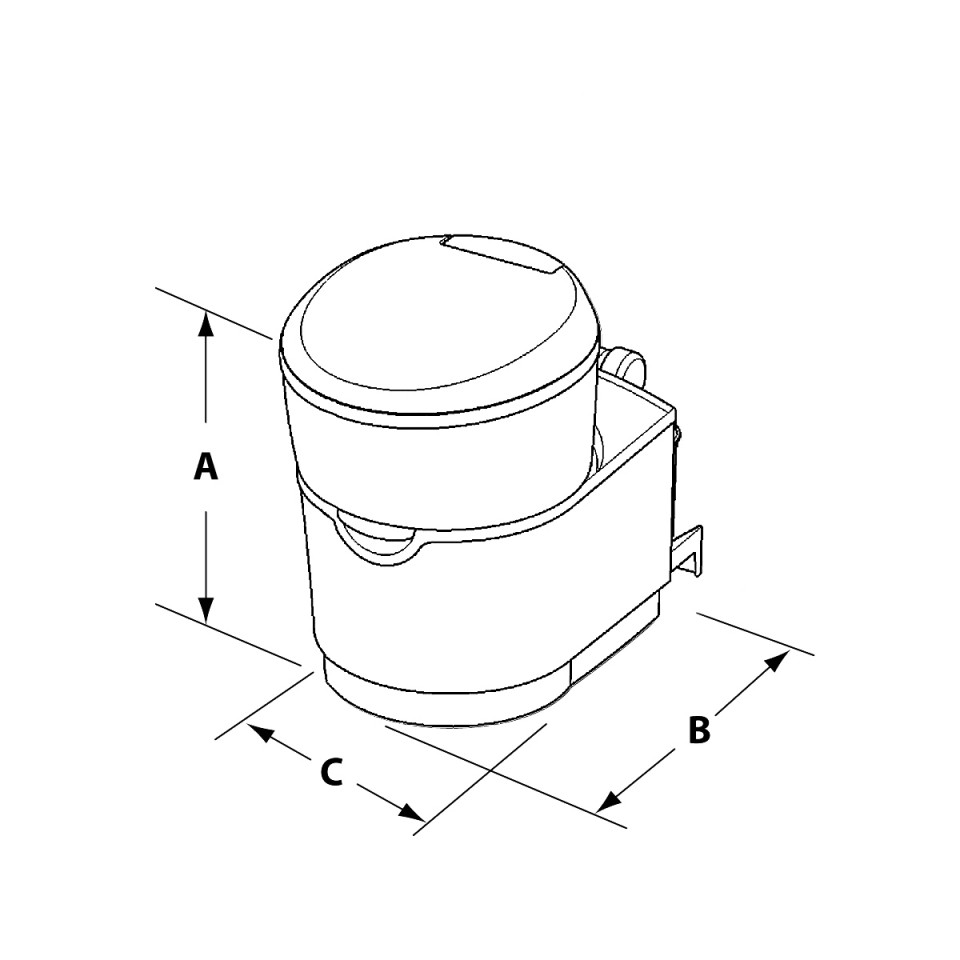

• Seat height (A): 49,2 cm

• Seat depth (B): 58 cm
• Maximum width (C): 36,5 cm
• Colour code residue bowl: blue
• Electric rinsing system with water intake from main tank
